- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HJ-12100
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1200 Wh
-
MOQ:
-
2 Pcs
-
Size:
-
330*170*215mm(L*W*H)
-
OEM/ODM:
-
Yes(Accepted)
-
Battery cell:
-
LIFEPO4 battery
-
Cycle life:
-
> 4000 Times
-
BMS:
-
built-in BMS
-
Certification:
-
CE MSDS UN38.3 RoHS
-
Operating Temperature:
-
Discharging:-20 C~60
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Solar Energy Storage Systems
-
Brand Name:
-
ALLITH/OEM
-
Model Number:
-
HJ-12100
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1200 Wh
-
MOQ:
-
2 Pcs
-
Size:
-
330*170*215mm(L*W*H)
-
OEM/ODM:
-
Yes(Accepted)
-
Battery cell:
-
LIFEPO4 battery
-
Cycle life:
-
> 4000 Times
-
BMS:
-
built-in BMS
-
Certification:
-
CE MSDS UN38.3 RoHS
-
Operating Temperature:
-
Discharging:-20 C~60
Specification

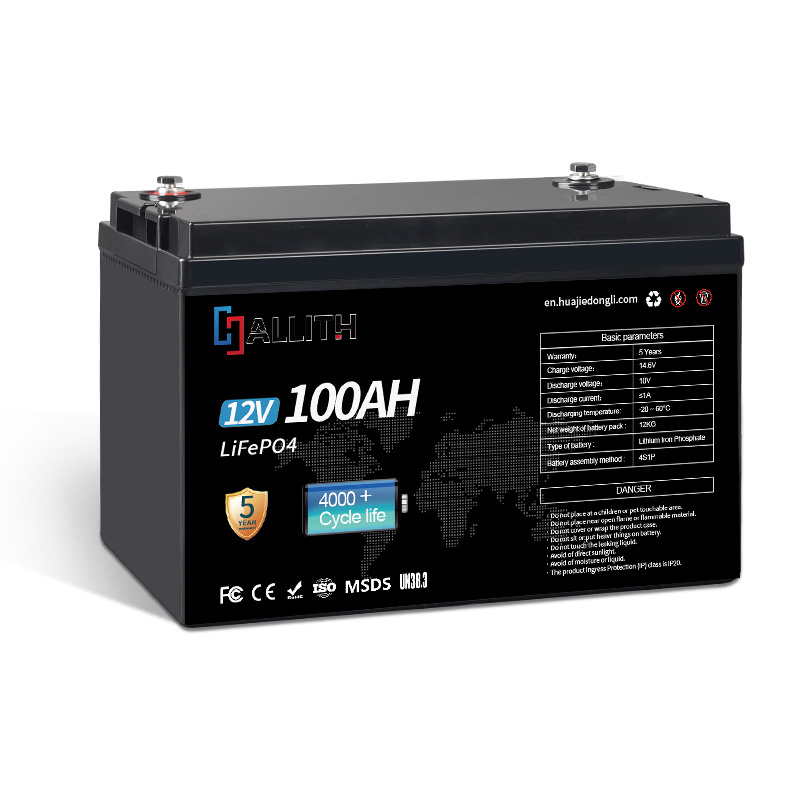

ALLITH Deep Cycle Rechargeable LiFePO4 Battery Pack
OEM 12V 24V 48V 51.2v 80V 960v Larger Lithium Iron Phosphate Battery Pack
OEM 24/50AH 100Ah 200ah 300ah 1000ah Higher Lithium Iron Phosphate Battery Pack
with Solar System BMS
|
Contents
|
HJ-12850
|
HJ-12100
|
HJ-12200
|
|||
|
Type of Battery
|
Lithium Iron Phosphate Battery
|
|
|
|||
|
Warranty/Cycle Life
|
Warranty 5 Years/4000 Cycle Times
|
|
|
|||
|
Charging
|
CC/CV
|
|
|
|||
|
Charging Cut-off Voltage
|
14.6V
|
|
|
|||
|
Charging Temperature
|
0~60℃
|
|
|
|||
|
Discharging Temperature
|
-20~60℃
|
-20~60℃
|
-20~60℃
|
|||
|
Battery Assembly Method
|
4S1P
|
4S1P
|
4S2P
|
|||
|
Discharge Cut-off Current
|
≤1A
|
200mA
|
200mA
|
|||
|
Discharge Cut-off Voltage
|
10V
|
10V
|
9.2V
|
|||
|
Maximum Continuous Charging current
|
50A
|
100A
|
100A
|
|||
|
Maximum Continuous Discharging Current
|
50A
|
100A
|
100A
|
|||
|
Enclosure Rating
|
IP54
|
IP56 or Customized
|
IP56 or Customized
|
|||
|
Input/Output Port Type
|
binding post
|
M8 or anderson or another bolt screw
|
M8 or anderson or another bolt screw
|
|||
|
Net Weight of Battery Pack
|
6.5Kg
|
12Kg
|
22Kg
|
|||
|
Enclosure Box Zize(L*W*H)
|
229*138*208mm
|
330*170*215mm
|
350*170*240mm
|
|||
|
Material of Shell
|
ABS
|
SPCC
|
SPCC
|
|||
|
Customizable
|
|
|
|
|||
|
Silkscreen LOGO
|
Laser Carving LOGO
|
Custom Power of Products
|
|
|||
|
Custom Label
|
|
Custom Color Box
|
Silk Screen Cartoon Box
|
|||
Product Advantage
Customizable
LED Display Can be Added
Bluetooth Can be Added
Communication Interface Can be Added (Support Series Parallel Connection)
Hot Products
Reasons for Replacing Lead- Acid Battery Pack with Lithium Iron Phosphate Battery Pack
⭐ The Relative Size is Half of The Weight of The Lead Acid Battery
⭐
Built in BMS to Prevent Overcharge, Over Discharge, Over Temperature Automatic Protection, Etc
⭐
Maintenance Free
⭐
It can Reduce Operating Costs
⭐
Give Users a High Return on Investment
⭐
Support Series Parallel Connection (51.2v)
⭐
It is The Same Size as Most Lead Acids and Can Be Replaced Directly.
Packing and Shipping
10Kwh Powerwall 5Kwh Powerwall 5Kw+5Kwh Energy System 10Kwh
Stacked Battery
$1500-1599 / Pcs $918 - 950 / Pcs $950- 1050 / Pcs $1600 - 1680 / Pcs
48V 200Ah LiFePO4 Battery 48V 100Ah LiFePO4 Battery Solar Energy Storage System Solar Energy Storage System
$1620-1700 / Pcs $820 - 980 / Pcs $0.4-0.6 / Watt $0.4-0.6 / Watt
FAQ
Q1.Do you have your own brand or support OEM/ODM services?
A1: Yes, Our Own brand is Allith,and we provide OEM/ODM services if you need.
Q2. How do your company ship the LiFePo4 battery packs?
A2: For sample order or small battery packs, we always ship by express through DHL, Fedex, UPS, TNT etc. If whole parcel over
100KG, we always ship by air or by sea, sea shipping is more cheaper. Please tell us where is your nearest airport name and sea
port name for check the best ship option for your order.
Q3. Can we put different LiFePO4 battery pack in parallel or series by yourself?
A3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1.Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2.Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3.Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself.It may cause danger and hurt the cycle life of battery.
Q4. Can we put different LiFePO4 battery pack in series by yourself?
A4: You could consider to buy big voltage from us directly. We don't really suggest out them in series by yourself, it will hurt the cycle life of the pack.
Q5. Does your battery pack include BMS? Can we use it for car?
A5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
A1: Yes, Our Own brand is Allith,and we provide OEM/ODM services if you need.
Q2. How do your company ship the LiFePo4 battery packs?
A2: For sample order or small battery packs, we always ship by express through DHL, Fedex, UPS, TNT etc. If whole parcel over
100KG, we always ship by air or by sea, sea shipping is more cheaper. Please tell us where is your nearest airport name and sea
port name for check the best ship option for your order.
Q3. Can we put different LiFePO4 battery pack in parallel or series by yourself?
A3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1.Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2.Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3.Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself.It may cause danger and hurt the cycle life of battery.
Q4. Can we put different LiFePO4 battery pack in series by yourself?
A4: You could consider to buy big voltage from us directly. We don't really suggest out them in series by yourself, it will hurt the cycle life of the pack.
Q5. Does your battery pack include BMS? Can we use it for car?
A5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
