Quick Details
-
Brand Name:
-
SAVING
-
Model Number:
-
DTZY1218
-
Accuracy Class:
-
Active level 1
-
Output Voltage:
-
220/380V
-
Operating Temperature:
-
-25~55 degree
-
Dimensions:
-
126x97x77mm
-
Name:
-
Din Rail Energy Cost Meter Three Phase Smart Energy Meter
-
Color:
-
White
-
Reference Voltage:
-
3X220/380V
-
Frequency:
-
50Hz
-
Current Specification:
-
3X1.5(6)A, 3X10(40)A, 3X20(80)A
-
Accuracy Level:
-
Active Level 1
-
Power Consumption:
-
Voltage Line: ≤1W, 5VA; Current Line: ≤1VA
-
Humidity Range:
-
40%~60%
-
Certificate:
-
ISO9001
-
Standard:
-
GB/T17215.321-2008
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-999999
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SAVING
-
Model Number:
-
DTZY1218
-
Accuracy Class:
-
Active level 1
-
Output Voltage:
-
220/380V
-
Operating Temperature:
-
-25~55 degree
-
Dimensions:
-
126x97x77mm
-
Name:
-
Din Rail Energy Cost Meter Three Phase Smart Energy Meter
-
Color:
-
White
-
Reference Voltage:
-
3X220/380V
-
Frequency:
-
50Hz
-
Current Specification:
-
3X1.5(6)A, 3X10(40)A, 3X20(80)A
-
Accuracy Level:
-
Active Level 1
-
Power Consumption:
-
Voltage Line: ≤1W, 5VA; Current Line: ≤1VA
-
Humidity Range:
-
40%~60%
-
Certificate:
-
ISO9001
-
Standard:
-
GB/T17215.321-2008
Jiangsu Saving Electronics Co.,Ltd. was established in August 2011, has
25 authorized patents
,
12 software Copyrights
, belongs to a national high-tech enterprise.The founder focused on energy metering, energy consumption monitoring overall solution design for
more than 20 years
, the core technology backbone and management cadres are senior experts in the industry for
more than 8 years
.Core products such as:
smart meter
,
guide rail smart meter
,
multi-functional digital meter
,
multi-user electricity meter
,
power information collection terminal
,
concentrator
,
power energy efficiency monitoring terminal
, etc., are independently developed and produced.
Product Introduction

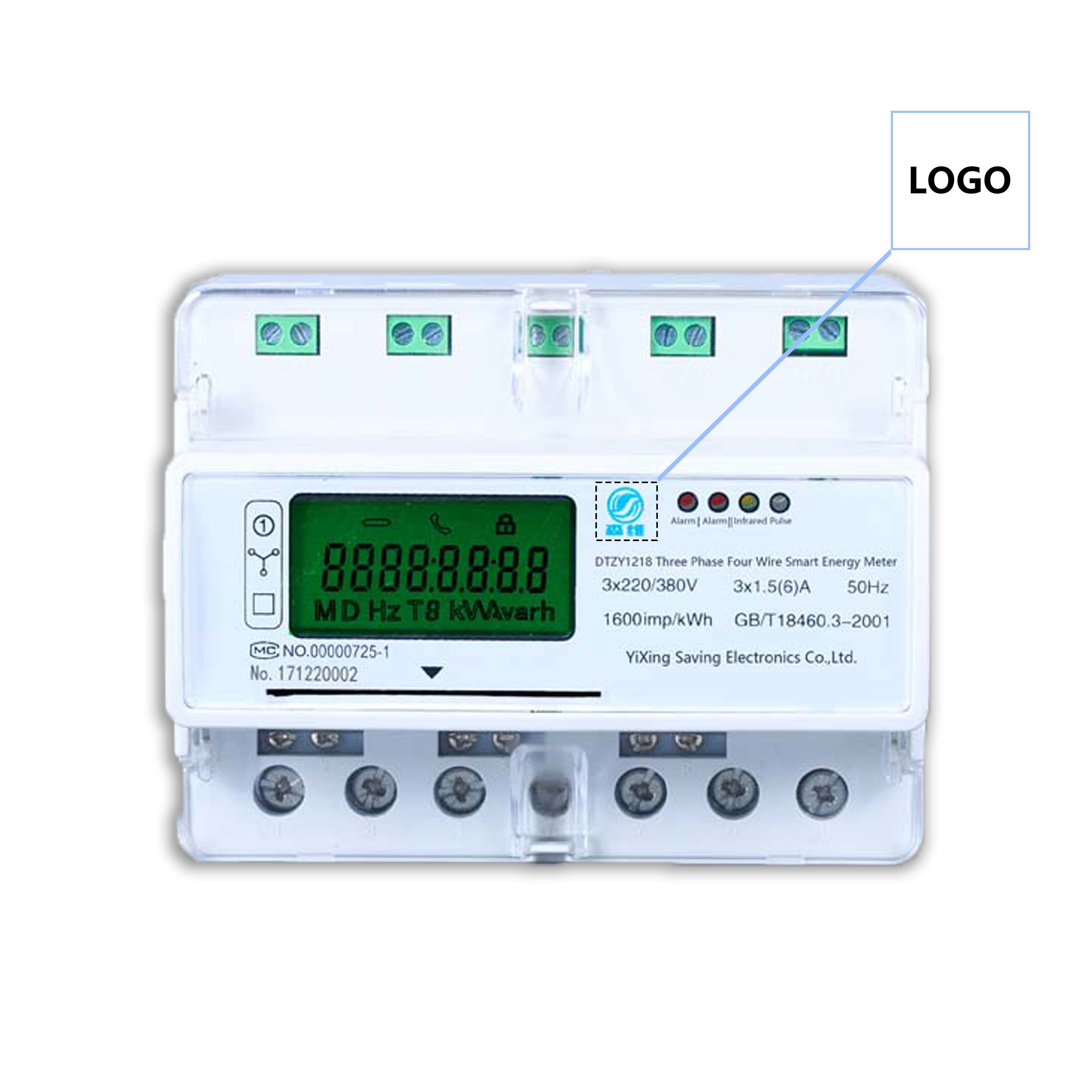

Din Rail Energy Cost Meter Three Phase Smart Energy Meter Electricity Power Meters (IC card)
is a new energy measurement product developed and produced by our company according to the technical specifications of GB/T17215.321-2008 and GB/T17215.323-2008. This product uses large-scale integrated circuits and SMT techniques, with functions such as electrical energy measurement, data processing, real-time monitoring, and information interaction.
Product Functions
1.Display with LCD display with wide viewing angle and high contrast
2.Communication method: RS485, infrared
3.Applicable place:community,hotel,shopping mall ,office building,school,property,etc
4.Measurement functions:multiply tariff ,sell electricity remotely
5.High precision measurement:positive/negative,active/reactive energy
6.Easy installation:Adopt guide rail installation,convenient installation,light volume
7.Component:high-quality components
8.Has the function of multiply tariff
9.The power-off switch can be built-in or external
Details Images
Product Paramenters
|
Reference Voltage
|
3 × 220 V / 380 V
|
|
|
|
|||
|
Current Specification
|
3×1.5（6）、3×5（60）、3×10（40）、3×20（80）A 、3×10（100）A
|
|
|
|
|||
|
Rated Frequency
|
50Hz
|
|
|
|
|||
|
Accuracy Level
|
Active Level 1
|
|
|
|
|||
|
Power Consumption
|
Voltage line: <=1.5W, 10VA; current line: <2VA
|
|
|
|
|||
|
Temperature Range
|
Working temperature range -25~55 degree,
extreme working temperature range -40~70 degree |
|
|
|
|||
|
Meter Constant(imp/kWh)
|
6400、400
|
|
|
|
|||
|
Humidity Range
|
40%～60%, working relative humidity be controlled within 95%
|
|
|
|
|||
Wire Connection Modes
Fix the electric meter to the guide rail, and connect the interface according to the wiring diagram. It is recommended to use copper wire or copper terminal.
The screws in the terminal box should be tightened to avoid burning due to poor contact or excessively thin wire.
Application
Office Environment
Shipping Options
We provide
all-round
services of
"pick up, transport and delivery" , and provide
multimodal transport
, from packaging to transport, check at each level to ensure the safety of goods and deliver them to customers in good condition.
Contact Information
FAQ
1. Q: What after-sales service is provided?
A: Usually, we provide
online technical services
, including product instructions, remote software debugging, and online video guidance. If needed,
we can go to customers' site
for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q:
Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
