1. Supporting role: The power tower can withstand the weight and tension of the transmission line, and disperse it to the foundation and the ground, so as to ensure the safe and stable operation of the transmission line. 2. Fixed function: The power tower can firmly fix the transmission line on the tower body to prevent the line from being blown by the wind, man-made damage and other reasons to fall off or break the line. 3. Insulation: The power tower is usually made of insulating materials to ensure the insulation performance of the transmission line. This can avoid the leakage of current and ensure the safety of the transmission line. 4. Stability: the height and structure of the power tower can resist the influence of adverse factors such as natural disasters to ensure the safe and stable operation of the transmission line.
- Product Details
- {{item.text}}
Quick Details
-
Height:
-
10M-100M
-
Suit for:
-
Electric Power Transmission
-
Shape:
-
Poiygonal or Conical
-
Power Capacity:
-
10kv-1000kv
-
Tolerance of the dimension:
-
According to client's requirement
-
Surface treatment:
-
Hot-dip-galvanized following ASTM123, or client'srequirement
-
Joint of Poles:
-
Slip joint, flanged connected
-
Standard:
-
GB/T19001-2016/1S09001:2015 standard
-
Length of per section:
-
Within 13M once forming
Quick Details
-
Brand Name:
-
dingliu
-
Model Number:
-
JT002, 220kv
-
Place of Origin:
-
Tianjin, China
-
Height:
-
10M-100M
-
Suit for:
-
Electric Power Transmission
-
Shape:
-
Poiygonal or Conical
-
Power Capacity:
-
10kv-1000kv
-
Tolerance of the dimension:
-
According to client's requirement
-
Surface treatment:
-
Hot-dip-galvanized following ASTM123, or client'srequirement
-
Joint of Poles:
-
Slip joint, flanged connected
-
Standard:
-
GB/T19001-2016/1S09001:2015 standard
-
Length of per section:
-
Within 13M once forming
Product Overview

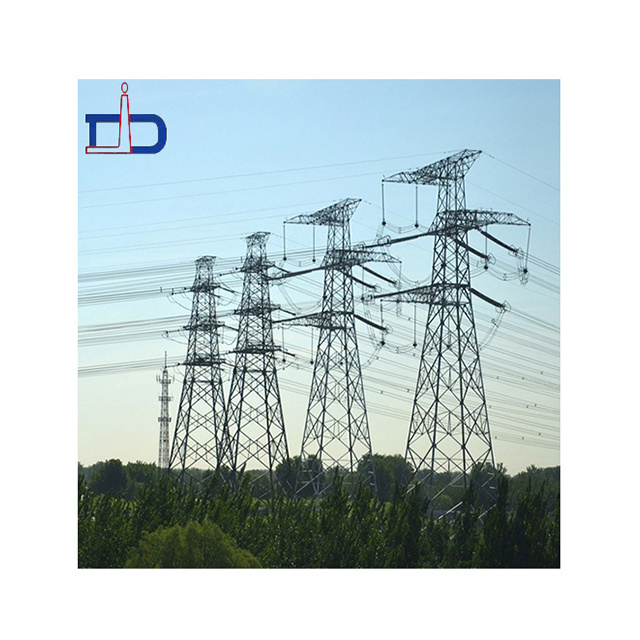

Power tower
Power tower is an indispensable part of power system, its classification and characteristics have an important impact on the safe and stable operation of power system. In the planning and design of the power system, the appropriate type and structure of the power tower should be selected according to the actual situation to ensure the safety and reliability of the transmission line.
FEATURES AT A GLANCE
Angle tower
steel tube tower
steel tube tower
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Height
|
From 10M-100M or according to client's requirement
|
|
2
|
Suit for
|
Electric Power Transmission and Distribution
|
|
3
|
Shape
|
Polygonal or Conical
|
|
4
|
Material
|
Normally Q235B/355B/420B/420C...Yeild Strength≥235MPa
|
|
5
|
|
Q355B,Yeild Strength≥345MPa
|
|
6
|
|
As well as Hot Rolled coil from ASTM572,GR65,GR50,SS400
|
|
7
|
Power Capacity
|
10kV to 1000kV
|
|
8
|
Tolerance of the dimension
|
According to client's requirement
|
|
9
|
Surface treatment
|
Hot-dip-
any other standard by client's requirement |
|
10
|
Joint of Poles
|
Slip joint,flanged connected
|
|
11
|
Standard
|
SOI9001:2015，Products are processed in strict accordance with GB/T2694-2018, DL/T646-2012, YD/T757-2013 and other national standards
|
|
12
|
Length of per section
|
Within 13M once forming
|
|
13
|
Welding Standard
|
AWS(American Welding Society)D 1.1
|
|
14
|
Production Process
|
Raw material test-cutting-bending-welding-dimension verify-flange welding-
hole drilling-sample assemble-surface clean- galvanization or power coating /painting-recalibration-packages |
|
15
|
Packages
|
according to client's requirement
|
|
16
|
Life Period
|
lifetime warranty,it is according to installing environment
|
