Quick Details
-
Max. Loading Capacity:
-
Customized
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yeto
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
15 kW
-
Warranty of core components:
-
2Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Emulsion
-
Usage:
-
Mixing Paste Proucts
-
mixer speed:
-
0-63rpm
-
homogenizer speed:
-
0-3500rpm
-
Application scope:
-
cosmetic cream ,lotion,gel
-
heating mothed:
-
electric or steam heating
-
Capacity:
-
100-5000L
Quick Details
-
Barrel Volume (L):
-
200
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2880 r.p.m
-
Max. Loading Capacity:
-
Customized
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yeto
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
15 kW
-
Warranty of core components:
-
2Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Emulsion
-
Usage:
-
Mixing Paste Proucts
-
mixer speed:
-
0-63rpm
-
homogenizer speed:
-
0-3500rpm
-
Application scope:
-
cosmetic cream ,lotion,gel
-
heating mothed:
-
electric or steam heating
-
Capacity:
-
100-5000L

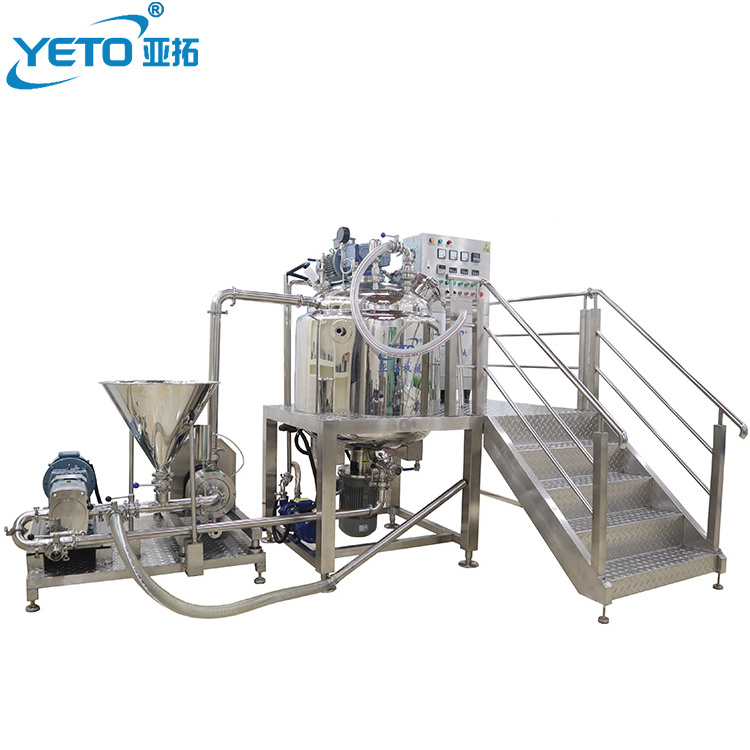

This machine is used for cosmetic cream and lotions,The vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
What is vacuum mixer homogenizer ?
These machines are generally called mixer homogenizers or vacuum mixer emulsifiers. They are mostly used for batch production of ointments , creams, suspensions, gels, toothpaste and similar products, with operations that include ingredient loading , mixing and blending with heating and cooling steps, as well as any necessary deaeration of the mixer, according to pre-set operating standards.
What is vacuum emulsification plant made of?
The vacuum emulsification equipment is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc.
The main emulsification mixer consists of a high speed rotor stator homogenizer and counter-rotating centre agitator and wall scraper. The homogenizer, centre agitator and wall scraper are all mounted from the top of the cover.
The oil and water phase mixers have exactly the same construction. There’s a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
|
No. |
Item |
Technical parameter |
Remark |
|
1.1 |
volume: |
Design volume : 350 L;working capacity: 3 00L; |
Load factor: 0.8 |
|
1.2 |
Heating method: |
Steam heating , water cooling |
Rated pressure: 0.2Mpa |
|
1.3 |
Structure: |
3 layers, the cover can be lifted ,dumping system, the blender is bidirectional ,Top homogenizing; |
|
|
1.4 |
The material of the tank: |
The material contact part:SUS316L;Thickness: 6 mm; |
Imported |
|
|
|
Shell :SUS304, thickness : 3 mm |
Heat preservation: Aluminum silicate |
|
1.5 |
Cover craft: |
Material filer, Vacuum pressure gauge, Vacuum removing valve, Vacuum port, Positive pressure inlet, clean ball, L ight for view , View window, spice inlet , |
No dead corner s, the pipe fittings and valves meet the GMP requirement |
|
1.6 |
Blending method: |
Bidirectional blending, and with scraper |
Material :SUS316L |
|
|
Blender: |
Blending power : 4 KW,speed :0~63r/min; |
China Motor |
|
1.7 |
Homogenizing method : |
Top homogenizing, Internal recycle type homogenizer; China frequency converter |
Material :SUS316L |
|
|
Homogenizer: |
Homogenizing power: 11 KW,Speed :0~3600r/min |
China Motor |
|
|
Machining: |
Rotor and stator with wire-electrode cutting and mirror polish |
|
|
1.8 |
Sealing : |
Germany mechanical seal,
|
|
|
1.9 |
Polishing : |
300EMSH(Sanita tion grade),Meet GMP requirement |
320U |
Feature:
1.high sanitary standard manufacturing
2.internal surface mirror polished
3.agitation group consisting of two slow agitators and one fast agitator
4.double speed slow agitators(stepless speed variation as optional)
5.double speed fast agitators(stepless speed variation as optional)
6.mechanical seal of agitation groups
7.lifting cover system
8.tilting vessel
9.body and agitators made of SS AISI 316L
10.internal pressurization for discharge and inertization
11.SS AISI 304jacket
12.cover for thermal insulation made of SS tank in tank13.vacuum group
14.heating station
15.sterilizing filter installed on the vacuum-breaking device
16.cleaning balls
17.embedded CIP group
18.product temperature check by means of Pt 100 probe,special sheath ,close to the side
19.buttons or PLC controlled process functions
20.electronic weighing system.
