Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Wiland
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.5ms-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
1.8mm
-
Dimensions:
-
960*550*750mm
-
Weight (KG):
-
170 KG
-
Marketing Type:
-
Hot Sale Product 2023
-
Product name:
-
High Power Laser Welding Machine
-
Output Laser Power:
-
1000w ~ 3000W
-
Working MODE:
-
continuous/modulated pulse
-
Welding speed:
-
0-120mm/s
-
Chiller:
-
industrial thermostatic
-
Working thickness:
-
15-35℃,humidity<70% non-condensing
-
Welding thickness:
-
0.5-8mm
-
Gap requirements:
-
≤0.5mm
-
Operating Voltage:
-
220V 50HZ
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
Quick Details
-
Max. Output Power:
-
3000W
-
Use:
-
welding metal
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Wiland
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.5ms-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
1.8mm
-
Dimensions:
-
960*550*750mm
-
Weight (KG):
-
170 KG
-
Marketing Type:
-
Hot Sale Product 2023
-
Product name:
-
High Power Laser Welding Machine
-
Output Laser Power:
-
1000w ~ 3000W
-
Working MODE:
-
continuous/modulated pulse
-
Welding speed:
-
0-120mm/s
-
Chiller:
-
industrial thermostatic
-
Working thickness:
-
15-35℃,humidity<70% non-condensing
-
Welding thickness:
-
0.5-8mm
-
Gap requirements:
-
≤0.5mm
-
Operating Voltage:
-
220V 50HZ
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )

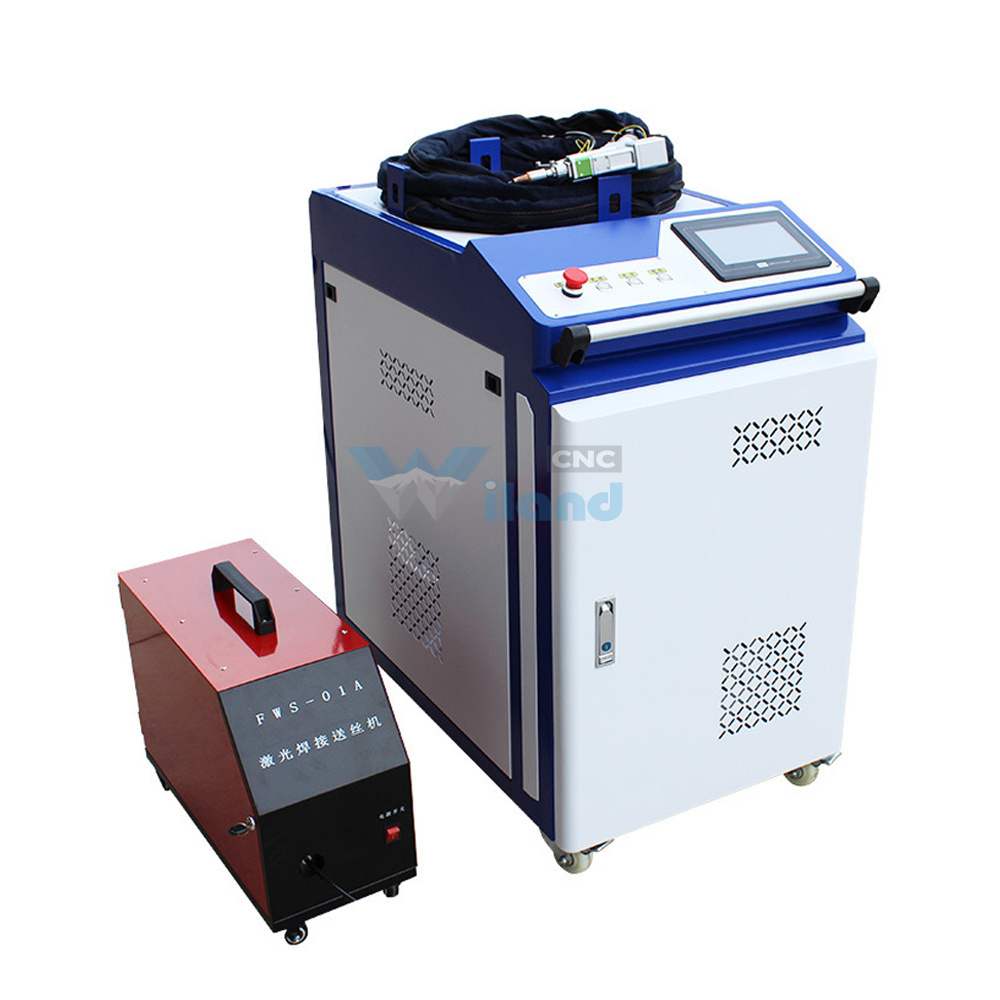

High Power Robotic Automatic Handheld Small Portable 1kw 2kw 3kw Laser Welder Welding Machine Price For Sale Portable
All Real Parts , Factory Direct Supply!!!
Free Training Courses , Good After Sale Service!!!
Inquiry Us: +8617663732936
Free Training Courses , Good After Sale Service!!!
Inquiry Us: +8617663732936
Product Description
fiber laser welding machine Features
1.high precision and easy operation,small size，automation
2.High electro-optic conversionefficiency, low energy consumption
3.Smaller heat-affected zone and thermal deformation
4.Stable output power, can work ingreenhouse or special conditions
Specification
|
Interface type
|
QBH
|
|
Power range
|
Power range
|
|
Laser wavelength
|
1064-1080mm
|
|
Input power
|
220V/380V
|
|
Frequency adjustment
|
1-45Hz
|
|
Duty cycle adjustment
|
0-100%
|
|
Welding depth
|
0.5-7mm (depending on material)
|
|
Gas proportional valve regulation
|
0-100%
|
|
Spot diameter
|
0.2-5 mm
|
|
Head weight
|
0.9kg
|
|
Welding speed
|
0-150 (mm/s)
|
|
Weld requirements
|
≤2.5mm
|
|
Dimensions
|
1090*600*1130 mm
|
Details Images
Samples
Laser welding machines are widely used in mobile communications, electronic components, glasses and watches, jewelry, hardware products, precision equipment, auto parts, craft gifts and other industries.
Applicable Material
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for avariety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copperand so on.
|
Stainless Steel
|
Laser Source（W）
|
Power
（W）
|
Speed
（mm/s）
|
Rate
（kHz）
|
Focus
（mm）
|
|
1mm
|
500
|
260
|
800
|
5
|
+2
|
|
1.5mm
|
500
|
340
|
750
|
5
|
+2
|
|
2mm
|
1000
|
600
|
800
|
5
|
+2
|
|
2.5mm
|
1000
|
730
|
700
|
5
|
+2
|
|
3mm
|
1000
|
860
|
720
|
5
|
+3
|
Why Choose Us
|
1
|
Laser Welder
|
1PCS
|
Standard
|
|
2
|
Laser welding gun
|
1PCS
|
Standard
|
|
3
|
Protective lens
|
5PCS
|
Standard
|
|
4
|
Nozzle
|
6PCS
|
Standard
|
|
5
|
Wire Feeder
|
1PCS
|
Standard
|
|
6
|
Protective Goggles
|
1PCS
|
Standard
|
|
7
|
QBH Protective case
|
1PCS
|
Standard
|
|
8
|
Key
|
1PCS
|
Standard
|
Outside package and Inner package
① Confirm whether the machine, model, quantity, quality, performance, appearance, etc. are consistent with the order and list.
②Securely pack the accessories sent with the machine, and place the machine on the 10 cm standard card corner.
③ In order to prevent water vapor during transportation, we will wrap a layer of waterproof film.
④ In order to prevent scratching the machine and collision during transportation, we will wrap a layer of pearl cotton.
⑤ We will tie the straps to fix the machine and wrap the waterproof membrane again.
⑥ The thickness of the outermost wooden box is more than 1cm, which meets the export standard, and is safe in transportation.
③ In order to prevent water vapor during transportation, we will wrap a layer of waterproof film.
④ In order to prevent scratching the machine and collision during transportation, we will wrap a layer of pearl cotton.
⑤ We will tie the straps to fix the machine and wrap the waterproof membrane again.
⑥ The thickness of the outermost wooden box is more than 1cm, which meets the export standard, and is safe in transportation.
We are a manufacturer with strict quality.
We can offer good prices and long term cooperation.
We have after sales service and technical assistance.
We have many options parts and support custom products color & style.
