Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
2400 kg
-
Product name:
-

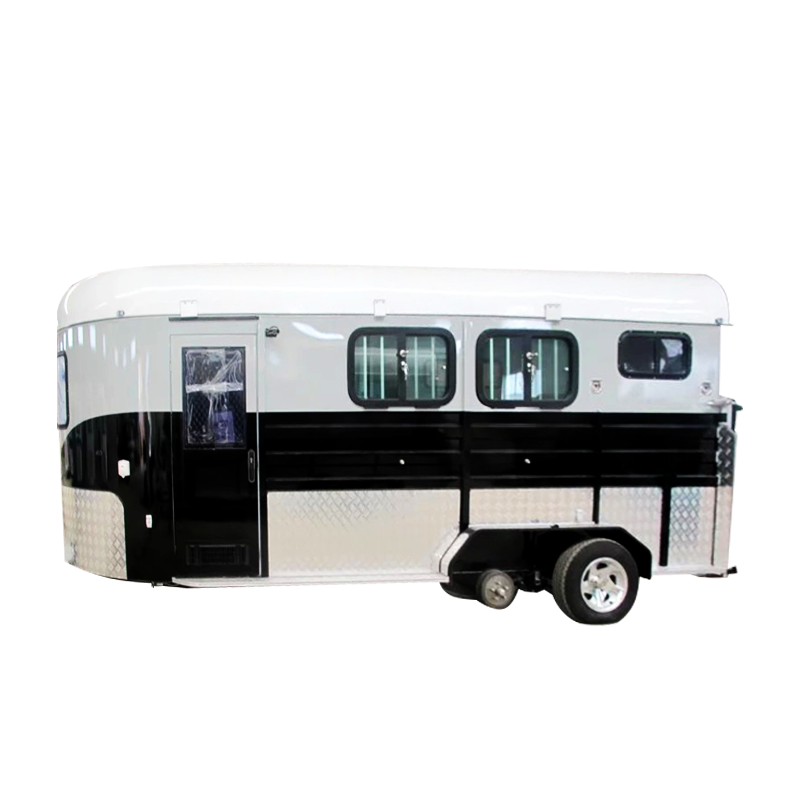

Two-horse tilt load horse trailer
-
Model:
-
2HAL-D
-
External dimensions:
-
4970*2230*2590mm
-
Body size:
-
4120*1980*2230mm
-
Internal dimensions:
-
4095*1930*2155mm
-
Total maximum load:
-
2400KG
-
Wheels:
-
195/70R15C
-
Aluminum trim panel:
-
1600*1220mm
-
Body weight:
-
1250kgs
-
Maximum load weight:
-
1800kgs
Quick Details
-
Application:
-
architecture
-
Rated Loading Capacity:
-
1800kg
-
Max. Lifting Height:
-
12M
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
2400 kg
-
Product name:
-
Two-horse tilt load horse trailer
-
Model:
-
2HAL-D
-
External dimensions:
-
4970*2230*2590mm
-
Body size:
-
4120*1980*2230mm
-
Internal dimensions:
-
4095*1930*2155mm
-
Total maximum load:
-
2400KG
-
Wheels:
-
195/70R15C
-
Aluminum trim panel:
-
1600*1220mm
-
Body weight:
-
1250kgs
-
Maximum load weight:
-
1800kgs
Product introduction: Jinan Fei Li Xi Machinery Equipment Co., Ltd, a professional manufacturing company with ten years' experience in horse trailer production. In the production process of horse carriage, our company strictly abide by the Australian industry standards. Now the main products are: horse carriage, gooseneck carriage, travel carriage, dog trailer, fast food carriage, etc.; in addition, we can develop customized according to the special requirements of customers. (Can be designed and made according to user requirements)
|
Model
|
2HAL-D
|
Maximum working height m
|
10
|
|
External dimensions
|
4970*2230*2590mm
|
Body size
|
4120*1980*2230mm
|
|
Internal dimensions
|
4095*1930*2155mm
|
Total maximum load
|
2400KG
|
|
Rated horse load
|
2 horses
|
Wheels
|
195/70R15C
|
|
Minimum height of platform m
|
50*50 solid square axles
|
Aluminum trim panel
|
1600*1220mm
|
|
Side door
|
1650*600mm
|
Body weight
|
1250kgs
|
|
Maximum load weight
|
1800kgs
|
name
|
Two-horse tilt load horse trailer
|
Technical parameters.
Number of transported horses:2 horses External dimensions: 4970*2230*2590mm Body size: 4120*1980*2230mm
Internal dimensions: 4095*1930*2155mm Total maximum load: 2400KG
Model: 2HAL-D, 2 horse tilt load horse trailer luxury models
Body: galvanized steel plate welded structure + galvanized steel pipe skeleton
Roof: 4mm gelcoat fiberglass
Floor: 18 mm waterproof plywood + 9 mm thick non-slip high-quality rubber sheet Side wall: plywood + 6mm thick high quality rubber sheet
Brake: electromagnetic drum brake, rear axle with brake Connector: 50 mm with handbrake
Rated horse load : 2 horses
Electrical plug: 7-prong flat plug or 7-prong round plug
Wheels: 195/70R15C, 4 + 1 spare tire, iron rims with 5 or 6 holes Suspension system: 6 spring steel plates, 4 sets
Axle: 2 50*50 solid square axles
Rear flap door: plywood + new anti-slip rubber sheet, 1600*1220mm Aluminum trim panel: front surround and wheel cover
Side door: 1 1650*600mm Side tool box: 1
Guardrail: galvanized plastic spraying plus high quality PVC soft padding tailgate guardrail
Spring tethering hook: 2 inside the car, 2 outside the car
Window: 1 front window of aluminum alloy with plastic spraying, 4 side windows of aluminum alloy with plastic spraying
Body weight: 1250kgs Maximum load weight: 1800kgs
Horse protection area: 2500*700mm
*10years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square metersAerial lift platform machine factory
*Jinan Felici Machinery Equipment Co., Ltd.
Jinan Felici Machinery Equipment Co., Ltd. is one of the famous and big manufacturers of Aerial lift platform。
Since its inception in 2014, and after many years of development and growth, the company is now playing a leading role in Aerial lift platform machinery inChina Jinan Felici Machinery Equipment Co., Ltd has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About Aerial lift platform machines, we are professional and have full set certifcates.For every Aerial lift platform, we have serious quality control for every machine and every parts before it leaves our factory.
Workers shipped machines in the rain just to let customers receive our machines on time. Integrity has always been the reputation of our company.
The perfect after-sales team has always been our strongest backing, making our after-sales service more perfect.
