Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANHONG LASER
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1500 KG
-
Product name:
-

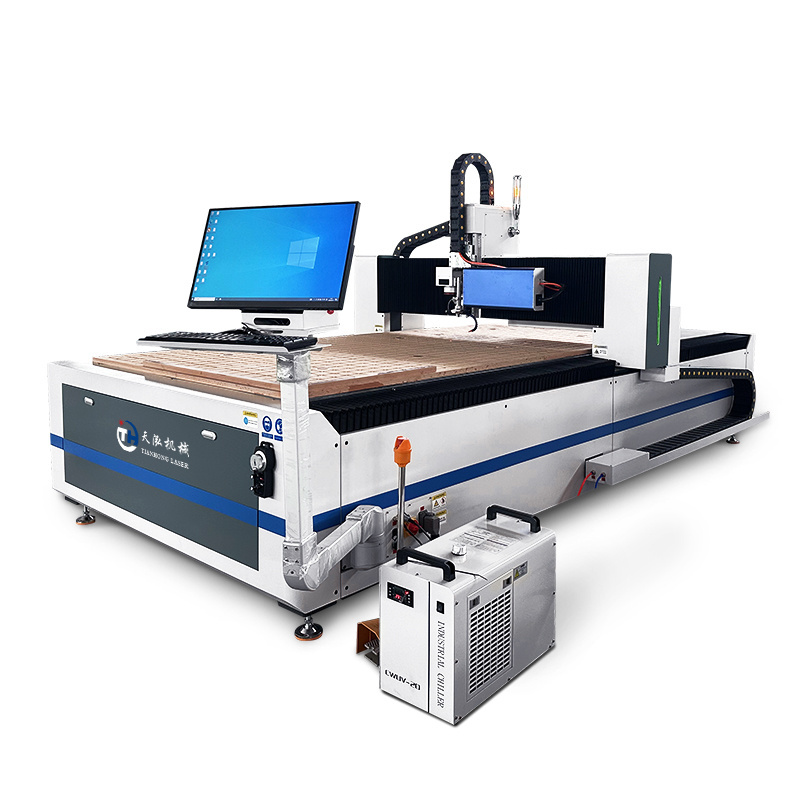

Large format mirror laser sandblasting machine
-
Laser Power:
-
100W/120W/180W/200W/250W
-
Laser source:
-
GZ Mopa/ORION/JPT
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-10000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
Quick Details
-
Engraving Area:
-
1300*2500mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
8000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANHONG LASER
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1500 KG
-
Product name:
-
Large format mirror laser sandblasting machine
-
Laser Power:
-
100W/120W/180W/200W/250W
-
Laser source:
-
GZ Mopa/ORION/JPT
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-10000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
Product Description
|
Model
|
TH-F
|
|
|
|
|||
|
Working Area
|
1300x2500/1500x3000mm/2000x3000mm working area(Support customized)
|
|
|
|
|||
|
Laser Power
|
100w/120w/180w/200w(optional）
|
|
|
|
|||
|
Wavelength
|
1064nm
|
|
|
|
|||
|
Mechanical repeatability accuracy
|
≤±0.25mm
|
|
|
|
|||
|
Laser repeat positioning accuracy
|
≤±0.002mm
|
|
|
|
|||
|
Cooling Type
|
Water-Cooled
|
|
|
|
|||
|
Indicate Light
|
Double red light
|
|
|
|
|||
|
Marking Speed
|
≤7000mm/s
|
|
|
|
|||
|
Machine System
|
Taiwan System
|
|
|
|
|||
|
Computer with system
|
Microsoft Windows 98、2000、xp、win7 32 bits English Version Operation System
|
|
|
|
|||
|
User Interface
|
CNC computer interaction interface
|
|
|
|
|||
|
Software
|
AutoCAD、CorelDRAW、Type3、Ucancam,etc vector design software
|
|
|
|
|||
|
Marking Format
|
DXF、PLT
|
|
|
|
|||
|
Software Supported Format
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
|
|
|||
|
Working Voltage
|
AC190-240V,50-60Hz
|
|
|
|
|||
|
Laser Model Life
|
>100000hours
|
|
|
|
|||
|
Machine Size & Weight
|
4050*2270*2100MM & 1600KGS
|
|
|
|
|||
Our Advantages
Professional supporting laser control and processing software
High-precision
Taiwan professional laser control system
, compatible with AUTO CAD and other drawing software; with automatic correction function to ensure scanning accuracy.
specially for large size splice marking.
It will divide the marking file equalization with the 200mm*200mm, after first area etching, the machine will continue to etch the next marking area automatically.
Imported servo motor and drivers
Servo motors
are used in closed-loop motion control systems where angular position, speed and torque can be very accurately controlled.
High Quality JPT/GZ/ORION Mopa Laser Source Option
Mopa fiber laser source
guarantees high-quality beam quality, and the marking effect is very delicate. With the stable slide rail design, it is especially suitable for large-format seamless image marking.T
he uselife can reach 100,000 hours, and the machine can be used for 8-10 years and no consumables.
PVC adsorption working table
Made of high-density PVC board. (Flatness ≤±0.40mm/m)
X,Y,Z: High Precision Linear Guide TAIWAN CSK
1)Support and guide moving parts, and do reciprocating linear movement in a given direction.
2)Small conflict coefficient of guide, high walking accuracy, suitable for high-speed movement, can bear up, down, left and right direction force, good interchangeability
Samples
Applicable Industries/ Applicable Materials
(1) The large-format laser marking machine is a new high-speed, high-precision mirror stripping ,sandblasting,drilling glass equipment developed according to the needs of the current smart mirror glass industry; (2)This machine is not only suitable for architectural glass, automotive glass, furniture glass, craft glass, decorative glass, The paint and mirror removal process in the cabinet glass smart mirror industry is also suitable for surface marking on most plastics and stainless steel, aluminum oxide, copper and other alloy materials.
Packing&Shipping
1. Our wooden case is after fumigation treatment.
2. Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Company Introduction
1--Jinan Tianhong Mechanical Equipment Co.,Ltd is a professional manufacturer focusing on researching,producing various CNC machines with our independent intellectual property.
2--The company has independent intellectual property rights of the "Tianhong Laser" machinery brand, product manufacturers are good selection of accessories pay close attention to assembly technology in production,to ensure the stability of product quality. In the practice of Customer oriented service concept at the same time, continue sharpen enhance their professional level, in order to achieve the ambitious goal of becoming a first-class professional industry company.
3--Established in 2016,we have a professional technical team of unity skill and strong sense of responsibility,which is also our unique advantage.we create a set of precise of and elegant engraving and cutting skills with modern high-tech means and advanced digital technology.
4--We are specialized in providing solution for global customers with quality products and efficient services. "High Quality, Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia.
After Sales Service
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TIanhong Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
FAQ
Q1: How to get the most suitable machine and best price?
A1: Please tell me what's material you want to cutting or engraving? what's MAX size of marking material? Then we will recommend
the most suitable model and the best price for you.
Q2: Does your company accept the customized offer, we have a special need.
A2: Tianhong is a company that focuses on research and manufacture of modular CNC machines. We have very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have a certain amount of needs.
Q3: What are your methods of transportation?
A3:For most countries, we will transport our machine by Sea, as for inland countries, we may use railway or highway transportation.
Q4: If the machine is out-of-warranty, how to charge the cost of accessories?
A4:For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
Q5:Delivery terms
A5:Generally it will be be delivery within 15-20 working days after get the payment.
