Quick Details
-
Charger:
-
Included
-
Battery:
-
6 x 8V Quality lead-acid battery
-
Controller:
-
PMSM
-
Brand:
-
ALWAYZ
-
Brakes:
-
Hydraulic Brake
-
Place of origin:
-
CHINA -SUZHOU
Quick Details
-
Tire Size:
-
205/50-10
-
Dimension:
-
2350X1180X1800
-
Motor:
-
5KW PMSM motor
-
Charger:
-
Included
-
Battery:
-
6 x 8V Quality lead-acid battery
-
Controller:
-
PMSM
-
Brand:
-
ALWAYZ
-
Brakes:
-
Hydraulic Brake
-
Place of origin:
-
CHINA -SUZHOU

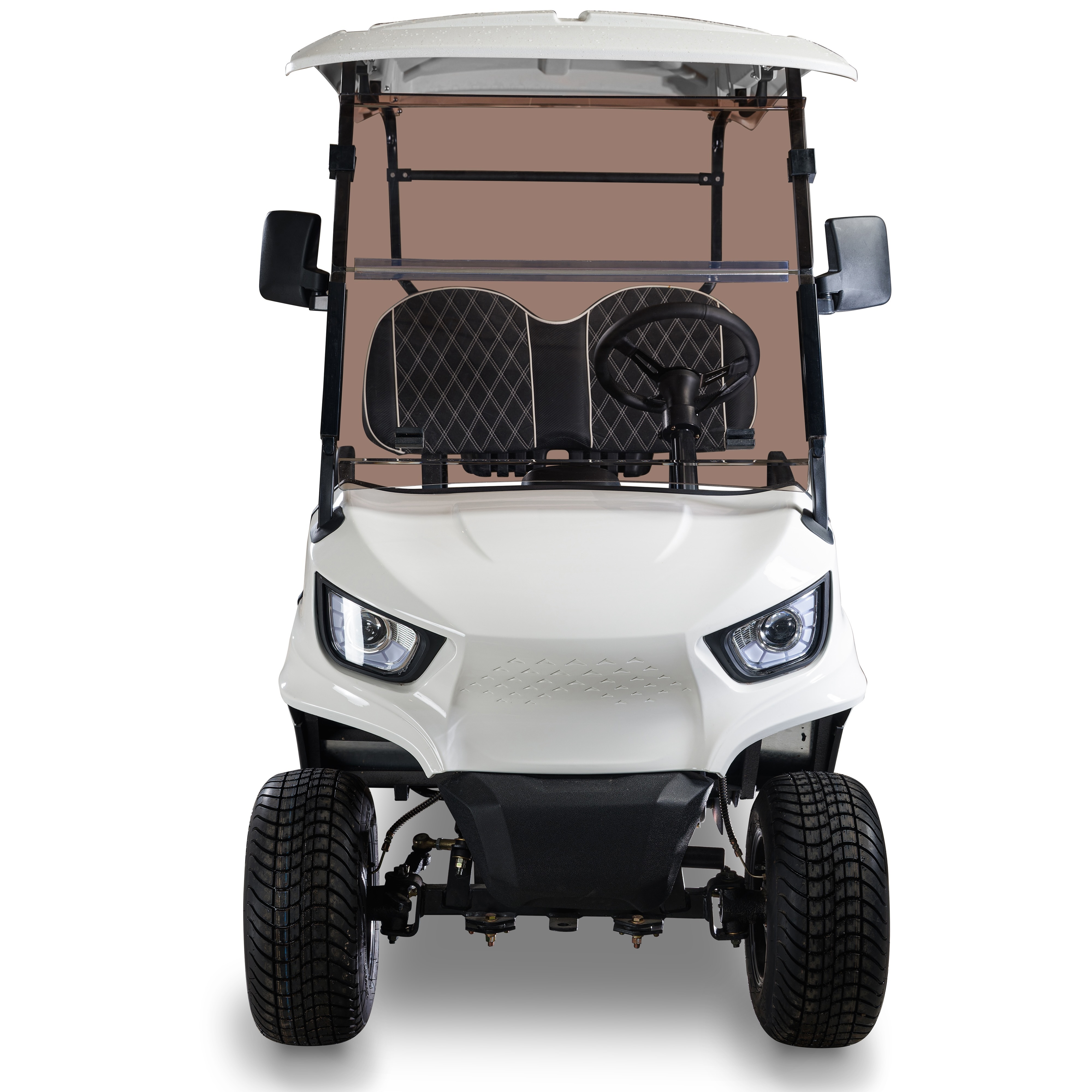

| 2-seater Electric Golf Buggy | |
| Vehicle model | AW2029K |
| Main Specifications | |
| System Voltage | 48V |
| DC or AC or PMSM | PMSM |
| Battery | 6pcs quality lead-acid batteries |
| Motor | 7KW PMSM |
| Controller | PMSM |
| Passenger capacity | 2 |
| Max. range (loaded) subject to running on flat road at a speed of 20km/h (km) | 70km @ 20km/h, fully loaded, on ground-level road |
| Max. speed @12.49:1 gear ratio | 40KM/H(adjustable) |
| Minimum turning radius (m) | 3.5 |
| Max. climbing ability (loaded) | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight | 270kgs |
| Net weight | 410kgs |
| Overall dimensions (mm) | 2350X1180X1800 |
| Other specifications | |
| Frame | Welded steel framework to be treated in dipping (phosphate)+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | fiberglass or plastic |
| Windshield | Windshield, hinged |
| Large Seats: | |
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | plastic |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Side trim | Aluminum |
| Score card holder | on steering wheel |
| Towing bracket | on front of golf car |
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), horn. |
| Reversing alarm | \ |
| Charger | on-board charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio12.49:1 |
| Integrated, Gear ratio10.25:1 | |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Company profile
Alwayszev is a leading company focus on R&D and Manufacturing of Low-speed electric vehicles which include Golf Car,Sightseeing Bus,Passengers Bus,Fire engine Car;Utility Car and various customized electric Vehicles,etc.
We have 2 factories, one is in Suzhou. The below is our Chuzhou factory which covers 15,000 square meters.It has
annual production capacity of 50,000 units vehicles.
Certifications
Advantages
1) Controller:
We use PMSM controller.
2) Motor:
We use 5KW PMSM motor which is designed to work with above controller. Compared to AC controller and motor, the advantage of our PMSM controller and motor includes High efficiency (means longer range), High Speed, Big torque, Low temperature rise.
3) Rear axle:
We use the best rear axle in the market which has been accepted by many American golf cart companies.
4) Battery:
We use the best battery in China which makes the battery for the military.
5. Dashboard of new designing
