Quick Details
-
Graphic Format Supported:
-
BMP, Dwg, DXF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
570*510*150mm
-
Weight (KG):
-
4.5 KG
-
Product name:
-

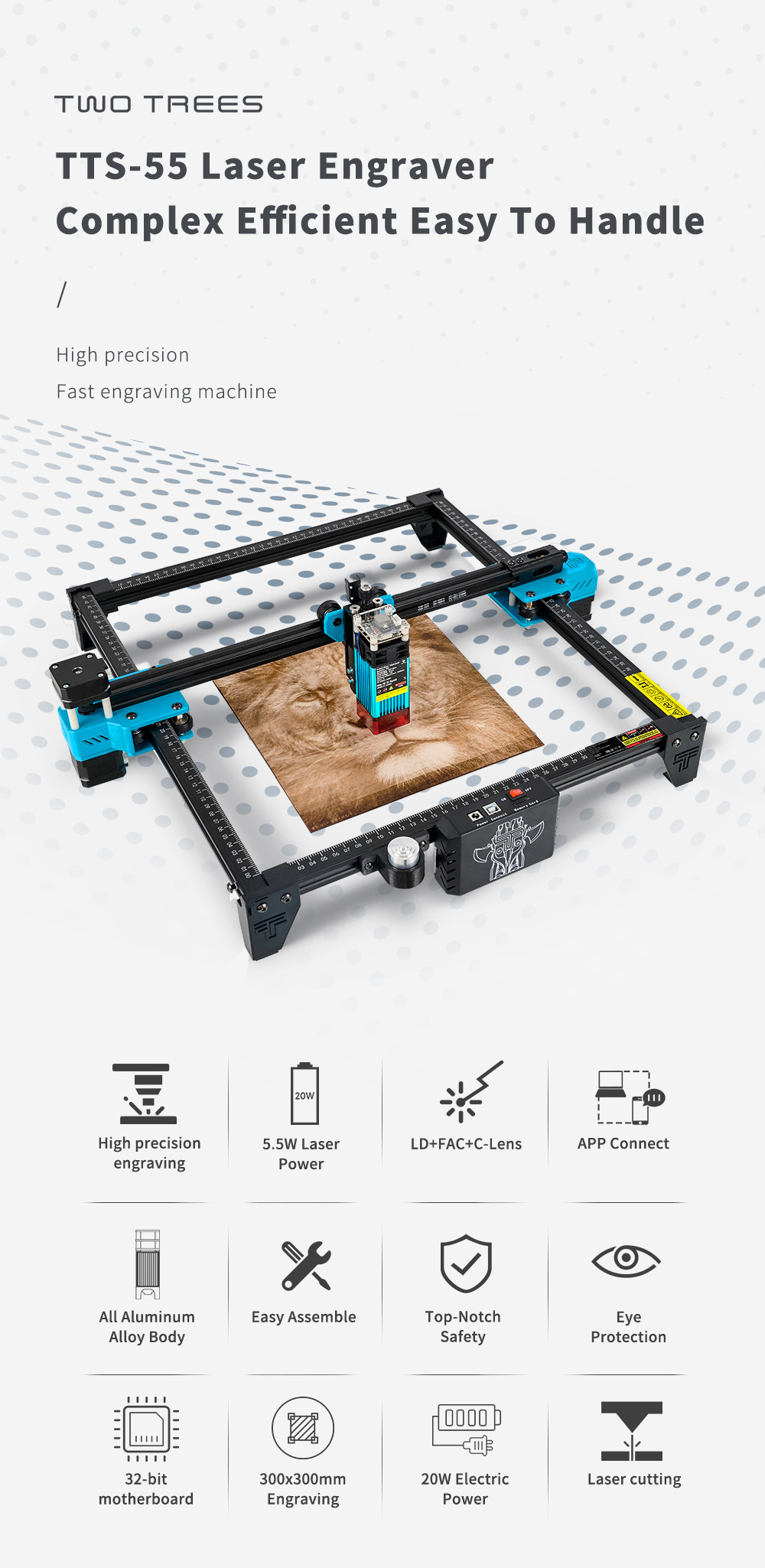

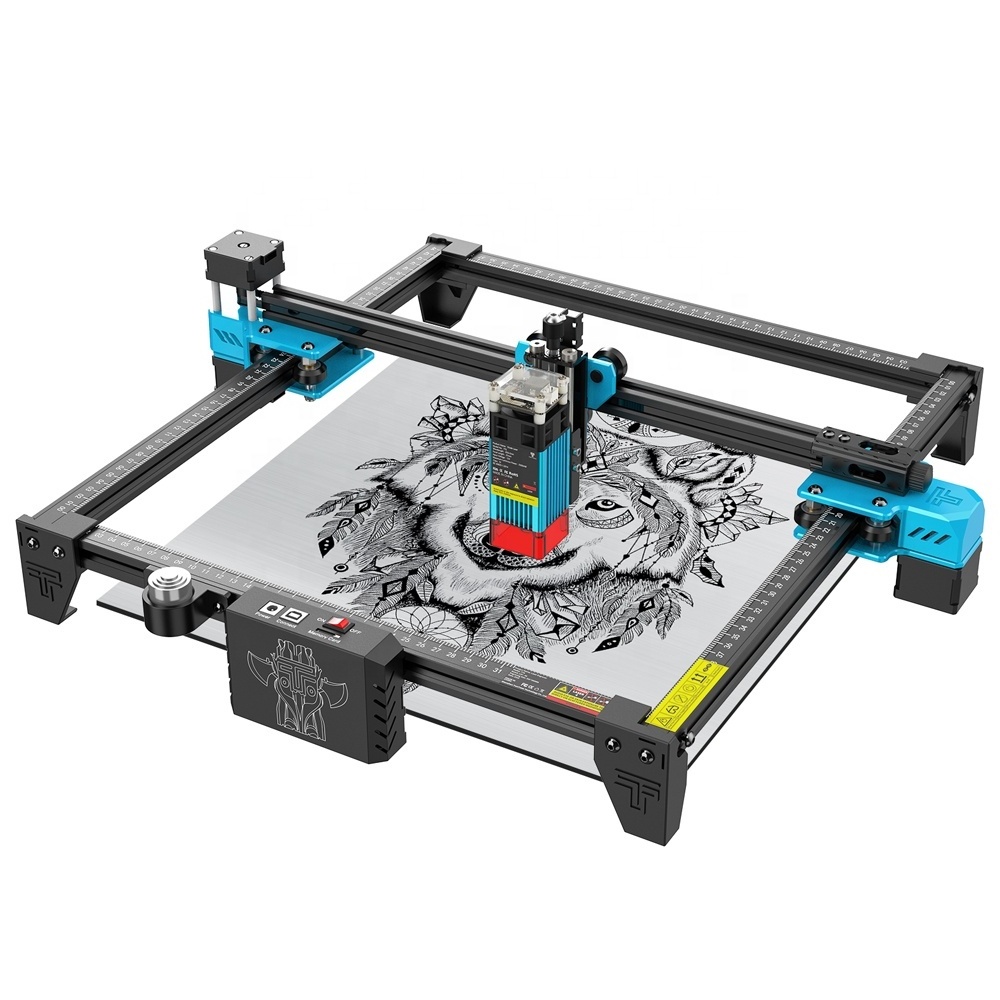

TTS55 Laser Engraving Cutting Machine
-
Laser power:
-
5.5W (FAC) High Speed
-
Engraving area:
-
Extensible 420*400mm/600*600mm kit
-
MG Print head Y Axis:
-
two-axis synchronous machine
-
Software support:
-
Mac, Windows,GRBL, LIGHTBURN
-
Motherboard:
-
LTS ESP32 Motherboard
-
Electrical Requirement:
-
12V 4A DC
-
operation Method:
-
USB /Connect PC /APP WiFi operation
-
Glass:
-
Laser colored paper is needed to aid engraving
Quick Details
-
Engraving Area:
-
300mm(11.8in)*300mm(11.8in)
-
Laser Type:
-
Diode
-
Engraving Speed:
-
10000mm/min
-
Graphic Format Supported:
-
BMP, Dwg, DXF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
570*510*150mm
-
Weight (KG):
-
4.5 KG
-
Product name:
-
TTS55 Laser Engraving Cutting Machine
-
Laser power:
-
5.5W (FAC) High Speed
-
Engraving area:
-
Extensible 420*400mm/600*600mm kit
-
MG Print head Y Axis:
-
two-axis synchronous machine
-
Software support:
-
Mac, Windows,GRBL, LIGHTBURN
-
Motherboard:
-
LTS ESP32 Motherboard
-
Electrical Requirement:
-
12V 4A DC
-
operation Method:
-
USB /Connect PC /APP WiFi operation
-
Glass:
-
Laser colored paper is needed to aid engraving
Product Paramenters
Aluminum Oxide, 304 Stainless Steel, Ceramic,Dark Stone Laser Engraver Machine nonmetal 40W Laser Cutting Machine

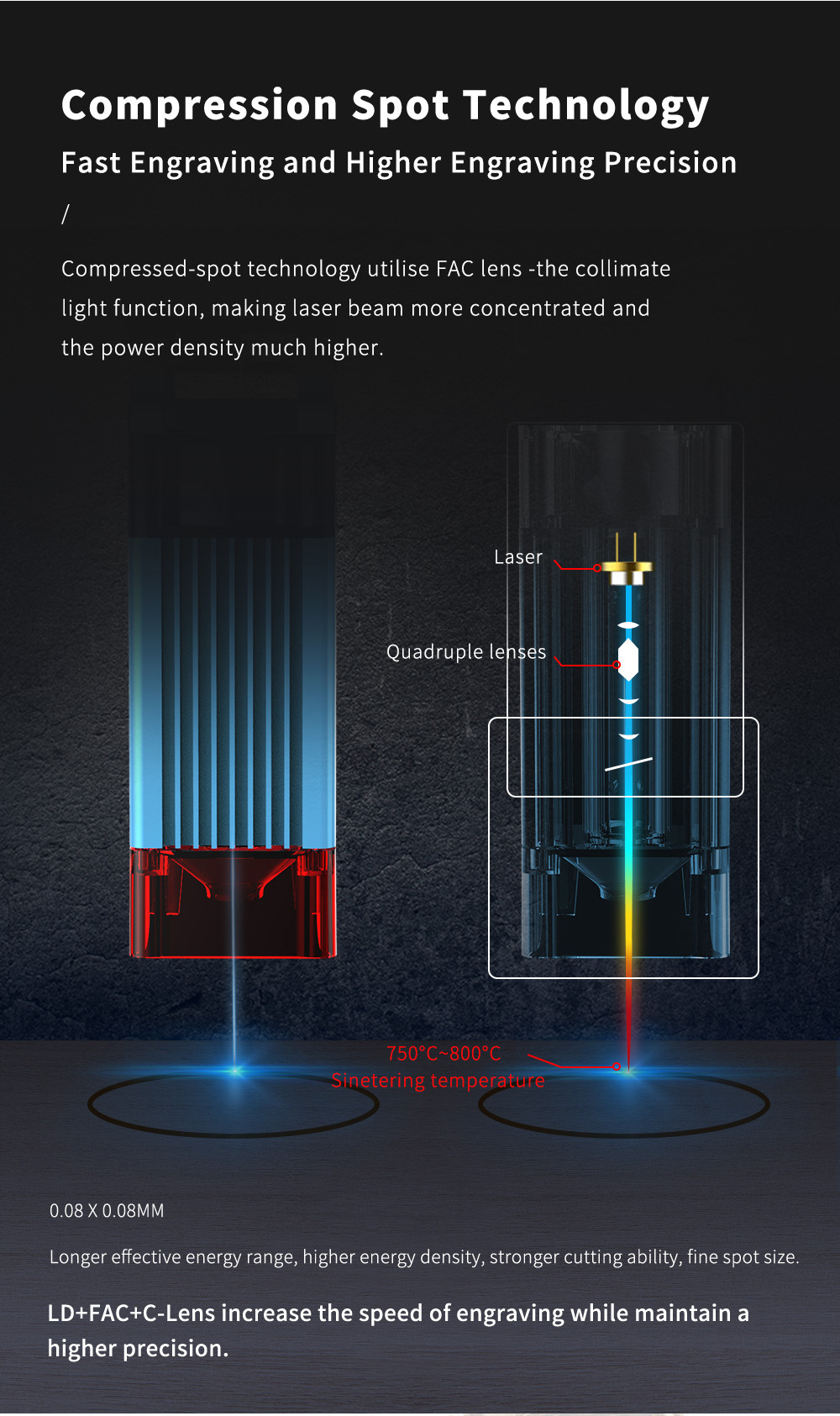

* Advanced Laser Technology: TTS-55 laser module uses the latest LD+FAC+C-Lens compression spot technology, fixed focus, focal length is only 23mm, compared with other long focus lasers, short focus laser has stronger engraving and cutting ability.Engraving accuracy: 0.1mm. Laser power: 5.5W, machine output power: 40W.
* 32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.
* Software Compatibility: Twotrees TTS-25/55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.
* New Upgrades: Twotrees TTS-55 is an upgraded version of TT-5.5S. TTS-55 aluminum profile added digital scale, upgraded to32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc.
* 32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.
* Software Compatibility: Twotrees TTS-25/55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.
* New Upgrades: Twotrees TTS-55 is an upgraded version of TT-5.5S. TTS-55 aluminum profile added digital scale, upgraded to32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc.
