Waste Wooden Crates Cardboard Box Shredding Crusher Garden Waste Shredding Single Shaft Shredder Machine

Waste Wooden Crates Cardboard Box Shredding Crusher Garden Waste Shredding Single Shaft Shredder Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $22200

≥6 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Santai Machinery

Voltage:: 220V 380V 400V 380V/50Hz/three-phase or customized

Dimension(L*W*H):: 3600*2000*2400

Power (kW):: 75

Weight (T):: 4200

Name:: Waste Palstic Crushing

Application:: Recycle Waste Plastic

Keyword:: Crusher Shredder

Function:: Plastic Cutter Grinder Crusher Shredder Machine

Usage:: Waste Raw Material Shredding

Product name:: Shreddder Machine

Crushing material:: General Plastic Materials

After-sales Service Provided:: Video Technical Support

Type:: Environment-friendly

Raw material:: Plastic Products Paper Wood Metal Product

Quick Details

Max.Production Capacity (kg/h):: 1000

Place of Origin:: Henan China

Production Capacity (kg/h):: 600 - 1000 kg/h

Brand Name:: Santai Machinery

Voltage:: 220V 380V 400V 380V/50Hz/three-phase or customized

Dimension(L*W*H):: 3600*2000*2400

Power (kW):: 75

Weight (T):: 4200

Name:: Waste Palstic Crushing

Application:: Recycle Waste Plastic

Keyword:: Crusher Shredder

Function:: Plastic Cutter Grinder Crusher Shredder Machine

Usage:: Waste Raw Material Shredding

Product name:: Shreddder Machine

Crushing material:: General Plastic Materials

After-sales Service Provided:: Video Technical Support

Type:: Environment-friendly

Raw material:: Plastic Products Paper Wood Metal Product

Products Description

Waste Shredder Machine Plastic Recycling Crusher Shredder

Single shaft shredder is suitable for shredding plastic materials, high performance, high efficiency, high output and other three high small and medium-sized shredding equipment. Suitable for shredding plastic products with high toughness, high hardness, pipe, rubber head, spout material, head material and so on. Single-axis shredder machine is equipped with push material setting and PLC automatic control system to realize intelligentization.

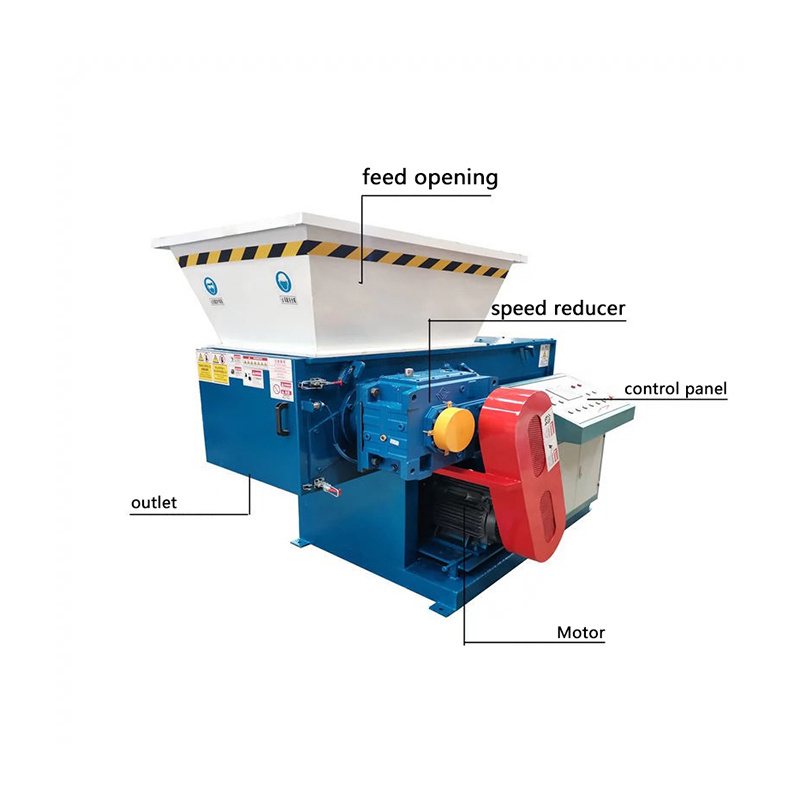

Plastic shredder (single shaft) is mainly composed of main shaft, blade, fixed knife, box, feeding system, pushing system, power system and so on. It is the use of dynamic knife and fixed knife interaction, and through the screen to control the size of the discharge, the material will be torn, shear, extrusion processing to a smaller size. It is often used for the primary crushing of various plastic solid wastes, and can process the materials to a smaller size at one time. It is characterized by controllable discharge size, wide applicability of materials and high efficiency.

The main materials crushed by single shaft plastic shredder are plastic, machine head material, rubber head material, water spout material, rubber block, plastic, film, agricultural film, mulch film, PP woven bag, ton bag, ton bag, stretch film, trellis film, pipe, PE bottle, daily miscellaneous plastic bottles, plastic tables and stools, foam and so on.

Model	Movable tool size （mm）	Number of cutters	Fixed knife size (mm)	Number of fixed knives	Spindle speed	Diameter of cutter plate (mm)	Rotary Diameter (mm)
600	*4040**	30	*300100**	2	75r	260	300
800	*4040**	38	*400107**	2	75r	300	350
1000	*4040**	46	*500113**	2	75r	400	450
1200	*4040**	58	*600120**	3	75r	400	450

Product packaging

All products will be processed to be rustproof and moisture proof before delivery
Using standard export packaging, bare packaging, containers, or according to customer requirements
