Extruder
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HWYAA
-
Voltage:
-
380V 220V customized
-
Dimension(L*W*H):
-
36m*4m*3m
-
Power (kW):
-
135
-
Weight:
-
6800 KG
-
Tape Diameter:
-
16mm
-
Single Screw Extruder:
-
SJ-75/35(External tape)
-
Design Production Speed:
-
180m/min( Dripper spacing 300mm )
-
Central Line Height:
-
1000mm
-
Dripper Spacing:
-
100-500mm
-
Drilling Speed:
-
800 pcs/min
-
Drilling Method:
-
Mechanical
-
Tape Roll Length:
-
1000m-2000m
-
Total Installed Power:
-
135Kw
-
Total Line Weight:
-
6800kg
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
35
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HWYAA
-
Voltage:
-
380V 220V customized
-
Dimension(L*W*H):
-
36m*4m*3m
-
Power (kW):
-
135
-
Weight:
-
6800 KG
-
Tape Diameter:
-
16mm
-
Single Screw Extruder:
-
SJ-75/35(External tape)
-
Design Production Speed:
-
180m/min( Dripper spacing 300mm )
-
Central Line Height:
-
1000mm
-
Dripper Spacing:
-
100-500mm
-
Drilling Speed:
-
800 pcs/min
-
Drilling Method:
-
Mechanical
-
Tape Roll Length:
-
1000m-2000m
-
Total Installed Power:
-
135Kw
-
Total Line Weight:
-
6800kg
product description

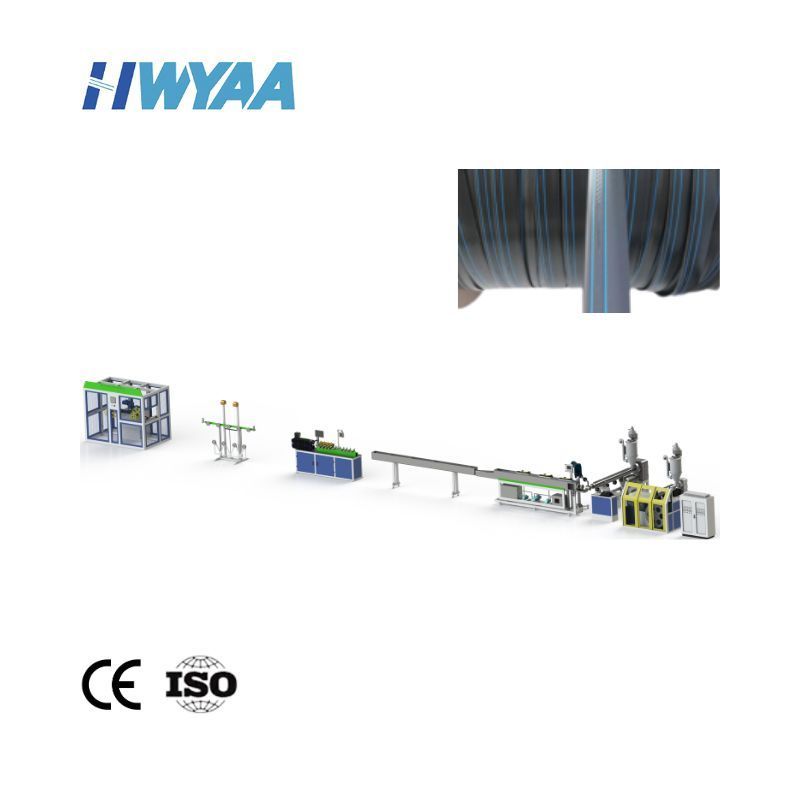

Production Line for the drip tape with double strip lines
The technical features of the line Composition are as follows:
1.With new type of high-efficient prototyping system, which is well-designed,flow performs stably.
2. New Vacuum Setting Cooling System makes sure vacuum stability and precise coining.
3.Cutting device with high precision,accurate and continuous segmentation.
3.Cutting device with high precision,accurate and continuous segmentation.
4. New type of caterpillar band tractionequipment,press fits with multiple points to prevent joint strip's deformation.
Main Technical Parameters
|
item
|
value
|
|
Condition
|
New
|
|
Plastic Processed
|
PE, PP, HDPE, Lldpe, LDPE
|
|
Application
|
PIPE
|
|
Screw Design
|
Single-screw
|
|
Screw Material
|
38CrMoALA
|
|
Screw diameter (mm)
|
75
|
|
Screw L/D Ratio
|
35
|
|
Screw Speed (rpm)
|
100rpm
|
|
Showroom Location
|
Turkey, Viet Nam, Saudi Arabia, Mexico, Russia, Algeria, South Africa
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
HWYAA
|
|
Voltage
|
380V 220V customized
|
|
Dimension(L*W*H)
|
36m*4m*3m
|
|
Power (kW)
|
135
|
|
Weight
|
6800KG
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Automatic
|
|
Applicable Industries
|
Farms
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Gearbox, Screw
|
|
Machinery Test Report
|
Not Available
|
|
Tape Diameter
|
16mm
|
|
Single Screw Extruder
|
SJ-75/35(External tape)
|
|
Design Production Speed
|
180m/min( Dripper spacing 300mm )
|
|
Central Line Height
|
1000mm
|
|
Dripper Spacing
|
100-500mm
|
|
Drilling Speed
|
800 pcs/min
|
|
Drilling Method
|
Mechanical
|
|
Tape Roll Length
|
1000m-2000m
|
|
Total Installed Power
|
135Kw
|
|
Total Line Weight
|
6800kg
|
