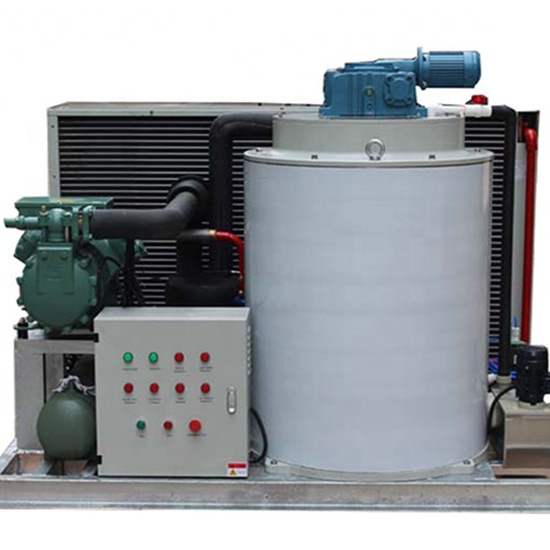

1. Evaproator drum :
1). Carbon steel or stainless steel 304 for fresh water ice machine .
2). Stainless steel 316 for sea water
2.Top Cover :
1). Stainless steel 304 for fresh water.
2). Aluminium alloy
3.Stainless steel ice scraper
4.Condenser 1).Air cooled copper condenser 2).Water cooled shell & tube condenser
5.Control Box : Dynamic micro-computer control system with touch screen .It makes the machine operation easy .
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
2500KG
-
Place of Origin:
-
China
-
Brand Name:
-
ECOICE
-
Dimension(L*W*H):
-
2300*1650*1480mm
-
Weight:
-
980 KG
-
Product name:
-
Flake ice machine
-
Material:
-
Stainless Steel 304/316L
-
Cooling Type:
-
Water Cooliing
-
Ice thickness:
-
1.5~2.2mm
-
Compressor:
-
Bizter
-
Expansion valve:
-
Denmark Brand Danfoss
-
Water InletDrain Pipe:
-
1/2"
Quick Details
-
Ice Shape:
-
Flake Ice
-
Voltage:
-
380v,50hz,3p/220v-240v,50hz,3p
-
Power:
-
38.7kw
-
Ice storage capacity:
-
2500KG
-
Place of Origin:
-
China
-
Brand Name:
-
ECOICE
-
Dimension(L*W*H):
-
2300*1650*1480mm
-
Weight:
-
980 KG
-
Product name:
-
Flake ice machine
-
Material:
-
Stainless Steel 304/316L
-
Cooling Type:
-
Water Cooliing
-
Ice thickness:
-
1.5~2.2mm
-
Compressor:
-
Bizter
-
Expansion valve:
-
Denmark Brand Danfoss
-
Water InletDrain Pipe:
-
1/2"
Product Description
Specification
Technical Data As Below :
1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
2. Evaporating Temp : -20 ºC ;
3. Condensing Temp : 38 ºC ;
4. Power supply: 3P/380V/50HZ
5. Flake ice thickness:1.6-2.3 mm
6. Refrigerant gas type : R404a
|
Model
|
ECOF-5T
|
ECOF-8T
|
ECOF-10T
|
ECOF-12T
|
|
Daily Output (Ton/24Hrs)
|
5
|
8
|
10
|
12
|
|
Cooling Capacity (KW)
|
38.7
|
54.1
|
76.5
|
83.3
|
|
General Power (KW)
|
22.55
|
33
|
45.5
|
45.6
|
|
Compressor Input (KW)
|
20.5
|
27.1
|
40.7
|
47.5
|
|
Reductor Power(kw)
|
0.37
|
0.55
|
0.55
|
0.55
|
|
Cooling Mode
|
Water Cooling
|
Water Cooling
|
Water Cooling
|
Water Cooling
|
|
Cooling Tower(m3/h)
|
20
|
30
|
45
|
50
|
|
Water Inlet/Drain Pipe
|
3/4",1/2"
|
3/4",1/2"
|
3/4",1/2"
|
3/4",1/2"
|
|
Weight (kgs)
|
980
|
1670
|
2020
|
2260
|
|
Dimension(mm)
|
1800*1500*1470
|
2200*1890*1650
|
2200*1900*1750
|
2200*1900*1900
|
Production Process
Main Spare Parts
Flake ice machine ice maker main parts introduction :
Application
Flake ice machine Application：
1) Fishing -Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and
other sea products.
2) Sea food process -keeps the sea food fresh.
3) Bakery -prevent the flour from self raising by adding flake ice.
4) Food processing - cool the meat and water air, also supply moisture for the products at the meantime.
5) Vegetables distribution and fresh-keeping.
6) Medicine -flake iceis the most ideal temperature-reducing carrier.
7) Concrete Cooling -Flake ice is widely used in the large projects.
1) Fishing -Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and
other sea products.
2) Sea food process -keeps the sea food fresh.
3) Bakery -prevent the flour from self raising by adding flake ice.
4) Food processing - cool the meat and water air, also supply moisture for the products at the meantime.
5) Vegetables distribution and fresh-keeping.
6) Medicine -flake iceis the most ideal temperature-reducing carrier.
7) Concrete Cooling -Flake ice is widely used in the large projects.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
