Quick Details
-
Dimension(L*W*H):
-
840L*560W*810H mm
-
Weight:
-
65 KG
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
Honest
-
Product name:
-
Cow Milking Machine Price
-
Model:
-
HT-JN01
-
Pulse rate:
-
60/40
-
Material:
-
304 Stainless Steel
-
Motor Speed:
-
1440 rpm/min
-
Keywords:
-
Cow Milking Machine
-
Frequency:
-
60-90 times/min
-
Power Fitted:
-
0.75kw
-
Operating Vacuum Degree:
-
50Kpa (adjustable)
-
Swept volume:
-
250L/min
Quick Details
-
Type:
-
Cow/Goat Milking Machine
-
Use:
-
Cow/Goat Milking Machine
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
840L*560W*810H mm
-
Weight:
-
65 KG
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
Honest
-
Product name:
-
Cow Milking Machine Price
-
Model:
-
HT-JN01
-
Pulse rate:
-
60/40
-
Material:
-
304 Stainless Steel
-
Motor Speed:
-
1440 rpm/min
-
Keywords:
-
Cow Milking Machine
-
Frequency:
-
60-90 times/min
-
Power Fitted:
-
0.75kw
-
Operating Vacuum Degree:
-
50Kpa (adjustable)
-
Swept volume:
-
250L/min
Easy Operation Human Cow Milking Machine / Machine Milking / Cow Milking Machine Price
The milking machine is composed of a milking device and a vacuum device.
The cow (sheep) milk is sucked out by simulating the sucking action of the calf (lamb) with the vacuum device.
Milking machine: Low noise, simple structure, flexible and convenient operation, stable operation, high milking efficiency, alternating milking. It is equipped with a pulsator which allows a gent milking without damaging the nipples and helps to increase the milk production. The vacuum mobile milking machine for cows is designed according to the technical requirements of international standards, with stable performance, large effective reserve of vacuum tanks, low noise, simple operation and other advantages.The milking machine works to milk beside the cows in the horizontal state. This machine adopts a rotary- vane vacuum pump, which is belt driven, structurally compact and reasonable, and equipped with a self-lubricating device to ensure trouble-free operation.
A stainless steel vacuum tank is used to prevent the milk barrel from being knocked over due to temporary negligence after it is filled with a large number of milk. Milk is pumped into a vacuum tank through a rubber pipe to prevent milk from being pumped into the vacuum pump.

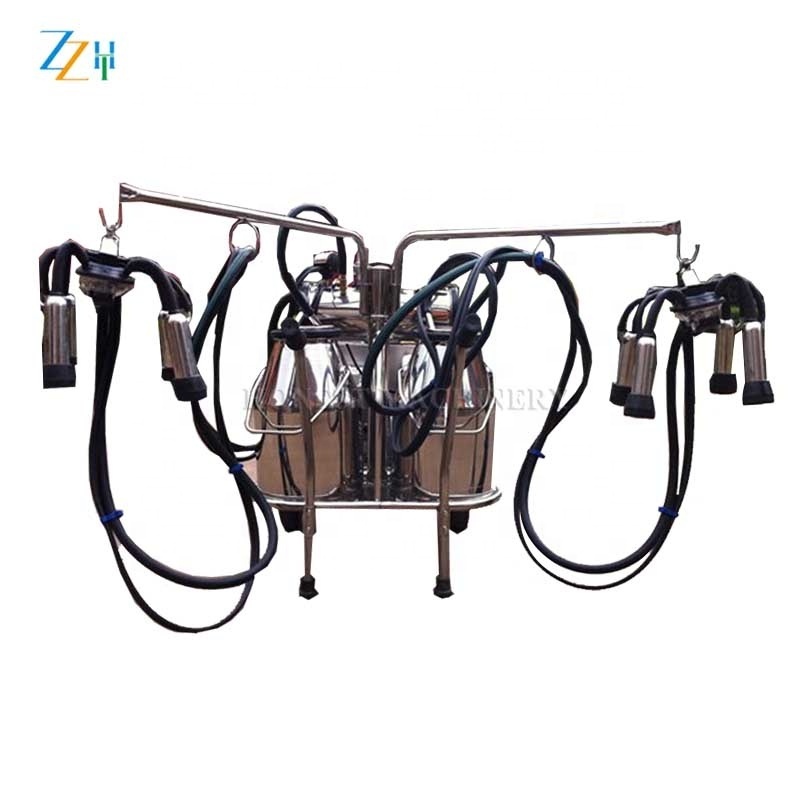

This series of milking machines is divided into single-barrel type (J N - 0 1) and double-barrel type (J N - 0 2). The single-barrel type can be used to milk one cow at a time and the double-barrel type can be used to milk two cows at the same time. Milking duration for each cow is 5-6 minutes (normal cows)
|
Model |
HT-JN01 |
HT-JN02 |
|
Material of Bucket |
stainless steel |
stainless steel |
|
Material of Frame |
Iron |
Iron |
|
Pulse rate |
60/40 |
60/40 |
|
Operating Vacuum Degree |
50Kpa (adjustable) |
50Kpa (adjustable) |
|
Pulsation Times |
60-90 times/min |
60-90 times/min |
|
swept volume |
250L/min |
250L/min |
|
Power Fitted |
0.75KW |
0.75KW |
|
Voltage |
220V 50Hz |
220V 50Hz |
|
The Number of Milking Cattle Per Hour |
10-12 cows |
20-24 cows |
|
Motor Speed |
1440 rpm/min |
1440 rpm/min |
|
Processing capacity |
3-6 minutes/sheep |
3-6 minutes/sheep |
|
The Number of Stainless Steel Milk Bucket |
1 (each of capacity of 25kg) |
2 (each of capacity of 25kg) |
|
Employees Needed When Milking |
1 |
1 |
|
The Number of Milking Cup Group |
1 set |
1 set |
|
Packing |
fumigation-free wooden case |
fumigation-free wooden case |
|
Dimension of the machine |
840L*560W*810H mm |
860L*730W*810H mm |
|
N.W.: |
65kg |
85kg |
|
G.W. |
78kg |
105kg |
If you need further information, please contact us freely, we will do our best to cooperate with you.
