Quick Details
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Place of Origin:
-
China
-
Brand Name:
-
HOYONGTRD
-
Model Number:
-
xh7125
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1200x1500x2100mm
-
Weight (KG):
-
1800
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
250 kg
Quick Details
-
Table Travel (X) (mm):
-
450
-
Table Travel (Y) (mm):
-
260
-
Table Travel (Z) (mm):
-
380
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Place of Origin:
-
China
-
Brand Name:
-
HOYONGTRD
-
Model Number:
-
xh7125
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1200x1500x2100mm
-
Weight (KG):
-
1800
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
250 kg
CNC MILLING MACHINE FEATURES：

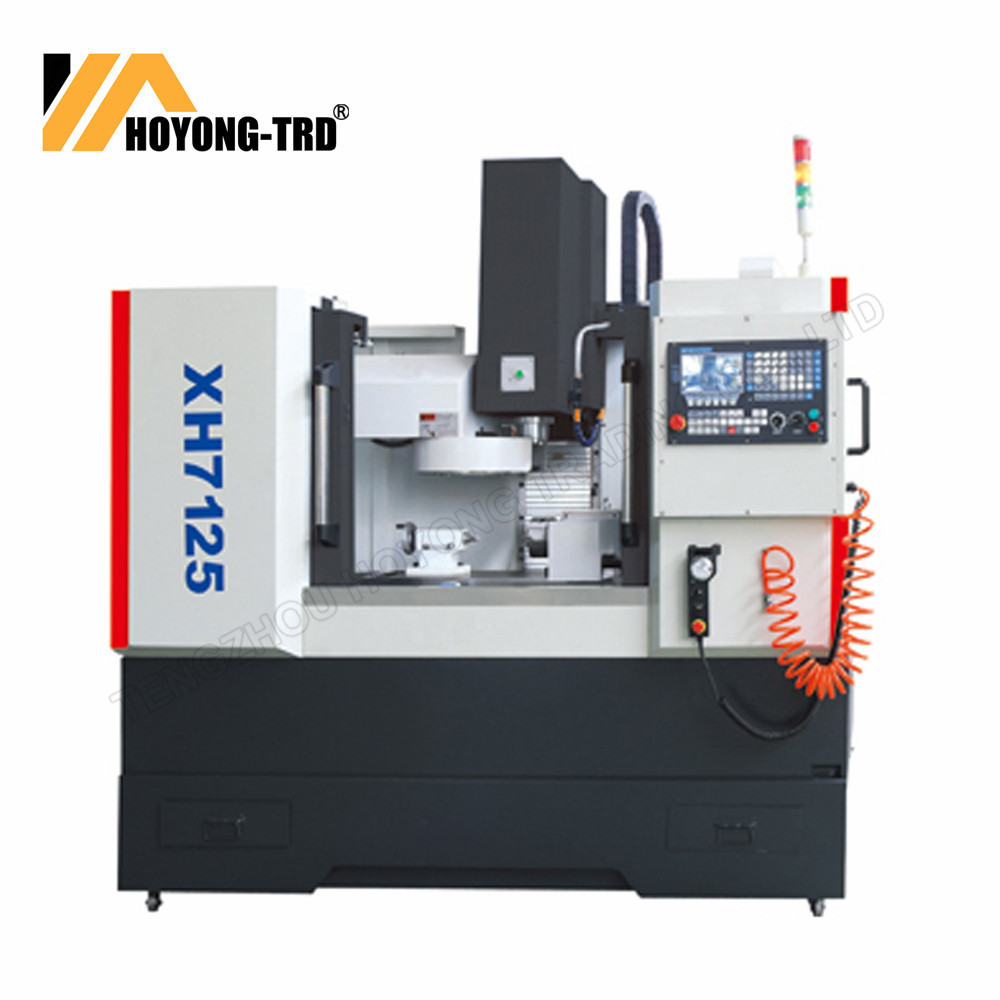

CNC Vertical Machining Center
1.high quality box guides
2.high travel speed
3.powerful axis servo
Main Features:
CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
CNC Vertical Machining Center
1.high quality box guides
2.high travel speed
3.powerful axis servo
Main Features:
CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
|
SPECIFICATION
|
XH7125
|
|
Main motor power
|
2.2kw
|
|
Highest spindle speed
|
6000rpm or 8000rpm
|
|
X/Y/Z to the motor torque
|
6/6/7.7N.M
|
|
The spindle taper hole
|
BT30(optional:ISO40)
|
|
Table size
|
900x250mm
|
|
X/Y/Z axis travel
|
450x260x380mm
|
|
Distance between spindle center and surface column
|
330mm
|
|
The distance of spindle end face to the workbench
|
50-430mm
|
|
Rapid movement(X/Y/Z)
|
6/5/4m/min
|
|
T-slot
|
3/14/35
|
|
Table load
|
250kgs
|
|
Positioning accuracy
|
0.02mm
|
|
Repeat posotioning accuracy
|
0.01mm
|
|
Machine tool appearance size(L x W x H)
|
1200x1500x2100mm
|
|
Ball screws diameter axis X Y and Z
|
25/25/32 mm
|
|
Net.Weight
|
1800kgs
|
