Quick Details
-
Brand Name:
-
JAY
-
Model Number:
-
10
-
Product name:
-

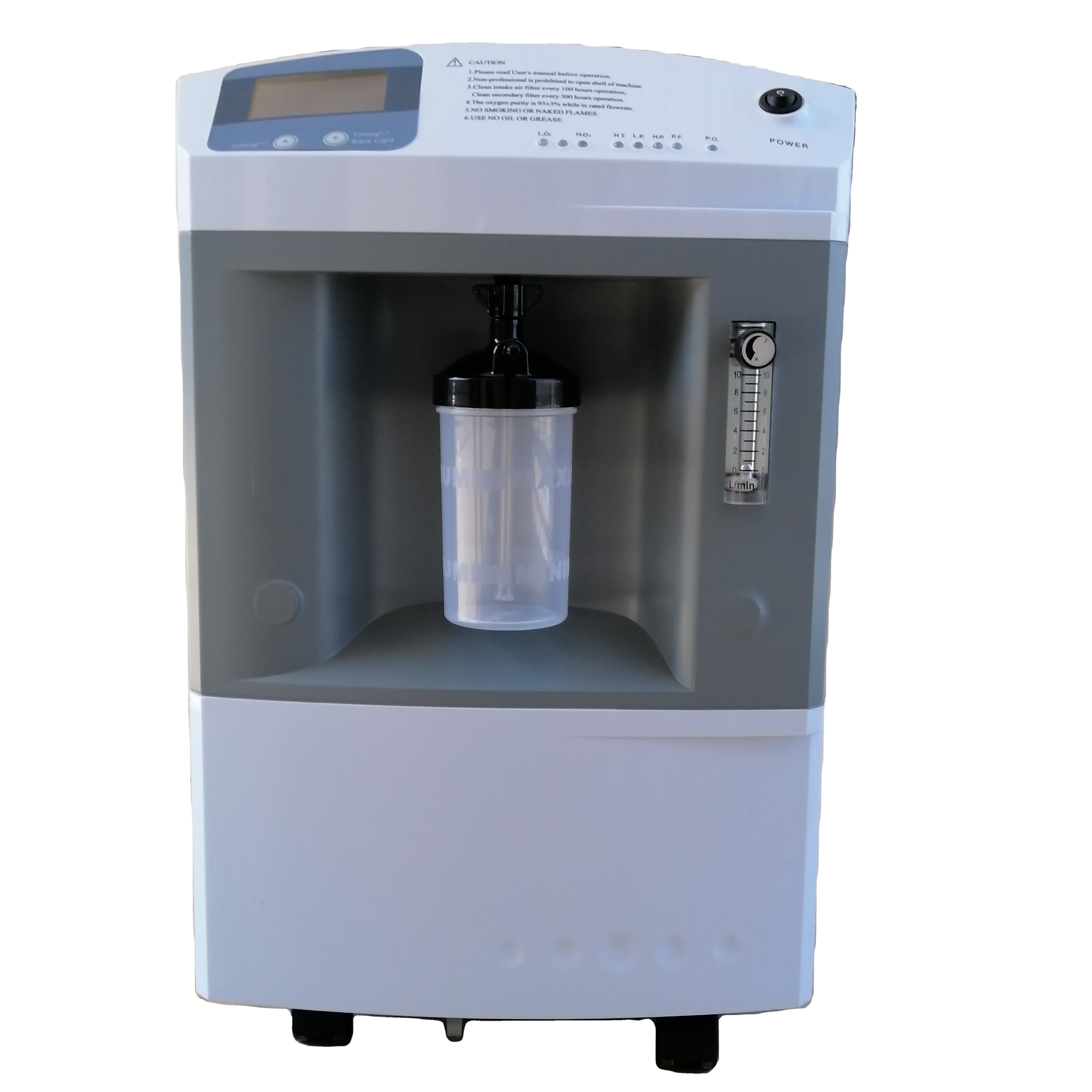

Oxygen Concentrator
-
Product model:
-
10L
-
Product Size:
-
365*375*600mm
-
Product weight:
-
27kg
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
JAY
-
Model Number:
-
10
-
Product name:
-
Oxygen Concentrator
-
Product model:
-
10L
-
Product Size:
-
365*375*600mm
-
Product weight:
-
27kg
Product Description
Product Advantages
*Dual flows
*USA imported humidifier
*24*365D working continiuous
*Big LCD display to show the Switch times,Operating pressure, Present Working Time,Accumulating Time, presetting Time from 10mins
to 40hours
*Other optional function(Nebulizer, low purity alarm/low flow alarm, high temperature alarm, pulse oximeter)
*USA imported humidifier
*24*365D working continiuous
*Big LCD display to show the Switch times,Operating pressure, Present Working Time,Accumulating Time, presetting Time from 10mins
to 40hours
*Other optional function(Nebulizer, low purity alarm/low flow alarm, high temperature alarm, pulse oximeter)
Specification
|
Model
|
10L
|
|
Flow Rate
|
0-10L/min
|
|
Purity
|
93% (±3%)
|
|
Outlet Pressure
|
0.04-0.07Mpa
|
|
Sound Level
|
≤50dB
|
|
Power
|
AC220V±10% , 50/60±1Hz;AC110V±10% , 50/60±1Hz;
|
|
Power Consumption
|
≤880W
|
|
LCD display
|
Switch times Operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours，
|
|
Alarm
|
Power failure alarm; high/low pressure alarm, temperature alarm/low purity alarm
|
|
Net Weight
|
27kg
|
|
Size
|
365×375×600mm
|
|
Quality Certification
|
TUV
|
|
Instrument classification
|
Class II
|
|
Safety standard
|
None
|
|
Product name
|
Oxygen Concentrator
|
|
Product model
|
10L
|
|
Product Size
|
365*375*600mm
|
|
Product weight
|
27kg
|
Packing & Delivery
FAQ
Warranty Period
A: 15 months for the whole unit
B: 24 months for compressor
Pre-sales Service
1. We will communicate with customers to know about their requirements.
2. Necessary samples and technical documents will be offered to customers.
3. We will guide customers to use our oxygen concentrator correctly and safely.
4. Our company also provides other services such as packing & designing as well as oxygen concentrator knowledge training.
In-sales Service
Delivery time is within 3-20 working days (according to specific order quantity) upon receiving the advance payment.
After-sale Service
Inquire of customers about the working conditions of their oxygen concentrators and help them settle problems in time.
A: 15 months for the whole unit
B: 24 months for compressor
Pre-sales Service
1. We will communicate with customers to know about their requirements.
2. Necessary samples and technical documents will be offered to customers.
3. We will guide customers to use our oxygen concentrator correctly and safely.
4. Our company also provides other services such as packing & designing as well as oxygen concentrator knowledge training.
In-sales Service
Delivery time is within 3-20 working days (according to specific order quantity) upon receiving the advance payment.
After-sale Service
Inquire of customers about the working conditions of their oxygen concentrators and help them settle problems in time.
