Quick Details
-
Brand Name:
-
N&C
-
Model Number:
-
NCM-M24
-
Properties:
-
Medical sugery
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Return and repairment
-
Place of Origin:
-
China
-
Brand Name:
-
N&C
-
Model Number:
-
NCM-M24
-
Properties:
-
Medical sugery
| P roduct name | Model | Specifications | Introduction/Advantages | ||

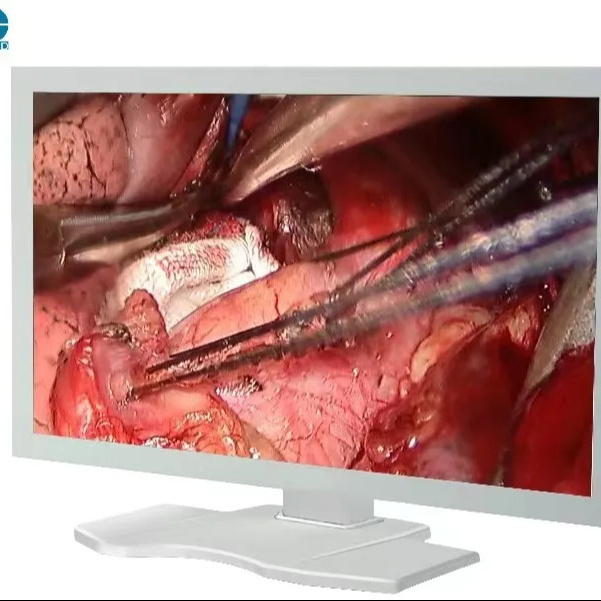

| 24 inch medical monitor | NCM- M24 | Screen Size | 24 inch |
.
True color re-production.
Full viewing angle display. Lontg-term continuous and stable work. The picture is delicate and real. Comply with international medical standard. |
|
| Resolution | 1920*1 200 | ||||
| Brightness | 300 cd/m² | ||||
| Contrast | 1000:1 | ||||
| Response time | <14s | ||||
| Visual angle | 178 degree H/V | ||||
| Hue | 16.7M | ||||
| Aspect ratio |
16:10
|
||||
| Input | VGA/DVI/S-VIDEO/BNC(video)/BNC*3(RGB/YPbPr)/BNC(CSYNC)/BNC(SDI) | ||||
| Output | BNC(VIDEO)/S-VIDEO/BNC(CSYNC)/BNC*3( (RGB/YPbPr)/BNC(SDI) | ||||
| Power supply | DC24V | ||||
| Power consumption | <48W max | ||||
| MTBF | >30000 hours | ||||
| Appearance | Metal case | ||||
| Size | 571*376*80mm | ||||
| Weight | 7.3KGS | ||||
| Installation | VESA 100*100 | ||||
| Appliances |
Endoscope/Electronic Gastroenteroscope/Laparoscope/Operation monitor
|
||||
24 inch Surgical Medical Monitor with 1920X1200 Full HD resolution, satisfying endoscopic equipment and high-definition field photography High-end display requirements for cameras. White and dust-free in appearance design, the metal closed design also effectively prevents dust and surgery Liquid contamination in process. Configure professional video processing chip , with a variety of GAMMA curves, different interface modes, true Meet the various needs of endoscopic clinical diagnosis and surgical treatment beg.
Product features:
N&C endoscopy monitor adopt widescreen FHD LCD panel with accurate color rendering, excellent layering, smooth and dynamic images and expanded visual scope, which meet the current rapidly changing demands for medical displays. At the same time, it's able to provide clear and precise observation of surgical sites in minimally invasive surgery. This product is perfectly suited to meet the requirements of various kinds of endoscopic displays or operating room and ICU displays due to its white frame, waterproof design, antibacterial treatment, compliance with electromagnetic compatibility regulations and multiple video input,output interfaces.
Application:
EC2240 can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc
