Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/3000K/3500K/4000K/5000K
-
Application:
-
Indoor
-
Product Weight（kg）:
-
1.58
-
Input Voltage(V):
-
120-277V
-
Lamp Luminous Flux(lm):
-
1600
-
Model Number:
-
HT-US-IID16CY32W/277-9271ZZ-V1MM
-
Place of Origin:
-
China
-
Voltage (V):
-
120-277V
-
CCT (K):
-
2700-5000K
-
CRI:
-
90
-
Dimmable:
-
YES(0-10V)
-
lifespan (hrs):
-
50000
-
Ambient Temp:
-
-20-40℃
-
WARRANTY:
-
5years
-
Housing:
-
Die-Cast Aluminum
-
Finish:
-
White
-
Inch:
-
4/6/8/10
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/3000K/3500K/4000K/5000K
-
Application:
-
Indoor
-
Product Weight（kg）:
-
1.58
-
Input Voltage(V):
-
120-277V
-
Lamp Luminous Flux(lm):
-
1600
-
Model Number:
-
HT-US-IID16CY32W/277-9271ZZ-V1MM
-
Place of Origin:
-
China
-
Voltage (V):
-
120-277V
-
CCT (K):
-
2700-5000K
-
CRI:
-
90
-
Dimmable:
-
YES(0-10V)
-
lifespan (hrs):
-
50000
-
Ambient Temp:
-
-20-40℃
-
WARRANTY:
-
5years
-
Housing:
-
Die-Cast Aluminum
-
Finish:
-
White
-
Inch:
-
4/6/8/10
DESCRIPTION
FEATURES
HOUSING

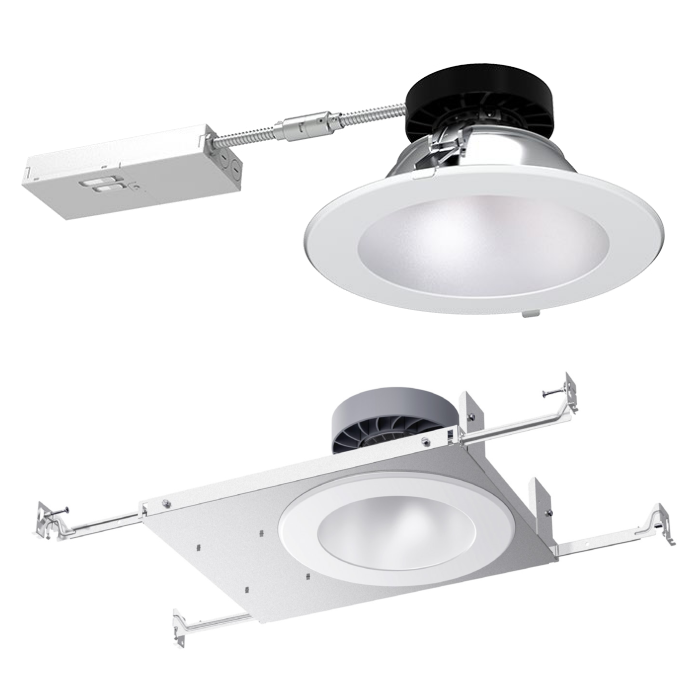

Integrated J-box with superior LED light engine can be customized with the 4", 6", 8", or 10" round trim.
AMBIENT TEMPERATURE
Suitable for use in -20°C to 40°C (-4°F to 104°F).
MOUNTING
Recessed mounting to existing housing with screws or friction clips.
LUMEN OUTPUT
COB Light Engine Lumen packages ranging from 720 to 3000 lumens.
SMD Light Engine Lumen packages ranging from 700 to 5800 lumens.
CCT AND CRI
Selectable 2700K/3000K/3500K/4000K/5000K CCT.
80/90 CRI.
OPTICS
SMD Light Engine Fixed Wide Beam 80°.
COB Light Engine Selectable Narrow Beam 25°/35°/45°.
WARRANTY
5-year limited warranty.
ELECTRICAL
Standard Input Voltage 120V-277V with 0-10V dimming. Optional Emergency Driver available.
CERTIFICATION
SMD Light engine:UL & ES certified.
COB Light engine:ETL & ES certified.
