Quick Details
-
Weight:
-
800 kg
-
Dimension(L*W*H):
-
3000mm*900mm*1400mm
-
Power:
-
10KW
-
Product name:
-

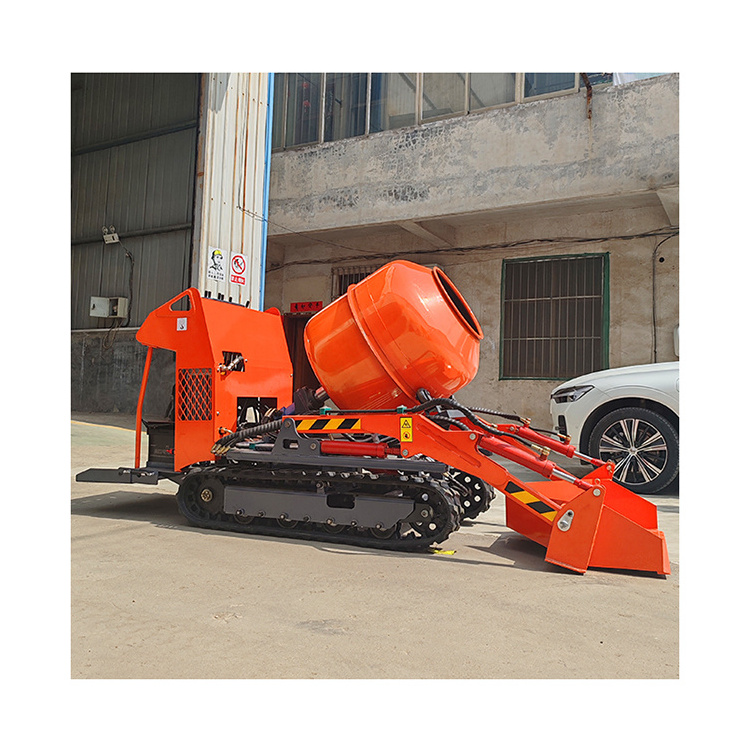

Cocnrete Mixer
-
Keywords:
-
Cement Concrete Mortar Mixer
-
Power type:
-
GASOLINE ENGINE
-
Mixing Power:
-
10KW
-
Engine:
-
Briggs&Stratton
-
Speed:
-
3.5km/h (2.18mile/h)
-
Motor:
-
Eaton
-
Color:
-
Customisable
-
Brand:
-
DRT
-
After-sales Service Provided:
-
1 year warranty
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DRT
-
Weight:
-
800 kg
-
Dimension(L*W*H):
-
3000mm*900mm*1400mm
-
Power:
-
10KW
-
Product name:
-
Cocnrete Mixer
-
Keywords:
-
Cement Concrete Mortar Mixer
-
Power type:
-
GASOLINE ENGINE
-
Mixing Power:
-
10KW
-
Engine:
-
Briggs&Stratton
-
Speed:
-
3.5km/h (2.18mile/h)
-
Motor:
-
Eaton
-
Color:
-
Customisable
-
Brand:
-
DRT
-
After-sales Service Provided:
-
1 year warranty
Hi My friend, welcome to Shandong Derette Machinery Co., Ltd.
Acompany specializing in manufacturing skid steer loaders in China,We have a variety of
models for you to choose from and support various customizations.Looking forward to
cooperating with you very much.
|
Type
|
ZNJB-300
|
|
ZNJB-400
|
|
|||
|
|
Metric Units
|
Imperial Units
|
Metric Units
|
Imperial Units
|
|||
|
Lengths
|
2750mm
|
108inch
|
3000mm
|
118inch
|
|||
|
Widths
|
900mm
|
35.4inch
|
900mm
|
35.4inch
|
|||
|
Height
|
1300mm
|
51.1inch
|
1400mm
|
55.1inch
|
|||
|
Mixing tank Capacity
|
0.28 m³
|
9.8 ft3
|
0.4 m³
|
14.1 ft3
|
|||
|
Bucket Capacity
|
0.04 m³
|
1.41 ft3
|
0.04 m³
|
1.41 ft3
|
|||
|
Unloading angle
|
57°/47°
|
|
|
|
|||
|
Engine
|
Briggs&Stratton
|
|
Briggs&Stratton
|
|
|||
|
Fuel
|
Gasoline
|
|
Gasoline
|
|
|||
|
Rated power
|
10Kw
|
13.5 Hp
|
10Kw
|
13.4 Hp
|
|||
|
Rated speed
|
3600r/min
|
|
3600rpm
|
|
|||
|
Hydraulic motor
|
Eaton
|
|
|
|
|||
|
Triple pump
|
10-10-06ml/r
|
|
|
|
|||
|
System pressure
|
16MPa
|
160bar=2320psi
|
16MPa
|
160bar=2320psi
|
|||
|
System oil volume
|
60L/min
|
|
|
|
|||
|
Hydraulic oil tank capacity
|
19.4L
|
4.3UK gal
|
19.4L
|
4.3UK gal
|
|||
|
Transport weight
|
300kg
|
1323Lb
|
600kg
|
1764Lb
|
|||
|
Payload
|
500kg
|
1103Lb
|
800kg
|
1323Lb
|
|||
|
Fuel tank capacity
|
5.5L
|
1.21 UK gal
|
5.5L
|
1.21 UK gal
|
|||
|
Speed
|
3.5km/h (2.18mile/h)
|
|
|
|
|||
|
Climbing angle
|
21%(12°)
|
|
|
|
|||
