Quick Details
-
Core Components:
-
Precision
-
Standard:
-
JIS MAS403
-
Material:
-
20CrMnTi
-
Material Hardness:
-
HRC48-52
-
Run out accuracy:
-
≤0.03mm
-
Clamping range:
-
1mm-25mm
-
Customized:
-
available
-
Roundness:
-
<0.8μm
-
Carburized depth:
-
>0.8mm
-
Surface roughness:
-
>0.8mm
-
Quality control:
-
100% inspection
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WARWICK
-
Model Number:
-
BT30-ER11-100
-
Core Components:
-
Precision
-
Standard:
-
JIS MAS403
-
Material:
-
20CrMnTi
-
Material Hardness:
-
HRC48-52
-
Run out accuracy:
-
≤0.03mm
-
Clamping range:
-
1mm-25mm
-
Customized:
-
available
-
Roundness:
-
<0.8μm
-
Carburized depth:
-
>0.8mm
-
Surface roughness:
-
>0.8mm
-
Quality control:
-
100% inspection

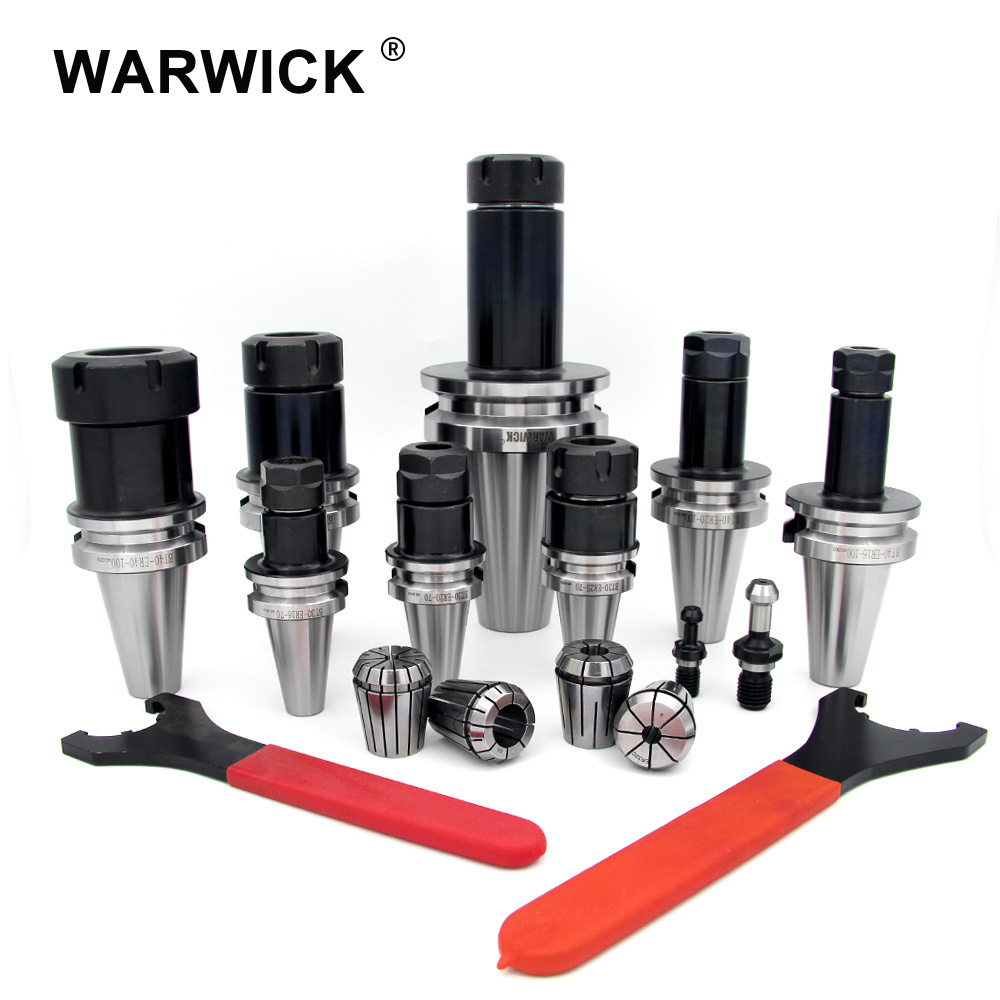

Bt30-er Collet Chuck Tool Holder
Production Features:
1.ER collet chucks handle a wide range of machining jobs,Simply choose the right size collet for the job, set tool depth, and tighten the collet nut and pull stud to the proper torque using a torque wrench.
2.The pre-balance can reach G6.3 8,000 rpm, Dynamic balanced by Haimer machine G2.5 RPM25,000 is available .
3.Our surface of roughness are maintained to Mirror Finish .
4.ER16 and ER20 are Hex Nut, ER25-ER40 are UM nut .
5.Internal hole tolerance : H5(DIN-1835-B standard)
