Quick Details
-
Voltage:
-
Customer's Requirement)
-
Dimension(L*W*H):
-
4080*2080*2100
-
Weight:
-
5500kg
-
Working Pressure:
-
24 bar
-
Air capacity:
-
800-900 cfm
-
Marketing Type:
-
New Product 2022
-
Model:
-
Atlas V900
-
Power:
-
264KW
-
Compressed gas flow:
-
28-26m3/min 900~800CFM
-
Working pressure:
-
2.5Mpa 25bar 360psi
-
Engine model:
-
DCEC QSL8.9-C360-30
-
Engine band answer:
-
Cummiin Stage III
-
Performance 1:
-
Diesel Powered
-
Performance 2:
-
High Efficiency
-
Performance 3:
-
New Technology
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Atlas-copco
-
Model Number:
-
Atlas V900
-
Voltage:
-
Customer's Requirement)
-
Dimension(L*W*H):
-
4080*2080*2100
-
Weight:
-
5500kg
-
Working Pressure:
-
24 bar
-
Air capacity:
-
800-900 cfm
-
Marketing Type:
-
New Product 2022
-
Model:
-
Atlas V900
-
Power:
-
264KW
-
Compressed gas flow:
-
28-26m3/min 900~800CFM
-
Working pressure:
-
2.5Mpa 25bar 360psi
-
Engine model:
-
DCEC QSL8.9-C360-30
-
Engine band answer:
-
Cummiin Stage III
-
Performance 1:
-
Diesel Powered
-
Performance 2:
-
High Efficiency
-
Performance 3:
-
New Technology
Products Description
|

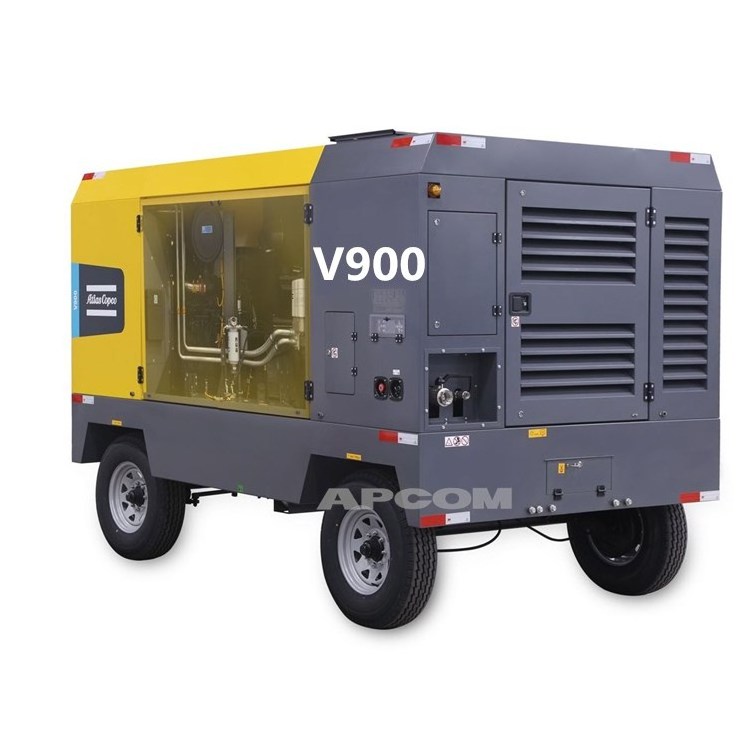

Atlas copco V900
|
|
|
|
|
||||
|
Engine brand
|
Cummins Stage III
|
|
Size
|
4252*2100*2500mm
|
||||
|
Power
|
264KW
|
|
Weight
|
4355 kg
|
||||
|
Pressure
|
25bar 363psi
|
|
Pressure
|
16bar 232psi
|
||||
|
Air flow
|
22.8 m
3
/min 805CFM 380 l/s
|
|
Air flow
|
25.4 m3/min 896CFM 423 l/s
|
||||
Product Paramenters
|
|
|
V900
|
V1200
|
|
Max. pressure
|
bar
|
16-25
|
15-25
|
|
|
psi
|
232-363
|
217-363
|
|
Flow
|
m
3
/min
|
25,4-22,8
|
36,8-34
|
|
|
l/s
|
423-380
|
613-566
|
|
|
cfm
|
896-805
|
1299-1200
|
|
Regulation system
|
|
PACE
|
DrilIAirXpert
|
|
Extended Pressure Range
XPR(optional)
|
bar
|
N/A
|
NA
|
|
Flow in Dynamic Flow Boost
model
|
m
3
/min(Vs)
|
N/A
|
36.8(613) at 15 bar
|
|
Engine model
|
|
DCEC QSL8.9-C360-30
|
DCEC QSZ13-C475-30
|
|
Engine band answer
|
|
Cummins Stage lll
|
Cummins Stage lll
|
|
Engine power
|
kw
|
264
|
364
|
|
Engine speed range
|
rpm
|
1200-1900(1700 nom)
|
1300-1700(1600 nom)
|
|
Dimensions wagon(bxwxh)
|
mm
|
4252x2100x2500
|
500Ox2100x2405
|
|
Wet weight support
|
kg
|
4355
|
5850
|
|
Fuel tank capacity
|
Lit
|
420
|
614
|
Details Show
Contact Us
Product Catalog
DrillAir: Putting you in control
We have developed, and will continue developing, a full range of compressors known as the DrillAir range.This range of compressors is specifcally developed to cover a multitude of drilling applications.The DrillAir range is built scientifcally around the principals of pressure and fow.The focus of the design is the relationship between these two variables and for the compressor to fnd the combination which is right for the application – to improve the effciency aspects of time spent and fuel consumed.With the DrillAir range you achieve the maximum air fow at any pressure setting.
There is no such thing as one size fts all when it comes to effcient drilling. Depending on the depth of hole and the size of the hammer the right product makes all the difference.The DrillAir range gives you the opportunity to choose a product which is right for your core business, while giving you the fexibility to adapt to changes in well depth and hammer size for any custom applications.
Let us fnd the DrillAir machine that is right for you!
Built better...
V900
---
XATS 1200
---
XAVS 1000
Advanced functionality with PACE? function and
IP65 protection.
PACE
TM
Technology,
Electronically controlled,
pressure regulating valve providing a wider pressure and FAD range.
Cummins G3/Stage
IIIA performance
engine.
Additional fuel flter for improved engine
protection.
ntegrated battery hub with anti-dust
protection.
Integrated, optimized
air fltration system for easy service and
performance
.
.
Integrated
fail-safe
outlet valves.
outlet valves.
Ergonomic integrated ladder
inside.
Dedicated service door
for oil level flling
and monitoring.
|
|
|
XATS 1200
|
XAVS 1000
|
|
Max. pressure
|
bar
|
5-10
|
5-14
|
|
|
psi
|
72-150
|
72-203
|
|
Flow
|
m
3
/min
|
34,6-31,5
|
28,9-25,6
|
|
|
l/s
|
578-520
|
482-425
|
|
|
cfm
|
1225-1102
|
1021-901
|
|
Engine model
|
|
DCEC QSL8.9-C360-30
|
DCEC OSL8.9-C360-30
|
|
Engine band answer
|
|
Cummins Stage lll
|
Cummins Stage lll
|
|
Engine power
|
kW
|
264
|
264
|
|
Engine speed range
|
rpm
|
1200-1900 (1700 nom)
|
1200-1900(1700 nom)
|
|
Dimensions wagon(bxwxh)
|
mm
|
4252x2100x2500
|
4252×2100x2500
|
|
Wet weight support
|
kg
|
4355
|
4355
|
|
Fuel tank capacity
|
Lit
|
420
|
420
|
Performs better!
X1300
Y1300
V1200*
V1200*
*V1200 machine is wheel mounted as standard. Design is the same box as theV900.
Visual Xc controller with
PowerXpert,
Dynamic Flow Boost and automatic start/stop.
Dynamic Flow Boost and automatic start/stop.
Centralized drain for
easy service.
Toggle switch to allow easy pressure
switching.
DrillAirXpert to
guarantee the most
effcient drilling speed.
effcient drilling speed.
Integrated ladder for
easy access to
the roof.
Highly effcient in-house
designed two-stage
screw element
Safe lifting slots.
Element service vessel. Less than one hour needed to change the oil
separator element.
Top guided exhaust with insulation. Muffer in the dedicated and isolated
chamber.
|
|
|
X1300
|
Y1300
|
|
Max. pressure
|
bar
|
15-30
|
15-35
|
|
|
psi
|
217-435
|
217-508
|
|
Flow
|
m
3
/min
|
38,9-35,4
|
37,1-33
|
|
|
l/s
|
648-590
|
618-550
|
|
|
cfm
|
1373-1250
|
1309-1165
|
|
Flow in Dynamic Flow Boost
model
|
m
3
/min(Vs)
|
38.9(648) at 15 bar
|
37.1(618)at 15 bar
|
|
Engine model
|
|
DCEC QSZ13-C550-30
|
DCEC QSZ13-C550-30
|
|
Engine band answer
|
|
Cummins Stage lll
|
cummins Stage lll
|
|
Engine power
|
kw
|
410
|
410
|
|
Engine speed range
|
rpm
|
1300-1850(1700 nom)
|
1300-1900 (1700 nom)
|
|
Dimensions wagon(bxwxh)
|
mm
|
5000x2250x2510
|
5000x2250x2510
|
|
Wet weight support
|
kg
|
6500
|
6500
|
