Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
LETON power
-
Model Number:
-
DGS-CM50S
-
Speed:
-
1500 rmp / 1800 rmp
-
Weight:
-
1120KG
-
Engine:
-
Cummins Diesel Engine
-
Engine Model:
-
4BTA3.9-G2
-
Cooling system:
-
Watering Cooling
-
Controller:
-
Smartgen
-
No. of Cylinder::
-
4
-
Noise level:
-
65-68dBA@7m
-
Starting method:
-
24V DC Electric Start
-
Alternator brand:
-
Stamford,LETON, MGTATON
-
Phase:
-
Single Phase\Three Phase
-
Genset type:
-
Super Silent Soundproof Canopy
Quick Details
-
Rated Voltage:
-
110V-480V
-
Rated Current:
-
72
-
Frequency:
-
50 Hz/ 60 Hz
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
LETON power
-
Model Number:
-
DGS-CM50S
-
Speed:
-
1500 rmp / 1800 rmp
-
Weight:
-
1120KG
-
Engine:
-
Cummins Diesel Engine
-
Engine Model:
-
4BTA3.9-G2
-
Cooling system:
-
Watering Cooling
-
Controller:
-
Smartgen
-
No. of Cylinder::
-
4
-
Noise level:
-
65-68dBA@7m
-
Starting method:
-
24V DC Electric Start
-
Alternator brand:
-
Stamford,LETON, MGTATON
-
Phase:
-
Single Phase\Three Phase
-
Genset type:
-
Super Silent Soundproof Canopy
Generator Specification
Cummins engine silent type 10-50kVA diesel generator set
|
Generator Mode
l
|
DGS-CM25S
|
DGS-CM30S
DGS-CM40S
|
DGS-CM45S
DGS-CM50S
|
||
|
Prime Power
|
20kw/25kVA
|
24kw/30kVA
32kW/40kVA
|
36kW/45kVA
40kw/50kVA
|
||
|
Power Factor
|
0.8/1
|
0.8/1
|
0.8/1
|
||
|
Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
||
|
Rated Voltage
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
||
|
Size mm
|
2100*900*1200
|
2100*900*1200
|
2300*1000*1300
|
||
|
Weight
|
926KG
|
960KG/1000KG
|
1080/1120KG
|
||
|
Engine Model
|
4B3.9-G1
|
4B3.9-G12
|
4BTA3.9-G2
|
||
|
No. of Cylinder
|
4
|
4
|
4
|
||
|
Displacement
|
3.9L
|
3.9L
|
3.9L
|
||
|
Speed
|
1500RPM/1800RPM
|
1500RPM/1800RPM
|
1500RPM/1800RPM
|
||
|
Cooling System
|
Water Cooled
|
Water Cooled
|
Water Cooled
|
||
|
Alternator
|
Full copper
|
Full copper
|
Full copper
|
||
|
Phase Type
|
Single phase / 3 phase
|
Single phase / 3 phase
|
Single phase / 3 phase
|
||
|
Exciter
|
Self-excitation
|
Self-excitation
|
Self-excitation
|
||
|
Generator Mode
l
|
DGS-CM12S
|
DGS-CM15S
|
DGS-CM20S
|
||
|
Prime Power
|
10/12kVA
|
12/15kVA
|
16/20kVA
|
||
|
Power Factor
|
0.8/1
|
0.8/1
|
0.8/1
|
||
|
Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
||
|
Rated Voltage
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
110V, 120V, 220V, 230V, 240V, 380V,400V, 440V
|
||
|
Size mm
|
2100*900*1200
|
2100*900*1200
|
2100*900*1200
|
||
|
Weight
|
760KG
|
810KG
|
850KG
|
||
|
Engine Model
|
4B3.9-G11
|
4B3.9-G11
|
4B3.9-G1
|
||
|
No. of Cylinder
|
4
|
4
|
4
|
||
|
Displacement
|
3.9L
|
3.9L
|
3.9L
|
||
|
Speed
|
1500RPM/1800RPM
|
1500RPM/1800RPM
|
1500RPM/1800RPM
|
||
|
Cooling System
|
Water Cooled
|
Water Cooled
|
Water Cooled
|
||
|
Alternator
|
Full copper
|
Full copper
|
Full copper
|
||
|
Phase Type
|
Single phase / 3 phase
|
Single phase / 3 phase
|
Single phase / 3 phase
|
||
|
Exciter
|
Self-excitation
|
Self-excitation
|
Self-excitation
|
||
Product details

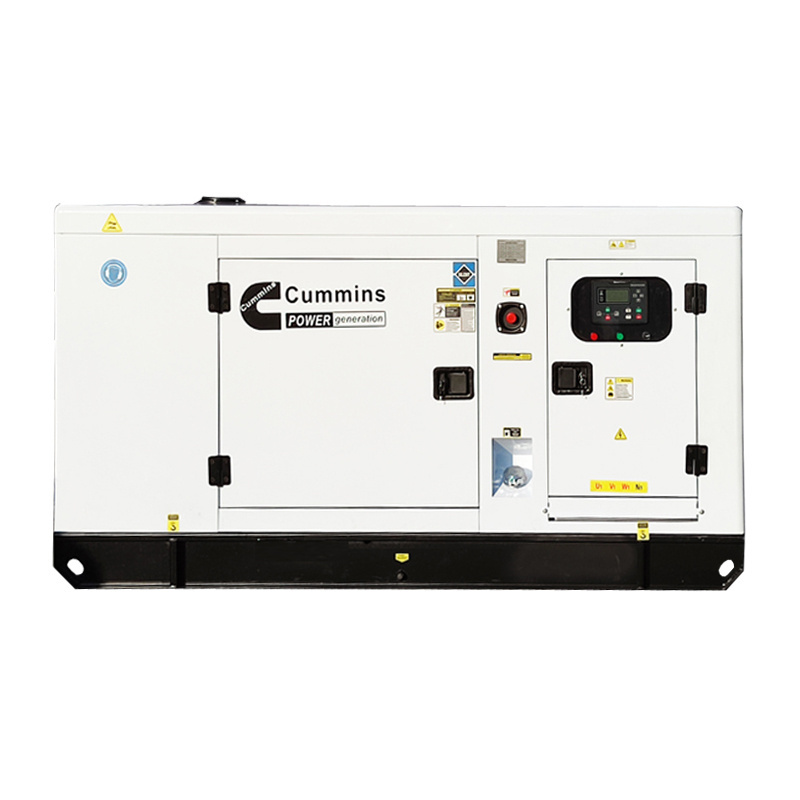

LETON power Cummins 20kw 30kw 40kw diesel generator cummins 25kva 30kva 40kva 380v diesel silent generator
|
CORROSION RESISTANT RADIATOR
|
SOLID DAMPING FOOT
|
AIR FILTER
|
|
High quality and low noise radiators, with anti-rust paint to add, ensure the machine will never old, mildew, corrosion resistance, safety.
|
Solid damping foot is stamping forming by high strength steel plate, with metal cover to protect rubber.
|
Piston, piston ring, valve and valve seat with more than 99.5% of original filtration efficiency
|
|
|
|
|
|
|
|
|
|
DIGITAL CONTROL PANEL
|
ELECTRONIC COMPONENTS
|
THICKENED BENDED UNDERFRAME
|
|
Use of three remote control unit control panel,integrated digital, intelligen't technology, compact structure, simple wiring, high
reliability. |
Cooperate with well-known electronic component manufacturers such as Delixi and Chint to provide customers with long-life,high-quality and very accurate machines
|
5MM thickened bent chassis, double-layer painting, improve corrosion resistance. Prevent the unit chassis from being corroded
|
|
|
|
|
|
|
|
|
More optional function!
High speed trailer type
Movable anywhere as you want
ATS
Automatic start
Genset when power off
Worldwide engine brand
Choose the core as your wish
About Us
Sichuan Leton Industry Co.,Ltd. (known as Leton power)started the business from year of 2001. LETON power as an internationalized company with more than 800 staffs, who integrated R&D, manufacturing, marketing on alternators, engines, generators, and electric power products, is committed to providing the customers with innovative and high-efficient power solutions. LETON power products have been well recognized in more than 160 countries and regions.
The booming development of LETON power in the global market is attributed to its development strategy that sustainable development must be closely tied to the "low carbon" economic target. In the whole process from R&D to manufacturing, the concept of energy-saving and environmental protection is always in the deep mind of LETON power family.
LETON power generator sets already passed the global ISO 9001 systems certified, CE certified. We satisfy the world's users' access to more convenient, more efficient, more energy saving, more stable and lower emissions power appliance. LETON power always believes innovation leads the future power!
LETON Generator Applications
Packaging and Delivery
We offer a whole perfect packages for our generator,Plywood package as per export standard.
Fastest delivery We promise our delivery, and move as fast as we can, t
o anywhere we try our best to send our generator set to reach everywhere as our customer requirement.
Hot Product
FAQ
Q1: Are you a factory or trading company?
We are a manufacturer. Certified via SGS, Intertek, CE and ISO.
Q2. Where is your factory located?
Our factories are in Chengdu City and Ningde, China. It's near to Shanghai/Guangzhou port.
Q3: How many days for production delivery?
Ordinarily it costs 5-7 workdays for normal type. Sample order in 3 days.
Q4: How about quality control in your factory?
1. We strictly operate full QC process, passed the ISO quality system management, CE verified, and intertek verification.
2. We followed, such as incoming inspection,process inspection, final inspection. Each engine,generator and water pump must be
tested in production line. 3. We offer and supply test video for each machines before delivery.
Q5: How about guarantee?
1 year warranty or 1000 hours (which comes first) for all products
Q6: What is your terms of payment ?
Payment<=2500 USD, 100% in advance.
Payment>2500 USD, 30% T/T in advance, balance after production completed.
We have enough ability to make deal on alibaba trade assurance.
Q7: Can you do door to door shipping service?
At present, we can do USA, Canada, Mexico, Venezuela, Kenya, India, Spanish, UK, etc.
Please contact and share us your door address, we can give you an acceptable shipping solution
We are a manufacturer. Certified via SGS, Intertek, CE and ISO.
Q2. Where is your factory located?
Our factories are in Chengdu City and Ningde, China. It's near to Shanghai/Guangzhou port.
Q3: How many days for production delivery?
Ordinarily it costs 5-7 workdays for normal type. Sample order in 3 days.
Q4: How about quality control in your factory?
1. We strictly operate full QC process, passed the ISO quality system management, CE verified, and intertek verification.
2. We followed, such as incoming inspection,process inspection, final inspection. Each engine,generator and water pump must be
tested in production line. 3. We offer and supply test video for each machines before delivery.
Q5: How about guarantee?
1 year warranty or 1000 hours (which comes first) for all products
Q6: What is your terms of payment ?
Payment<=2500 USD, 100% in advance.
Payment>2500 USD, 30% T/T in advance, balance after production completed.
We have enough ability to make deal on alibaba trade assurance.
Q7: Can you do door to door shipping service?
At present, we can do USA, Canada, Mexico, Venezuela, Kenya, India, Spanish, UK, etc.
Please contact and share us your door address, we can give you an acceptable shipping solution
