Quick Details
-
Type:
-
Ophthalmic Optical Equipments
-
Name:
-
retinal camera
-
Funtion:
-
intelligent operation image acquisition
-
Focus modes:
-
auto /manual
-
Image resolution:
-
24 megapixels
-
Certificate:
-
CE ISO
-
function 2:
-
FFA FAF optional
-
image resolution:
-
25MP
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
REDSUN
-
Model Number:
-
RET-
-
Type:
-
Ophthalmic Optical Equipments
-
Name:
-
retinal camera
-
Funtion:
-
intelligent operation image acquisition
-
Focus modes:
-
auto /manual
-
Image resolution:
-
24 megapixels
-
Certificate:
-
CE ISO
-
function 2:
-
FFA FAF optional
-
image resolution:
-
25MP

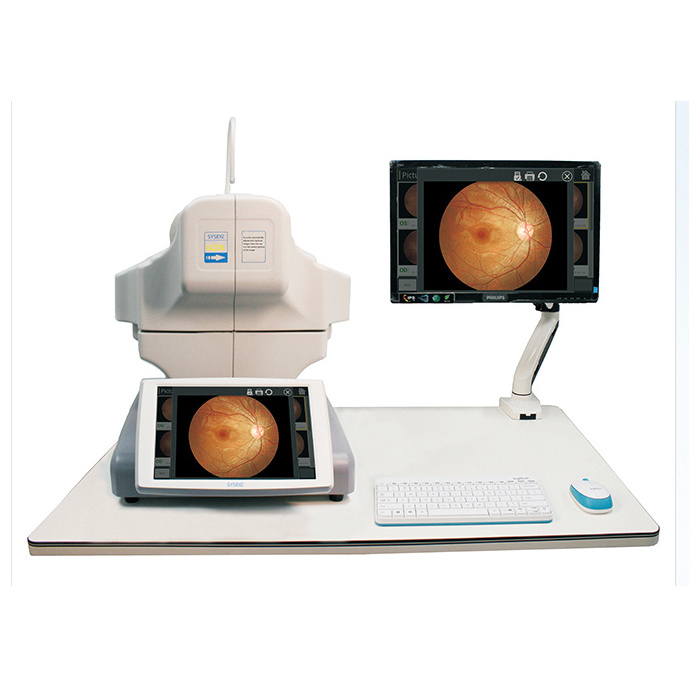

Reticam 3100 Retinal Camera
*One touch images acquisition
*Fast and accurate autofocus
*Non-mydriatic and autoexposure
* photography fundus ,fluorescence angiography (FFA optional). Auto fluorescence (FAF optional)
Smart operation automatic easy and fast
10.1 inch TFT touch screen
Simple as one , two ,three
One:Enter patient information
Two:Choose the eye (OD or OS),and move the pupil between two line marks
Three:Click”Take Picture”
The image will be ready in seconds
Dual-camera system -eyes of the device
Dual-camera system is like eyes of the device.It searches and locates the pupil for fast andaccurate autofocus.
Soft lighting –advanced optical technology
Soft lighting reduces the constriction of pupil caused by the illumination.Satisfactory images can beobtained even in two consecutive exposures.
Non-mydriatic design -Minimum pupil size of 3.3mm
135 °wide field 9 position mosaic device
Mosaic Function can generate the fundus images up to 135° field of view form 9 images of 50° field width each .More fixation points are distributed between 9 internal fixations shown.
Quality components –Step motor
High quality step motors reduce nosie effectively and create a quiet environment for the patients and operators.
Multifunctional software system
|
Image acquisition system |
|
|
Acuisition modes |
Non-mydriatic/mydriatic photography anterior segment photography fundus ,fluorescence angiography (FFA optional). Auto fluorescence (FAF optional) |
|
Field of view |
50 ° |
|
Minimum pupil size |
≥3.3mm |
|
Focus modes |
A uto /manual |
|
Operation |
Auto |
|
Image acquisition time |
W ithin 10 seconds |
|
Image resolution |
2 megapixels |
|
Working distance |
35mm |
|
Diopter COMPENSATION |
± 25D |
|
Fixation |
External fixation/internal fixation |
|
DICOM3.0 |
YES |
|
Dimensions |
380mm (L)x 550mm(W)X475mm(H) |
|
Weight |
26.5kg |
|
P ower supply |
100-240V 50/60Hz |
|
Note:specifications and design are subject to change without notice. |
|
