Quick Details
-
Brand Name:
-
FOIF
-
Model Number:
-
EL28
-
Product name:
-
FOIF Auto level
-
Model:
-
EL28
-
1km Double Run Leveling:
-
1mm
-
Leveling Accuracy:
-
0.5
-
Magnification:
-
28X
-
Objective aperture:
-
32mm/36mm/42mm
-
Shortest sighting distance:
-
0.3m
-
Waterprood grade:
-
IP66
-
Weight:
-
1.75kg
-
Size:
-
215*130*135mm
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
FOIF
-
Model Number:
-
EL28
-
Product name:
-
FOIF Auto level
-
Model:
-
EL28
-
1km Double Run Leveling:
-
1mm
-
Leveling Accuracy:
-
0.5
-
Magnification:
-
28X
-
Objective aperture:
-
32mm/36mm/42mm
-
Shortest sighting distance:
-
0.3m
-
Waterprood grade:
-
IP66
-
Weight:
-
1.75kg
-
Size:
-
215*130*135mm

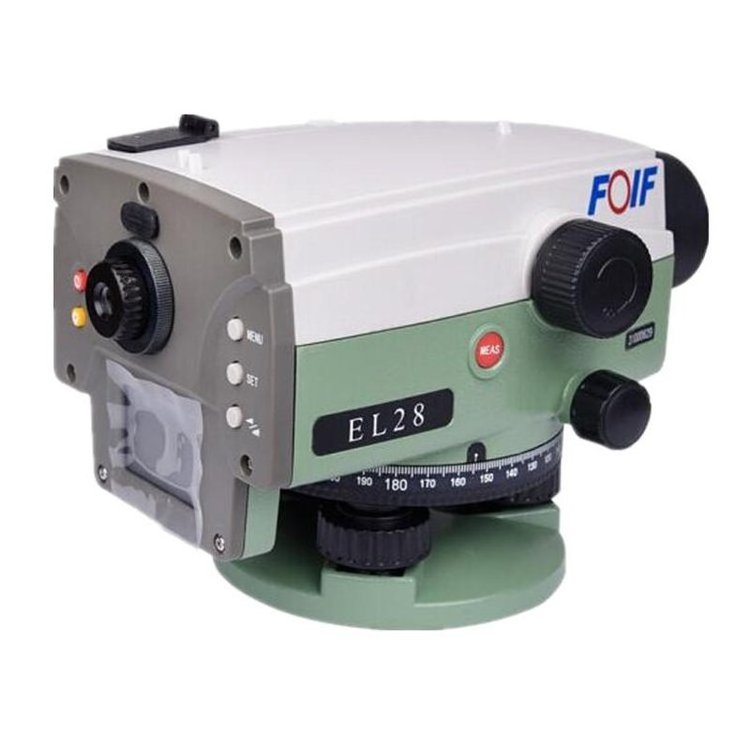

High Precision 28X Digital Level Measuring Instrument Foif EL28 Level Automatic Over 100 Set In Stock Auto Level
| Model | EL28 | |
| Accuracy | ||
| Standard deviation of km double run | ||
| Electronic measurement | +/-1.5mm* | |
| Optical measurement | +/- l.5mm* | |
| Electronic measurement | ||
| Time for single measurement | ≤2s | |
| Range | 2-80m | |
| Measurement modes | Singel, tracking | |
| Display resolution(m/in selectable) | ||
| Height | 1mm/0.01ft | |
| Distance | 10mm/0.1ft | |
| Telescope | ||
| Clear objective aperature | 45mm | |
| Magnification | 28x | |
| Field of view at 100m | 2.6m | |
| Shortest focus distance | 0.8m | |
| Automatic compensator | ||
| Working range | 15' | |
| Setting accuracy | +/-0.4" | |
| Power | ||
| Battery | 2000mAh Ni-MH rechargeable | |
| Continuous operating time | 40 hours | |
| Measurement programs | ||
| On-board programs |
DH,inverse staff measurement
I error checking and adjustment |
|
| Others | ||
| Display | Segment display | |
| Keyboard | Function key board,6 keys | |
| Interface | RS232 | |
| Sensitivity of circular level | 8'/2mm | |
| Water and dusp protection | IP54 | |
| Operating temperature | -20°C~50°C | |
| Net weight | 2kg | |
