Quick Details
-

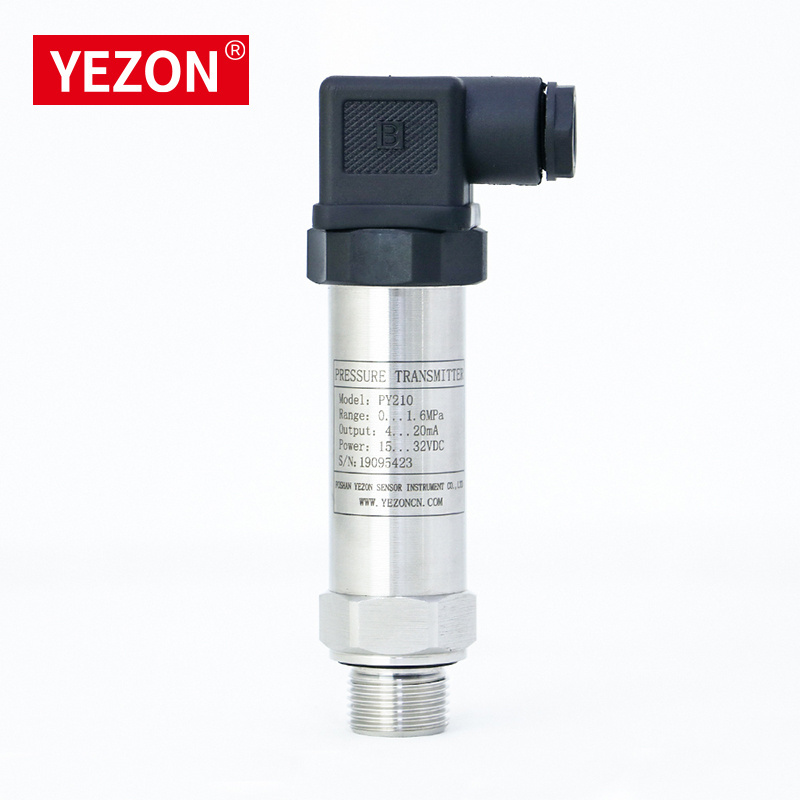

Model Number:
-
PY210
-
Product Name:
-
Pressure Transmitter
-
Pressure range:
-
0~0.1~600bar optional
-
Output signal:
-
4~20mA , 0-5V , 0.5-4.5V , 0-10V
-
Accuracy:
-
±0.25%FS,±0.5%FS
-
Power supply:
-
12V(9~24VDC) , 24V(15~30VDC)
-
Process connection:
-
M20X1.5 Male
-
Pressure type:
-
Silicon Strain Gauge Pressure
-
Waterproof:
-
IP65~IP67 optional
-
Application:
-
Water Oil Air Pressure Measurement
-
type:
-
Gauge Pressure Absolute Pressure
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YEZON
-
Model Number:
-
PY210
-
Product Name:
-
Pressure Transmitter
-
Pressure range:
-
0~0.1~600bar optional
-
Output signal:
-
4~20mA , 0-5V , 0.5-4.5V , 0-10V
-
Accuracy:
-
±0.25%FS,±0.5%FS
-
Power supply:
-
12V(9~24VDC) , 24V(15~30VDC)
-
Process connection:
-
M20X1.5 Male
-
Pressure type:
-
Silicon Strain Gauge Pressure
-
Waterproof:
-
IP65~IP67 optional
-
Application:
-
Water Oil Air Pressure Measurement
-
type:
-
Gauge Pressure Absolute Pressure
Products Parameters
|
Model
|
PY210
|
|
Application
|
Gauge and absolute pressure, liquid-liquid, air pressure;
|
|
Accuracy
|
0.5 level (default) 0.3 level (need to be customized);
|
|
Response time
|
5ms (up to 90% FS);
|
|
output signal
|
Current two wires: 4~20mA; voltage three wires: 0~5V, 1~ 5V ,0～10V RS485, RS232, wireless short distance (within 2000 meters) network transmission, GPRS wireless transmission;
|
|
Electrical Interface
|
Hessman leads, direct leads, aviation plug leads;
|
|
Range
|
-0.1KFa-0-60MPa 0~±10KPa ~ ±100KPa;
|
|
Extreme overload
|
200%;
|
|
Medium temperature
|
-20 ~ 60°C (temperature compensation -20 ~ 70°C);
|
|
Supply voltage
|
DC24V [15 ~ 36VDC] (default), 12VDC power supply needs to be customized;
|
|
Stable performance
|
± 0.296FS/year;
|
|
Sealing level
|
IP65;
|
|
Thread connection
|
M20X1.5, M14X1.5, GI/2, G1/4;
|
[ 1 ]
Using imported diffusion silicon
[ 2 ]
Advanced placement technology with zero full-range compensation and temperaturecompensation
[ 3 ] Amplified integrated circuit with high precision and high stability
[ 4 ] Up to twice the instantaneous pressure shock
[ 5 ] Intelligent foot protection (overvoltage / overcurrent / reverse connection)
[ 6 ] Various output signals. There are current type and voltage type.
[ 7 ] Full-scale Park compensation 'Temperature compensation
[ 8 ] Protection level reaches IP65
[ 3 ] Amplified integrated circuit with high precision and high stability
[ 4 ] Up to twice the instantaneous pressure shock
[ 5 ] Intelligent foot protection (overvoltage / overcurrent / reverse connection)
[ 6 ] Various output signals. There are current type and voltage type.
[ 7 ] Full-scale Park compensation 'Temperature compensation
[ 8 ] Protection level reaches IP65
Congeneric Product
FAQ
Can you provide calibration report of PM300 flush diaphragm waterproof pressure sensor ?
Yes, VOLLTEL can provide calibrationreport.
Can you accept OEM brand?
Yes, VOLLTEL can accept OEM brand without extra charge.
Can you offer samples?
Yes, you can apply for sample testing.
Warranty=?
12 months (option 18 months)
How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
What pressure range should I work in?
A gauge range of twice the working pressure is generally selected.The working pressure in all cases should be limited to 75% of the gauge range. Where alternative pressure and pulsation are encountered, working pressure should be limited to 2/3 of the gaugerange
What do I need to know to select the right product?
The following are the basics for most products used in industrial environments: Application - Pressure range -Temperature range-Medium - Pressure Connection
Can you accept OEM brand?
Yes, VOLLTEL can accept OEM brand without extra charge.
Can you offer samples?
Yes, you can apply for sample testing.
Warranty=?
12 months (option 18 months)
How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
What pressure range should I work in?
A gauge range of twice the working pressure is generally selected.The working pressure in all cases should be limited to 75% of the gauge range. Where alternative pressure and pulsation are encountered, working pressure should be limited to 2/3 of the gaugerange
What do I need to know to select the right product?
The following are the basics for most products used in industrial environments: Application - Pressure range -Temperature range-Medium - Pressure Connection
