Quick Details
-
Mold Height(mm):
-
150 - 360 mm
-
Ejector Number:
-
27
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
27 kN
-
Theoretical Shot Volume(cm³):
-
140 cm³
-
Injection Rate (g/s):
-
59 g/s
-
Injection Weight (g):
-
128 g
-
Screw Speed (rpm):
-
0 - 220 rpm
-
Screw diameter (mm):
-
34 mm
-
Screw L/D Ratio:
-
21.7
-
Distance between Tie Bars:
-
360*360
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
PSJ-90-16
-
Brand Name:
-
Plastar
-
Power (kW):
-
11 kW
-
Applicable Industries:
-
industrial manufacture plastic machinery
-
Product name:
-
Plastic Injection Moulding Machine
-
Keyword:
-
PC.ABS.LCP.PP.PVC Plastic Injection Machine
-
Injection pressure:
-
218Mpa
-
Product:
-
PP PVC ABS TPE
-
Used for:
-
Plasic Products
-
Application:
-
Inserting Plastic Products
-
Certification:
-
ISO9001 CE
-
After-sales Service Provided:
-
Field Installation
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
360mm
-
Distance between Tie Bars(Height)(mm):
-
360mm
-
Plasticizing Capacity(g/s):
-
14
-
Mold Height(mm):
-
150 - 360 mm
-
Ejector Number:
-
27
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
27 kN
-
Theoretical Shot Volume(cm³):
-
140 cm³
-
Injection Rate (g/s):
-
59 g/s
-
Injection Weight (g):
-
128 g
-
Screw Speed (rpm):
-
0 - 220 rpm
-
Screw diameter (mm):
-
34 mm
-
Screw L/D Ratio:
-
21.7
-
Distance between Tie Bars:
-
360*360
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
PSJ-90-16
-
Brand Name:
-
Plastar
-
Power (kW):
-
11 kW
-
Applicable Industries:
-
industrial manufacture plastic machinery
-
Product name:
-
Plastic Injection Moulding Machine
-
Keyword:
-
PC.ABS.LCP.PP.PVC Plastic Injection Machine
-
Injection pressure:
-
218Mpa
-
Product:
-
PP PVC ABS TPE
-
Used for:
-
Plasic Products
-
Application:
-
Inserting Plastic Products
-
Certification:
-
ISO9001 CE
-
After-sales Service Provided:
-
Field Installation

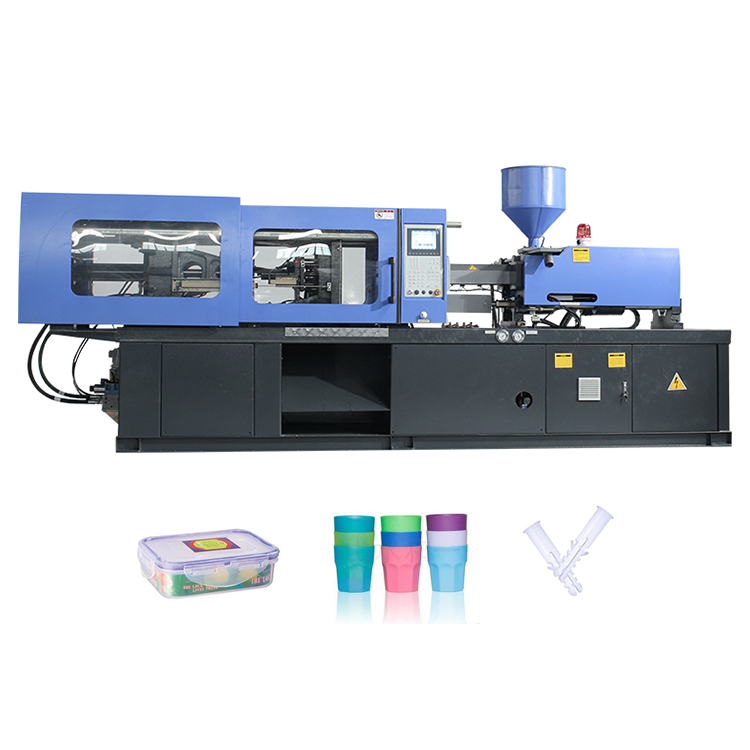

Injection Molding Machine
PSJ-90
Professional Injection Molding Machine Supplier,
Service The Global Factories More Than 5000+
Service The Global Factories More Than 5000+
VIP Services
We Will Help You Choose The Most Suitable Machinery
To Win Business Opportunities
Contact us
To Win Business Opportunities
Contact us
1.Professional Engineers On-site Diagnosis
2.countries:Peru, Colombia, Ecuador
2.countries:Peru, Colombia, Ecuador
3.
Welcome To Visit Our Factory o make an Appointment
4.
Invitation Letter
5.Member Gift
6.0n-site preferential price
5.Member Gift
6.0n-site preferential price
7.
Contact UsTo Get The Latest Industry Information And Technical vices
|
Aparato
|
Item
|
Unidad
|
PSJ-90
|
|
|
||
|
|
|
|
A
|
B
|
C
|
||
|
Inyección
|
Screw diameter
|
mm
|
34
|
36
|
40
|
||
|
|
Screw L/D ratio
|
L/D
|
21.7
|
21.1
|
19
|
||
|
|
Theoretical shot volume
|
cm3
|
140
|
158
|
195
|
||
|
|
Injection weight(PS)
|
g
|
128
|
143
|
177
|
||
|
|
Injection pressure
|
MPa
|
218
|
194.4
|
157.5
|
||
|
|
Injection rate(PS)
|
g/s
|
59
|
69
|
86
|
||
|
|
Plastizing capacity(PS)
|
g/s
|
10.4
|
11.8
|
14
|
||
|
|
Screw speed range
|
r/min
|
0~220
|
|
|
||
|
Bloqueo
|
Clamping force
|
kn
|
900
|
|
|
||
|
|
Clearance between tie bars
|
mm
|
360*360
|
|
|
||
|
|
Opening stroke
|
mm
|
330
|
|
|
||
|
|
Max mould height
|
mm
|
360
|
|
|
||
|
|
Min mould height
|
mm
|
150
|
|
|
||
|
Otros
|
Ejector force
|
kn
|
27
|
|
|
||
|
|
Ejector stroke
|
mm
|
100
|
|
|
||
|
|
Pump power
|
kw
|
11
|
|
|
||
|
|
Heating power
|
kw
|
6.21
|
|
|
||
|
|
Oil tank capacity
|
l
|
180
|
|
|
||
|
|
Machine weight
|
t
|
3.5
|
|
|
||
|
|
Machine dimension
|
m
|
3.95*1.15*1.7
|
|
|
||
Compatible
A variety of mold
