Quick Details
-
Application:
-
Exterior
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
BARDISS
-
Material:
-
aluminum alloy
-
Size:
-
customized
-
Thickness(mm):
-
2.0, 2.5, 3.0, 4.0
-
Style:
-
modern
-
Pattern:
-
as per customer drawing
-
Color:
-
solid color, metallic color, wood grain, marble grain
-
Finish:
-
powder coating, PVDF coating or heat transfer, UV printing
-
Process:
-
cutting, bending or rolling arc, welding, riveting, grinding, coating
-
Feature:
-
acoustic, fireproof, waterproof, heat insulation
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Online install guide
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Exterior
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
BARDISS
-
Material:
-
aluminum alloy
-
Size:
-
customized
-
Thickness(mm):
-
2.0, 2.5, 3.0, 4.0
-
Style:
-
modern
-
Pattern:
-
as per customer drawing
-
Color:
-
solid color, metallic color, wood grain, marble grain
-
Finish:
-
powder coating, PVDF coating or heat transfer, UV printing
-
Process:
-
cutting, bending or rolling arc, welding, riveting, grinding, coating
-
Feature:
-
acoustic, fireproof, waterproof, heat insulation

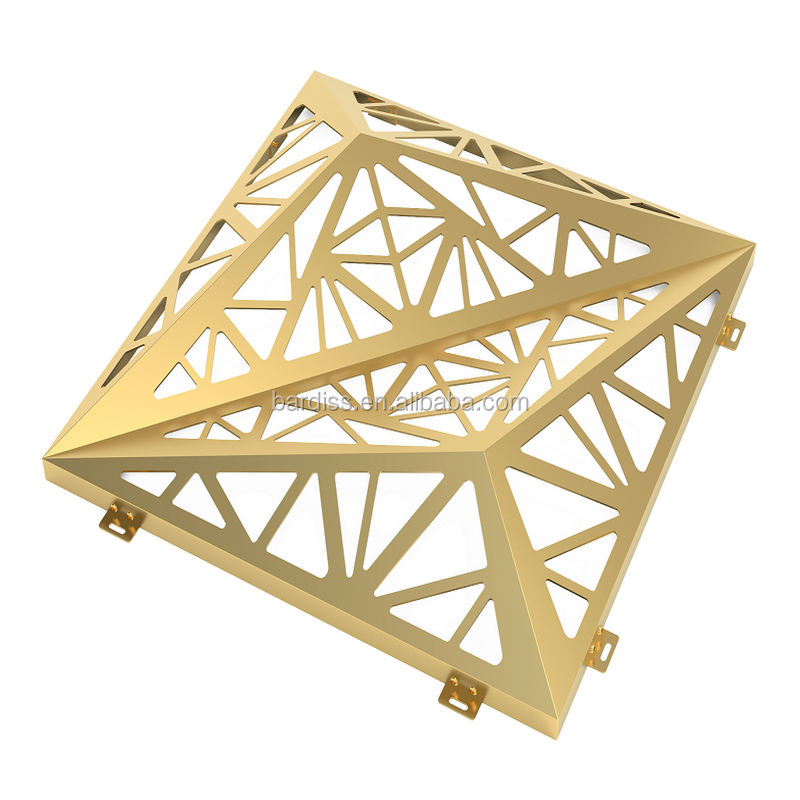

3D wall panel used widely in modern building decoration, both for interior and exterior. The panel is made of high-quality, high-strength aluminum alloy sheet, and its common thickness is 1.5, 2.0, 2.5, 3.0mm and so on, the material code is 3003, and the status is H24. The standard size is 1220×2440mm. The maximum size of the formed aluminum veneer can reach 1500x4000mm.
Its structure is mainly composed of panels, stiffener and brackets. The brackets can be directly formed by bending and punching on the panel. Or it can be fix by riveting the brackets on the small side of the panel. The reinforced ribs are connected to the welding screws behind the board surface, making it a solid whole, which greatly enhances the strength and rigidity of the aluminum curtain wall, ensuring the flatness, wind and earthquake resistance in long-term use.
PVDF is the best solution for exterior application. Besides, we offer normal powder coating, exterior powder coating, polyester powder, polyester painting, anodize and so on.
We have solid color, metallic color, marble grain and wood grain for your choice, In order to make your project unique, we also offer UV printing and 3D printing, we can print any image on the surface.
The thickness of the aluminum veneer for the outdoor arc-shaped column should above 2.5mm; the thickness of the low-rise and podium parts can be 2.0mm, and the thinnest 1.0mm or 1.5mm for indoor walls and ceilings.
From top to bottom, the processed fluorocarbon-coated plates are: protective film layer, fluorocarbon resin PVDF system (from top to bottom in three coats: vanish, topcoat, primer), pretreatment layer, aluminum plate layer , Pretreatment layer, back coating (double-sided spraying). According to customer requirements, mineral wool and rock wool can be added on the back of the aluminum plate to enhance thermal insulation and sound insulation.
|
Material |
aluminum alloy such as AA1100, 3003, 5005, 6063 etc. |
|
Size |
customized (max size 2000Wx6000Lmm) |
|
Thickness |
1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm etc. |
|
Design |
as per customer drawing or choose from our current pattern |
|
Color |
solid color (RAL), metallic color, wood grain, marble grain, granite grain... |
|
Surface treatment |
powder coating, PVDF coating, anodizing or heat transfer |
|
Process |
cutting, bending or rolling arc, welding, riveting, grinding, coating, packing |
|
Application |
Building decoration such as ceiling, wall cladding (exterior and interior), pillar or escalator wrap... |
|
Feature |
aesthetic appearance, acoustical performance, fireproof, heat insulation... |
|
Package |
Plywood Cases |
|
Warranty |
20 years |
Advantage
1. Fast and easy to install;
2. Thermal insulation reduces energy consumption;
3. Free maintenance;
4. customized available;
5. Durable;
6. Recyclable.
The painting area will stick protective film, panel will be packed with bubble wrap. You also can choose wooden case, but we'll charge extra.
When in negotiation, we offer free design consulting, 3D mould and technical support. And we can offer free sample(small sample) and color sample for you to check quality before place order.
After you received the cargo, we can also provide online installation guide or onsite installation guide.
