Quick Details
-

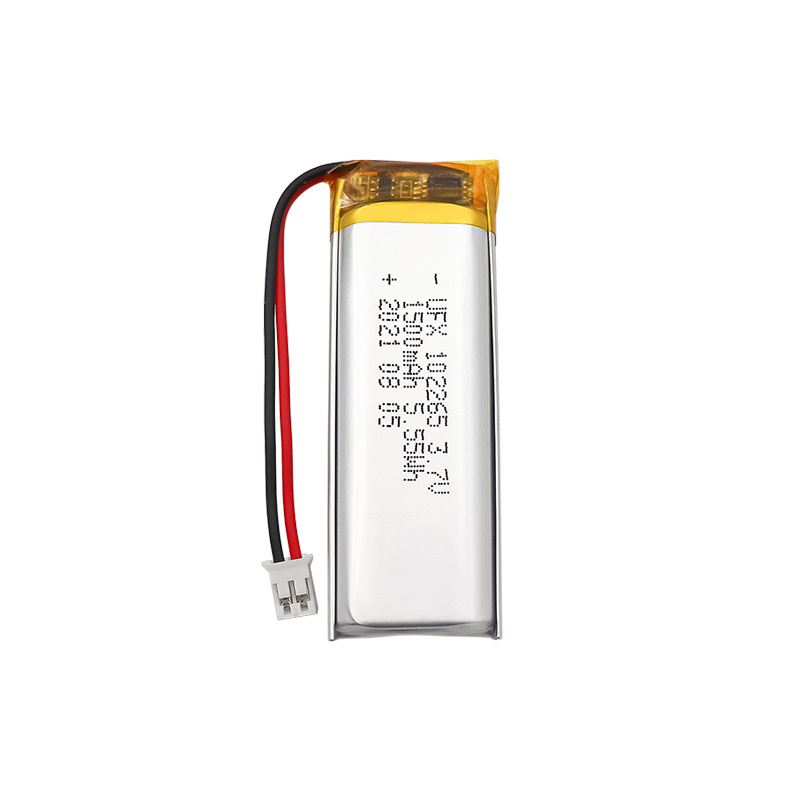

Model Number:
-
UFX 102265
-
Battery Size:
-
10*22*67mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
23
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Battery cell:
-
3.7V
-
Warranty:
-
12 months
Quick Details
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Home Appliances, Electric Power Systems
-
Brand Name:
-
Ufine
-
Model Number:
-
UFX 102265
-
Battery Size:
-
10*22*67mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
23
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Battery cell:
-
3.7V
-
Warranty:
-
12 months
Specification
|
1、Mechanical Characteristics
|
|
|
|
|||
|
Cell:
|
UFX102265
|
PCM:
|
Yes
|
|||
|
NTC:
|
No
|
Weight:
|
appr. 28g
|
|||
|
Configuration:
|
1S1P
|
|
|
|||
|
2、Electrical Specification
|
|
|
|
|||
|
Capacity:
|
1500mAh
|
Nominal Voltage:
|
3.7V
|
|||
|
Energy:
|
5.55Wh
|
Internal Impedance：
|
less than 180mΩ
|
|||
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
|||
|
Max. Charge Current:
|
1500mA
|
Max. Discharge Current:
|
1500mA
|
|||
|
Standard Charge Current:
|
750mA
|
Standard Discharge Current:
|
750mA
|
|||
|
Charge Temp. Range:
|
10°C to 45°C
|
Discharge Temp. Range
|
-20°C to 60°C
|
|||
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life:
|
100 cycles ≥92%
|
|||
|
|
3 moths at -20℃ to +45℃
|
|
300 cycles ≥88%
|
|||
|
|
1 month at -20℃ to +60℃
|
|
500 cycles ≥80%
|
|||
|
3、Cell protection
|
|
|
|
|||
|
Overcharge Detection ：
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection：
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
|||
|
Overcurrent Detection：
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection：
|
Yes
|
|||
Products Description
Ufine is a manufacturer with independent research and development and production of polymer lithium-ion batteries. With years ofexperience in the field of polymer lithium-ion battery solutions, We have accumulated rich technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.
