- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full color
-
Panel Size:
-
256*256mm, 256*256mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH4
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
62500 pixels, 62500 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
64*64, 64*64 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-

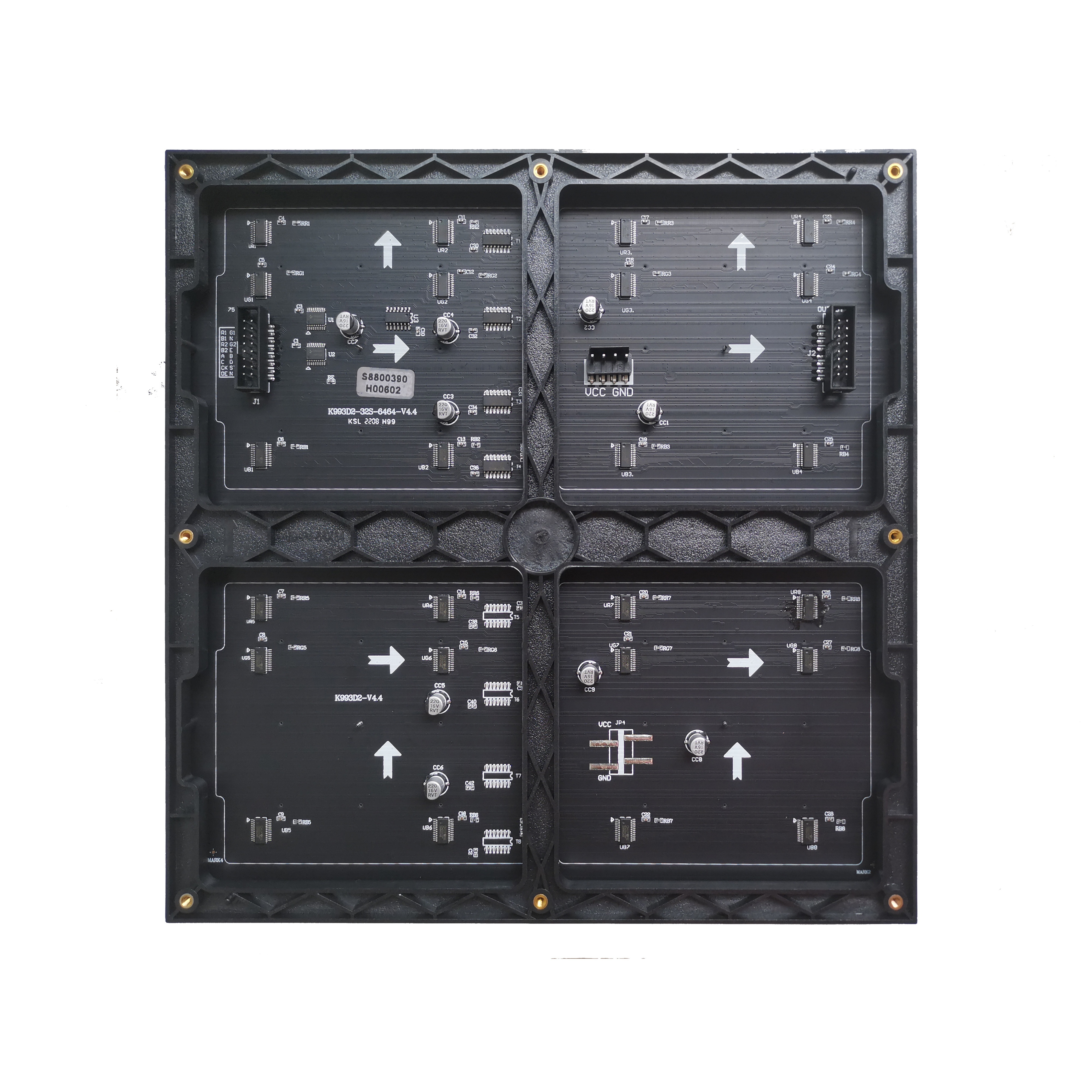

P4 Indoor Led Panel Module
-
Refresh rate:
-
1920Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
256*256mm
-
Scan mode:
-
1/32scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Chipstar
-
Color:
-
Full color
-
Panel Size:
-
256*256mm, 256*256mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH4
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
62500 pixels, 62500 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
64*64, 64*64 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P4 Indoor Led Panel Module
-
Refresh rate:
-
1920Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
256*256mm
-
Scan mode:
-
1/32scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Product Description
Specification
|
Module
|
Pixel pitch
|
4 mm SMD2121
|
|
|
Pixel Density
|
62500 pixels/m2
|
|
|
LED Configuration
|
1R1G1B (options:Nation star, Sanan, Kinglight)
|
|
|
Drive Method
|
1/32 scan
|
|
Cabinet
|
Cabinet Resoltuion
|
256*256 Pixels
|
|
|
Cabinet Size
|
1024*1024 mm
|
|
Optical
|
Brightness
|
≥ 800cd/m2
|
|
|
Viewing angle
|
H/V 120 / 100
|
|
|
Best Viewing Distance
|
4m
|
|
|
Display Color
|
16.7 million
|
|
|
Grey Scale
|
10bits/1024levels
|
|
Power
|
Max power consumption
|
450 W/m2
|
|
|
Ave power consumption
|
250 W/m2
|
|
|
Working Voltage
|
220V / 110V
|
|
Control system
|
Frame Frequency
|
60-85Hz
|
|
|
Refresh Rate
|
≥1920Hz
|
|
|
Data Transmission
|
CAT 5 / Optic Fiber
|
|
|
Image Source
|
S-Video, PAL/ NTSC
|
|
|
Controlling system
|
linsn or Nova receiving card
|
|
|
Format
|
Video: DVI, VGA, composite
|
|
Reliability
|
Working Temperature
|
-20~65 °C
|
|
|
Working Humidity
|
10-95% RH
|
|
|
Life Span
|
100,000 Hours
|
|
|
MTBF (Ave No Faliure Time)
|
5000 Hours
|
|
|
Pixel failing Rate
|
0.01%
|
|
|
IP Rate
|
front : IP 65
|
Project Cases
Packing & Delivery
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing Shipping Method:
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
