Quick Details
-
Brand Name:
-
PK
-
Model Number:
-
CB-1500
-
Temperature:
-
-20~ -16 °C, -20~ -16 °C
-
Climate Type:
-
Fan cooling
-
Refrigerant:
-
R404, R134A
-
Compressor:
-
Import Danfoss
-
Size:
-
1500*1130*1250mm
-
Volts:
-
220/110 V 50-60Hz
-
defrost system:
-
automatical defrost system
-
Material:
-
Stainless steel, glass
-
cooling type:
-
motor fan cooling
-
warranty:
-
2 years
Quick Details
-
Style:
-
Single-Temperature
-
Capacity:
-
1/3*4''12pans, 1/3*4''12pans
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PK
-
Model Number:
-
CB-1500
-
Temperature:
-
-20~ -16 °C, -20~ -16 °C
-
Climate Type:
-
Fan cooling
-
Refrigerant:
-
R404, R134A
-
Compressor:
-
Import Danfoss
-
Size:
-
1500*1130*1250mm
-
Volts:
-
220/110 V 50-60Hz
-
defrost system:
-
automatical defrost system
-
Material:
-
Stainless steel, glass
-
cooling type:
-
motor fan cooling
-
warranty:
-
2 years
1.
Parameter of Ice Cream Display Showcase/Ice Cream Showcase Freezer
accept customized cooler or size or shape
| 1. | Model | CB-1500 |
| 2. | Size | 1500*1130*1250mm |
| 3. | Volts | 220/110V 50-60Hz |
| 4. | Frequency | 50/60 |
| 5. | Power | 1060W |
| 6. | Weight | 190kg |
| 7. | Refrigerant | R134A |
| 8. | Capacity | 1/3*4''15pans |
| 9. | Conpressor | imort Danfoss fan cooling |
| 10. | Temperature | -20~ -16 °C |
| 11. | Front side | 3 layers glass, total thickness:25mm |
| 12. | Two sides | 2 layers glass, total thickness:25mm |
| 13. | Back side | 2 layers glass thickness:15mm |
2.

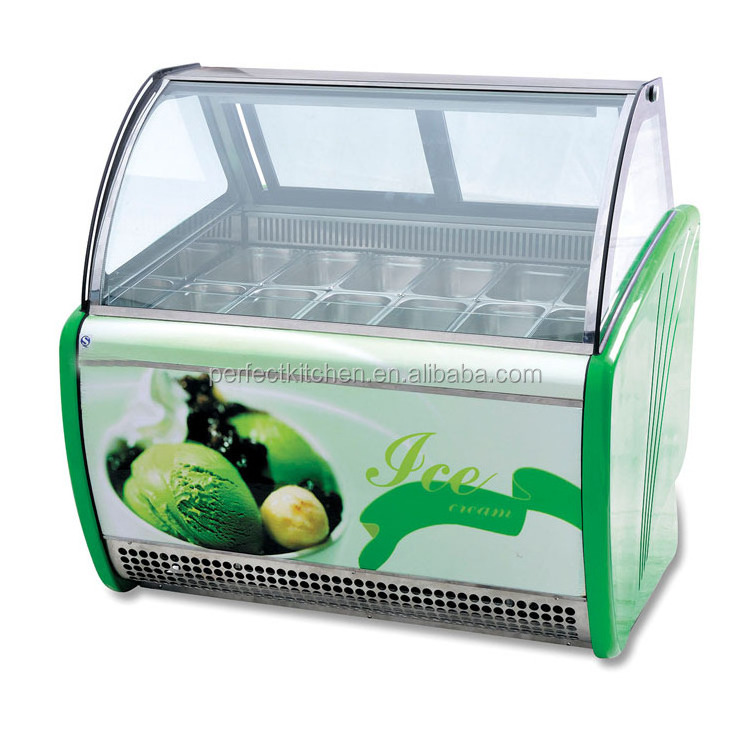

View of
Ice Cream Showcase Freezer
| Model | Size(mm)L*W*H | Temperature (°C) | Volts(V) | Power(W) | Weight(kg) | Capacity(pan) |
| CB-1200 | 1200*1130*1250 | -20~-16 | 220/110 | 780 | 170 | 1/3*4"*12pcs |
| CB-1500 | 1500*1130*1250 | -20~-16 | 220/110 | 910 | 210 | 1/3*4"*16pcs |
| CB-1800 | 1800*1130*1250 | -20~-16 | 220/110 | 1500 | 270 | 1/3*4"*20pcs |
| CB-2000 | 2000*1130*1250 | -20~-16 | 220/110 |
1920 |
320 | 1/3*4"*24pcs |
3. Features of Ice Cream Showcase Freezer
1>
Glassfiber reinforced plastics and stainless steel body, good looking and durable;
2>
The pans can be put in and take out freely, and easy for cleaning, and also can
change the size depend on the customer's requirements;
3>
Forced air circulation means, cooling fast, temperature uniformity;
4>
High quality compressor, brand'Tecumseh', quiet and energy-saving;
5>
R404 Refrigerant, CFC-free, Environmental Protection;
6>
Power, volts, and frequency depends on the customers' requirements;
7>
Temperature of cooling cabinet is -20°C~-16°C.
8> Temperature difference among the pans less then 2 ℃
9> Antomatically defog and defrost system; Four casters, easy to move
10> There are 3 temperature probes. One is over temperature probe; another is over
heat probe for compressor; the third is over frost probe. The over heat probe is
very useful to protect the compressor and prolong its life.
