Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
name:
-
leveling caster
-
Housing:
-
aluminium alloy
-
plate:
-
steel plate
-
Finish:
-
dacromet
-
Size:
-
60 80 100
-
Load capacity:
-
50-750kg per caster
-
Fitting:
-
plate type / thread stem type
-
Applications:
-
workbench/machine etc.
-
Feature:
-
height adjustable/retractable wheel
Quick Details
-
Material:
-
nylon +metal, nylon wheel+rubber base
-
Type:
-
Plate Casters, Stem Casters
-
Model Number:
-
GDR
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
name:
-
leveling caster
-
Housing:
-
aluminium alloy
-
plate:
-
steel plate
-
Finish:
-
dacromet
-
Size:
-
60 80 100
-
Load capacity:
-
50-750kg per caster
-
Fitting:
-
plate type / thread stem type
-
Applications:
-
workbench/machine etc.
-
Feature:
-
height adjustable/retractable wheel

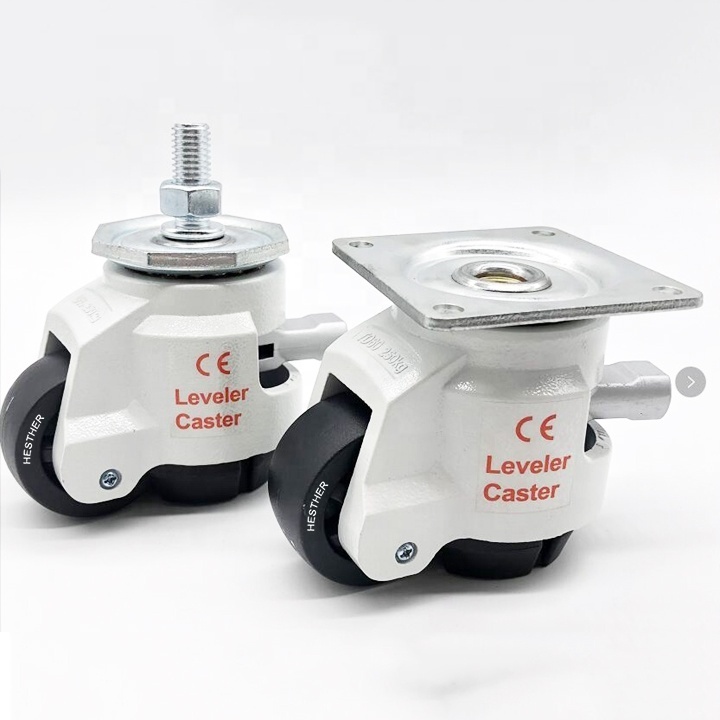

gdr60 rachet handle adjustable caster wheels leveling wheel and caster
This one is the newest design with easiest adjustment by truning the handle, much more conveneint
- Footmaster design , leveling caster , GDR Series.
- Allows machines to be kept out of the way when not in use and make it easier to add to a line when needed.
- GD 60, 80, 100 are available .
- Load capacity up to 750kg each caster .
- At least 300 hours salt and spray test
- 7- 10 times anti rust than normal casters
- No poison, no pollution
- More stable , more durable
p=plate type , S=thread stem type
|
Series |
GDR |
||
|
Code |
60P/S |
80P/S |
100P/S |
|
Wheel (DXW) |
50x24 |
62X30.7 |
75X32 |
|
Plate size |
73X73X5mm |
90X90X5mm |
95X95X5mm |
|
Hole Dia |
7mm |
9mm |
11mm |
|
Hole Center |
58X58mm |
70x70mm |
70x70mm |
|
Stem Size |
M12X40 |
M14X40 |
M14X40 |
|
Total Height |
85+10 |
110+12 |
120+12 |
|
Tread Hardness |
65-75D |
65-75D |
65-75D |
|
Temperature |
-35-135 |
-35-135 |
-35-135 |
|
Load Capacity/pc |
250kg |
500kg |
750kg |
|
Load/4pcs |
500kg |
1000kg |
1500kg |
|
Advantages: |
|
Rachet design, easier adjustment |
|
Height adjustable , solving the problem caused by uneven ground or height error of casters |
|
Finish is dacromet, which anti rust 7-10 times more than normal electroplating. |
|
Approved at least 300 hours salt and spray test |
|
Both material and finish are environmental-friendly |
|
Color can be ordered to coordinate with the room furniture. |
Contact us to get price for other sizes>>>
Routine stocks are white color, other color can be customized
