Quick Details
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Famous Brand
-
Weight:
-
15400 kg
-
Dimension(L*W*H):
-
8900*2625*3420
-
Product name:
-
Wheel Motor Grader
-
Brand:
-
Chian TOP Brand
-
After Warranty Service:
-
Service
-
Application:
-
Building
-
Rated Power:
-
242
-
Engine Model:
-
Q5L8.9-C325
-
Origin:
-
China Original
-
Engine:
-
Cummins
-
Drive Type:
-
4x4 Wheel Drive
-
Keywords:
-
Motor Grader
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
Cummins
-
Working diameter:
-
3960mm
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Famous Brand
-
Weight:
-
15400 kg
-
Dimension(L*W*H):
-
8900*2625*3420
-
Product name:
-
Wheel Motor Grader
-
Brand:
-
Chian TOP Brand
-
After Warranty Service:
-
Service
-
Application:
-
Building
-
Rated Power:
-
242
-
Engine Model:
-
Q5L8.9-C325
-
Origin:
-
China Original
-
Engine:
-
Cummins
-
Drive Type:
-
4x4 Wheel Drive
-
Keywords:
-
Motor Grader

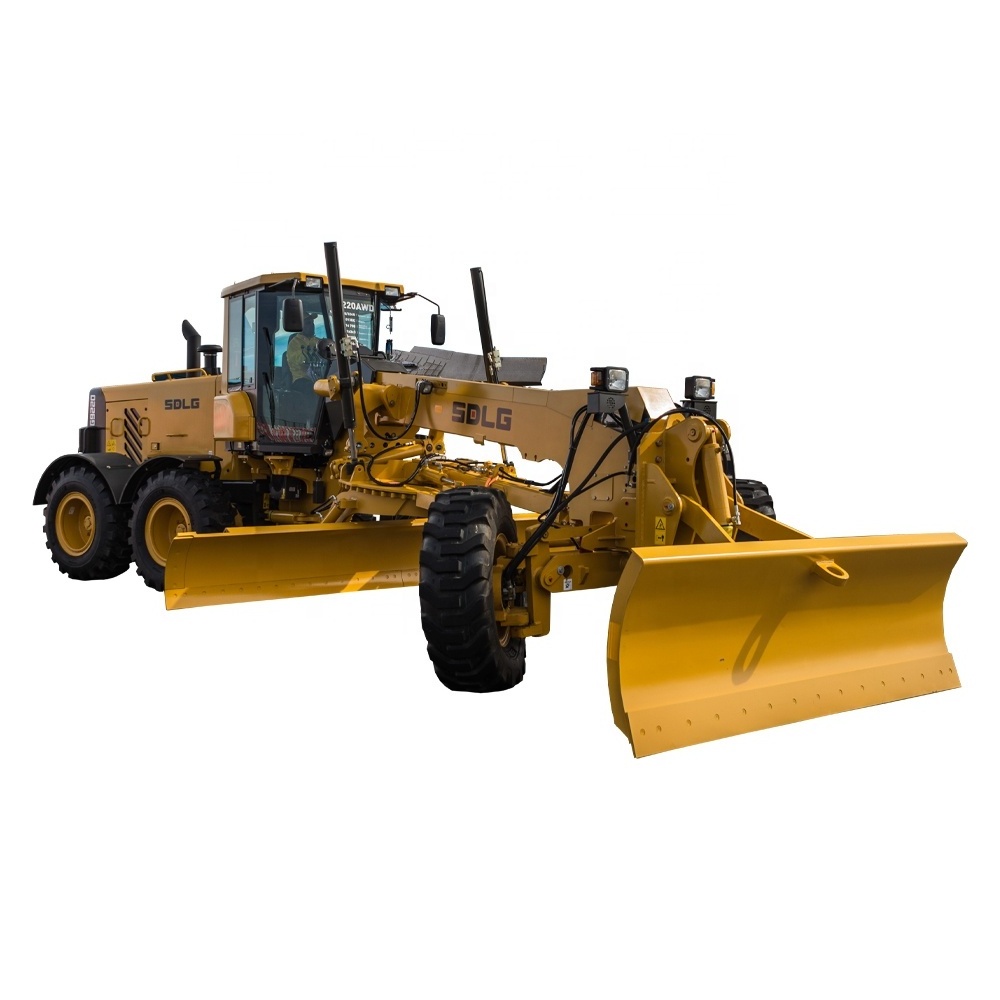

Popular Road Maintenance Grader 180hp Motor Grader
| Model | GR135 | GR165 | GR2403 | GR3005 |
| Forward Speed( KM/H ) | 5/13/20/42 | 5/11/19/38 | 5//11/23/38 | 5/11/23/40 |
| Reverse Speed ( KM/H ) | 5/13/30 | 5/11/23 | 5/11/23 | 5/11/13 |
| Operating Mass (T ) | 11.2 | 15 | 17 | 28.5 |
| Traction Force ( KN ) | 59 | 77 | 87 | 140 |
| Minimum Turning Radius ( MM ) | 6600 | 7300 | 7300 | 9000 |
| Length of Shvel Blade ( MM ) | 3660 | 3660 | 3965 | 4572 |
| Engine brand | Cummins | C ummins | C ummins | C ummins |
| Engine model | 6BTA5.9 | 6BTA5.9 | QSB6.7 | Q5L8.9-C325 |
| Engine power ( KW ) | 112 | 132 | 178 | 242 |
| Length ( MM ) | 8015 | 8900 | 8970 | 10923 |
| Width ( MM ) | 2380 | 2625 | 2625 | 3270 |
| Height ( MM ) | 3050 | 3420 | 3420 | 3850 |
Other spare parts
Q1:What types of currency are accepted?
A:Mostly currencies are acceptable, such as USD, EUR, JPY.
Q 2 :What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term, sometime DP term.
(1) On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
(2) On L/C term, a 100% irrevocable L/C without "soft clauses" from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
Q 3 : Which Incoterms 2010 can we work?
A:We can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as FOB, CFR, CIF, CIP, DAP.
Q 4 :How do I make sure that the goods are dispatched on time after payment?
A: We will ask you to visit our factory, and we can also provide you with photos of the goods being shipped.
Q 5 :What is the shipping time after dispatch ?
A:The shipping time for each region is as follows:
Southeast Asia: 7-10 days to the port;
Middle East: 15-25 days
East Africa: about 25 days;
South Africa: 20-40 days;
West Africa: about 45 days;
Europe: 30-40 days;
North America: 12-17 days;
South America: 25-30 days.
