Quick Details
-
After-sales Service Provided:
-
Online support, Video technical support
-
Tank Volume:
-
5000 liters
-
车身尺寸:
-
5990x2000x2500 mm
-
Place of Origin:
-
China
-
Brand Name:
-
CLW
-
Product name:
-
Sewage Vacuum Tank Trucks
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Online support, Video technical support
-
Tank Volume:
-
5000 liters
-
车身尺寸:
-
5990x2000x2500 mm
-
Place of Origin:
-
China
-
Brand Name:
-
CLW
-
Product name:
-
Sewage Vacuum Tank Trucks

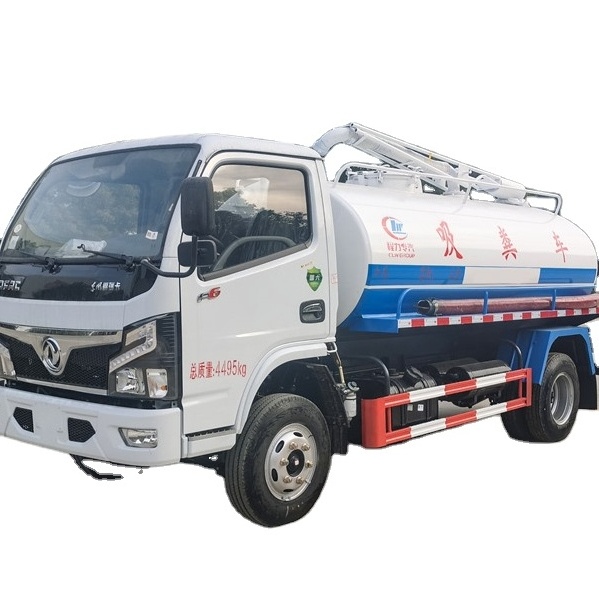

4x2 Dongfeng 2,000 liters to 5,000 liters Fecal Suction Truck
Products Description
Product Paramenters
|
Item name
|
|
Sewage suction truck
|
|
|
|||
|
Dimension
|
|
5995×2010×2500 mm
|
|
|
|||
|
Total weight
|
|
7360 kg
|
|
|
|||
|
Curb weight
|
|
3705 kg
|
|
|
|||
|
Loading capacity
|
|
3530 kg
|
|
|
|||
|
Wheelbase
|
|
3300 mm
|
|
|
|||
|
Chassis brand
|
|
Dongfeng
|
|
|
|||
|
Tire speficication
|
|
7.00R16 12PR
|
|
|
|||
|
Number of tires
|
|
6
|
|
|
|||
|
Fuel type
|
|
Diesel
|
|
|
|||
|
Engine model
|
|
YC4FA120-33
|
|
|
|||
|
Engine displacement
|
|
2982 cc
|
|
|
|||
|
Engine power
|
|
88 kw/ 120 hp
|
|
|
|||
|
Engine rate speed
|
|
2500 rpm
|
|
|
|||
|
Engine max torque / speed
|
|
345 N.m at 1400-1800 rpm
|
|
|
|||
|
Tank Capacity
|
|
5 m3
|
|
|
|||
|
Tank material
|
|
carbon steel 4mm
|
|
|
|||
|
Vertical suction
|
|
6 m
|
|
|
|||
|
Vacuum pump
|
|
SK-9 water cyclic
|
|
|
|||
|
Standard configuration
|
|
Including power take-off, transmission shaft, vacuum suction pump, high-pressure molding tank, water gas separator, oil gas
separation, multiple directional valve, suspender, fecal discharge valve, pipe network system, and equipped with a vacuum pressure gauge, sewage inspection window (pipe), and hand washing device. The suction truck produced by the company is installed with an imported overflow prevention device to prevent feces and sewage from being filled and flowing back into the vacuum pump system |
|
|
|||
Export Case
Delivery and Shipping
Concrete mixer truck shipping by RORO ship
Sewage suction truck shipping by RORO ship
Tipper truck shipping by bulk ship
Fire truck shipping by bulk ship
Road sweeper shipping by flat rack
LPG tank trailer shipping by flat rack
Light cargo truck shipping by container
Wrecker tow truck body parts shipping by container
