Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online
Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online

Multi Function Single Phase Prepaid Smart Electricity Energy Meter Support Radio Frequency Card and Prepayment Online

FOB Reference Price: Get Latest Price
≥1 Pieces
US $63
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Acrel
Model Number:
ADL100-EYZ
Accuracy Class:
1, 1
Output Voltage:
220V
Operating Temperature:
-25°C~+55°C
Dimensions:
88*72*70mm
Reference voltage:
220V
Input current:
10(60)A
Frequency:
45~65Hz
Communication:
RS485 Modbus RTU
Pulse constant:
1600imp/kWh
Pulse width:
80ms±20ms
Outline (Length*Width*Height):
88mm*72mm*70mm
Work temperature:
-25℃~55℃

Quick Details

Phase:
Single Phase
Measuring Energy Range:
0-99999.99Kwh
Place of Origin:
Shanghai, China
Brand Name:
Acrel
Model Number:
ADL100-EYZ
Accuracy Class:
1, 1
Output Voltage:
220V
Operating Temperature:
-25°C~+55°C
Dimensions:
88*72*70mm
Reference voltage:
220V
Input current:
10(60)A
Frequency:
45~65Hz
Communication:
RS485 Modbus RTU
Pulse constant:
1600imp/kWh
Pulse width:
80ms±20ms
Outline (Length*Width*Height):
88mm*72mm*70mm
Work temperature:
-25℃~55℃
General
ADL100-EY single phase wireless prepaid watt-hour meter,ADL300-EY three phase wireless prepaid watt-hour meter are used for calculating the single and three phase active energy respectively on the frequency of 50 Hz. The meter has functions of pre-paid, load controlling, time control and NB,2G,4G,RS485 communication etc.Products meet the Enterprise Standard Q31/0114000129c039-2019《Enterprise Standard for electronic prepayment watt-hour meter》
requirements.

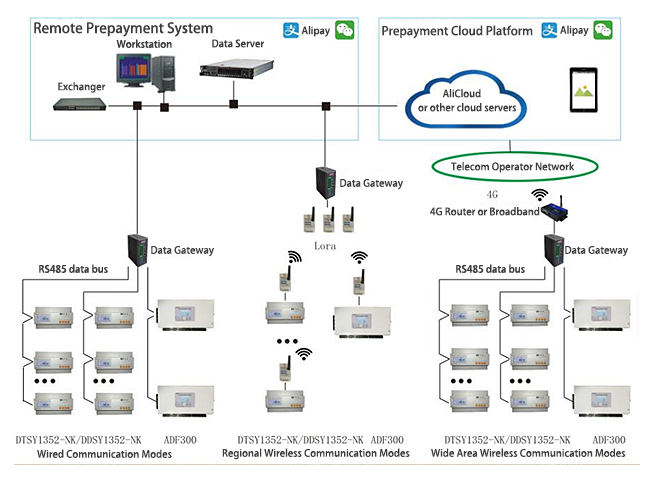

Network
Technical Parameters
Projects
ADL100-EY
ADL300-EY
Specification








Measurement



Voltage
Reference voltage
220V
3×220/380V
Consumption
<10VA(Single phase)
Impedance
>2MΩ
Accuracy class
Error±0.2%


Current
Input current
10(60)A
3×1(6)A, 3×10(80)A
Consumption
<4VA(Single phase rated current)
Accuracy class
Error±0.2%
Power
Active, reactive, apparent power, error±0.5℅
Frequency
45~65Hz,Error±0.2%

Meter
amount
Energy
Active energy
(Accuracy class:1)
Active energy
(Accuracy class:0.5)
Clock
≤0.5s/d

number
signal
Energy pulse output
1 active optocoupler output
Switching output
1 Switching output
2 Switching output

pulse
Width of pulse
80±20ms
Pulse constant
1600imp/kWh
6400imp/kWh,400imp/kWh











communication



RS485
Interface and
communication
RS485 :Modbus RTU
RS
485
Range of
communication
address

Modbus RTU:1~ 247
Baud rate
1200bps~19200bps

2G
Working band
GSM 850,EGSM 900,DCS 1800,PCS 1900
Transmission rate
Maximum rate of descent 85.6kbps,Maximum uplink speed 85.6kbps
GSM 990/1800 MHZ LTE-FDD B1/B3/B5/B8
LTE-TDD B34/B38/B39/B40/B41
The maximum downlink rate is 10Mbps and the maximum uplink rate is 5mbps

NB
Transmission rate
H-FDD B1 B3 B8 B5 B20
Transmission rate
Maximum rate of descent 25.2Kbps,Maximum uplink speed 15.62 Kbps



Environment
Relative temperature

-25℃~+55℃

Storage temperature

-40℃~+70℃

Relative humidity

≤95℅(No condensation)

Altitude

<2000m

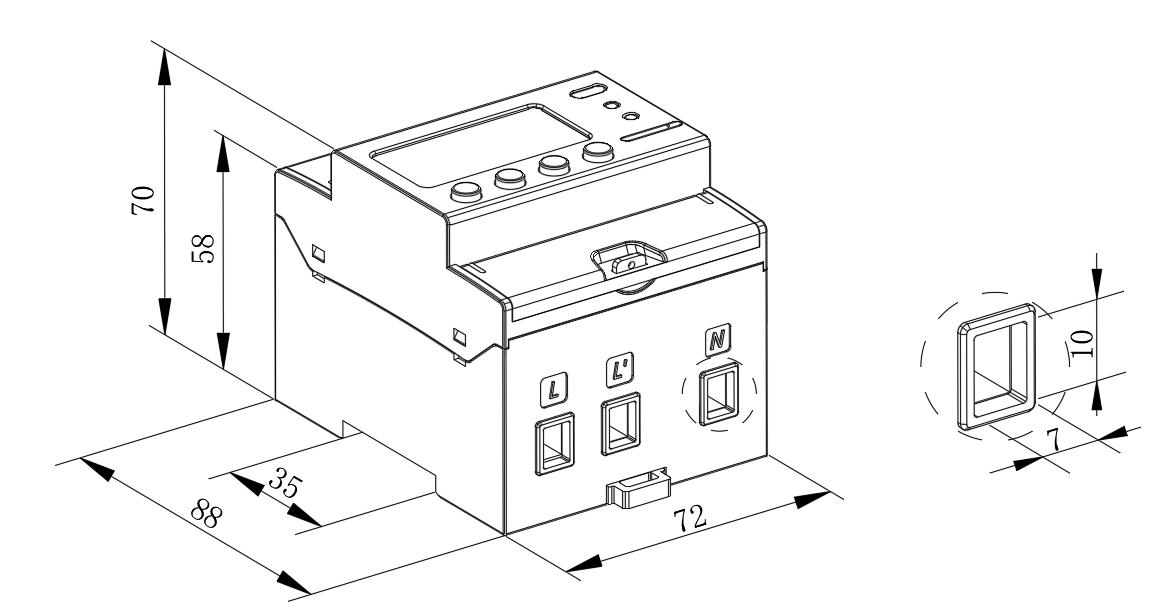

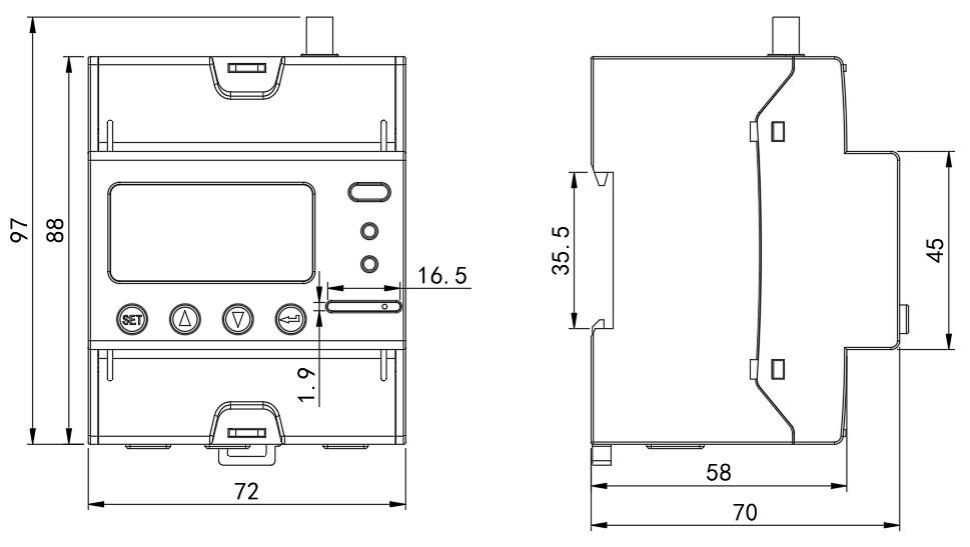

Dimension drawings (Unit: mm)
DDSY1352
ADL100-EY derect connect
ADL300-EY connect via CT
Note:The torque of direct connect should not be greater than 4.0N·m,and the torque of connect via CT should not be greater than 2.0N·m。
Wiring
Packing & Delivery
packed by carton
APP
Post My RFQ
