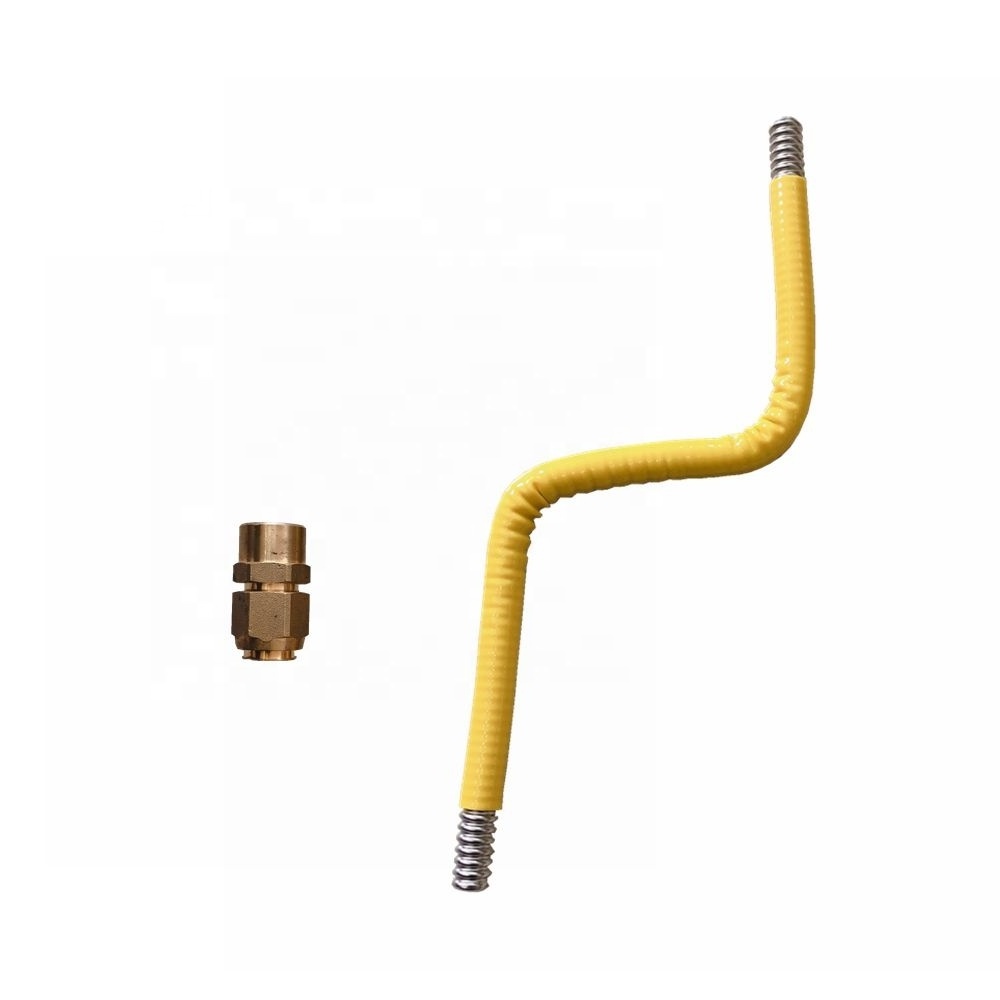

HONGWUGAS™ is a corrugated stainless steel pliable tubing complying with EN15266 "Stainless steel pliable corrugated tubing kits in buildings for gas". Manufacturing materials are: EN1.4404 type 316L corrugated stainless steel tubing with a minimum wall thickness of .3mm, jacketing of UV resistant polyethylene meeting the requirements of EN13501 for flame spread and smoke density. All mechanical tube fittings are DZR brass with our unique designed fittings.
see more on www.hongwugas.com
- Product Details
- {{item.text}}
Quick Details
-
Grade:
-
316L stainless steel
-
Place of Origin:
-
China
-
Brand Name:
-
HONGWUGAS
-
Model Number:
-
HONGWUGAS
-
Application:
-
gas pipeline
-
Name:
-
gas pipe stainless steel 316l flexible gas hose
-
Material:
-
stainless steel 316L
-
using:
-
gas system
-
characteristic:
-
flexible
-
Length:
-
15m/ 30m/ 45m/ 60m/ 75m/ 90m
-
Process method:
-
annealing
-
surface layer:
-
PE
-
thickness:
-
0.25-0.30mm
-
Keyword:
-
Gas pipe
-
Technique:
-
TIG Welded
-
Certification:
-
DIN EN15266/DVGW G5616
Quick Details
-
Type:
-
Welded
-
Steel Grade:
-
300 Series
-
Tolerance:
-
0.3
-
Grade:
-
316L stainless steel
-
Place of Origin:
-
China
-
Brand Name:
-
HONGWUGAS
-
Model Number:
-
HONGWUGAS
-
Application:
-
gas pipeline
-
Name:
-
gas pipe stainless steel 316l flexible gas hose
-
Material:
-
stainless steel 316L
-
using:
-
gas system
-
characteristic:
-
flexible
-
Length:
-
15m/ 30m/ 45m/ 60m/ 75m/ 90m
-
Process method:
-
annealing
-
surface layer:
-
PE
-
thickness:
-
0.25-0.30mm
-
Keyword:
-
Gas pipe
-
Technique:
-
TIG Welded
-
Certification:
-
DIN EN15266/DVGW G5616
HONGWUGAS System
Descrsption
Hotsale
|
Related Products
|
Male Fittings
|
Female Fittings
|
couplings & reducing unions
|
Mechanical Tees
|
|||
|
Fitting Material
|
CW612N
|
|
|
|
|||
|
Gasket Material
|
CW004A
|
|
|
|
|||
|
Application
|
Gas System
|
|
|
|
|||
Production Details
PE S urface layer
● Environmental protection
● Non-toxic
Metal connection
●
High temperature resistance
● Durable
Part List
|
Part No.
|
Description
|
Pkg. Qty.
|
|
GP-15-15
|
DN15 Corrugated Stainless Steel Tubing
|
15M
|
|
GP-15-30
|
DN15 Corrugated Stainless Steel Tubing
|
30M
|
|
GP-15-45
|
DN15 Corrugated Stainless Steel Tubing
|
45M
|
|
GP-15-75
|
DN15 Corrugated Stainless Steel Tubing
|
75M
|
|
GP-15-90
|
DN15 Corrugated Stainless Steel Tubing
|
90M
|
|
Part No.
|
Description
|
Pkg. Qty.
|
|
GP-20-15
|
DN20 Corrugated Stainless Steel Tubing
|
15M
|
|
GP-20-30
|
DN20 Corrugated Stainless Steel Tubing
|
30M
|
|
GP-20-45
|
DN20 Corrugated Stainless Steel Tubing
|
45M
|
|
GP-20-75
|
DN20 Corrugated Stainless Steel Tubing
|
75M
|
|
GP-20-90
|
DN20 Corrugated Stainless Steel Tubing
|
90M
|
|
Part No.
|
Description
|
Pkg. Qty.
|
|
GP-25-15
|
DN25 Corrugated Stainless Steel Tubing
|
15M
|
|
GP-25-30
|
DN25 Corrugated Stainless Steel Tubing
|
30M
|
|
GP-25-45
|
DN25 Corrugated Stainless Steel Tubing
|
45M
|
|
GP-25-75
|
DN25 Corrugated Stainless Steel Tubing
|
75M
|
|
GP-25-90
|
DN25 Corrugated Stainless Steel Tubing
|
90M
|
|
Part No.
|
Description
|
Pkg. Qty.
|
|
GP-32-15
|
DN32 Corrugated Stainless Steel Tubing
|
15M
|
|
GP-32-30
|
DN32 Corrugated Stainless Steel Tubing
|
30M
|
|
GP-32-45
|
DN32 Corrugated Stainless Steel Tubing
|
45M
|
|
GP-32-75
|
DN32 Corrugated Stainless Steel Tubing
|
75M
|
|
GP-32-90
|
DN32 Corrugated Stainless Steel Tubing
|
90M
|
Our Advantages
Affordable
Factory direct mode gives you the most affordable price.
Safe and reliable
Multiple inspections ensure quality.
Quality service
Professionals answer your questions.
Certification
l DIN EN15266: Stainless steel pliable corrugated tubing kits in buildings for gas
l DIN G5616: Stainless corrugated pipe kit for the gas installation
l ISO 9001:2008
l ISO 14001:2004
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: It is according to quantity.
Q: Do you provide sample? is it free or extra?
A: Yes, we can provide a small amount of samples for free.
