Very clear operation button ,each roller with separately,Emergency stop for safe working ,Other language supportive
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
10
-
Name:
-
wood brush sanding machine
-
material:
-
wood, plywood, WPC board,
-
Usage:
-
wood surface polishing
-
width:
-
630mm/1000mm/1300mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ludiao
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
10
-
Name:
-
wood brush sanding machine
-
material:
-
wood, plywood, WPC board,
-
Usage:
-
wood surface polishing
-
width:
-
630mm/1000mm/1300mm
Product Description
Product Application

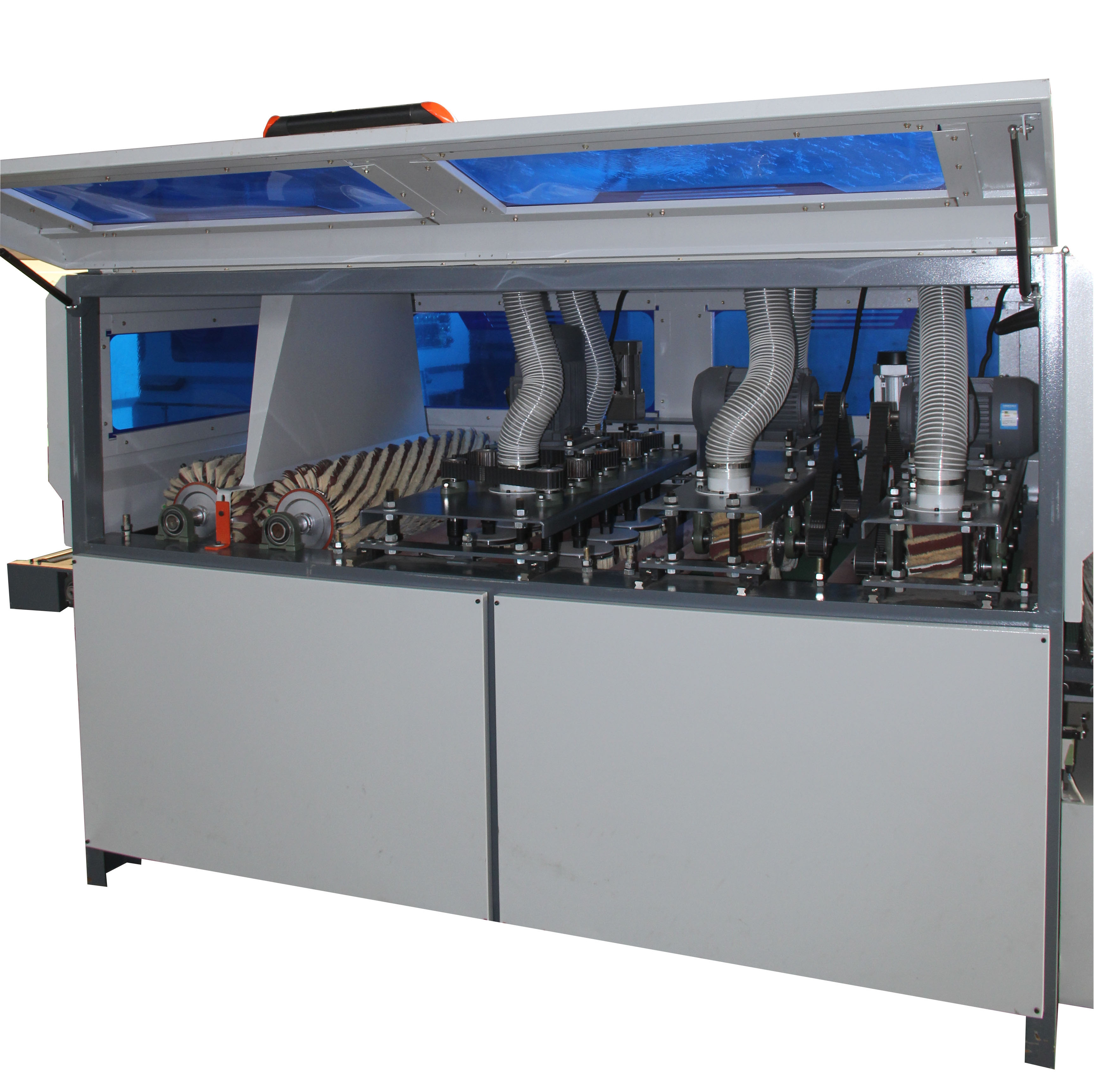

The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard, insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.
Technical parameter
Specification of wood brush sanding machine
model LD1300
max working width
1300mm
Polishing roll brushes 2 piece
Disk tray brushes 9piece
min working length 500mm
working thickness 3-110mm
feeding speed 6-30m/min
Speed 50-60m/min ,with inverter can be adjusted
Inverter 5.5KW+1.5kw
Driver motor 1 pic roller with one pic 2.2KW motor
Reducer motor 1.5kw
Table lift&down By button adjust,driving by motor 0.37KW
total power 11kw
belt size 1430*1800mm
air pressure 0.6mpa
net weight 1600kg
Voltage 220V,3P.60hz
package Wooden case
Main Features
1.This model applies to: door panels, relief, furniture, etc. it can work on convex shape grinding, broken ammonia, white stubble and painting polishing.
2.This Profile Brush Sander has four brush rollers at the back and 9 disc brushes in the front.
3.The Profile Brush Sander with 2 brushes can also be customized. The total length of the Profile Brush Sander is 2500mm for 2 rollers and 3000mm for four rollers.
4.The wood holding device is 500mm long. This wood sander can be used on solid wood, MDF, veneer board which can make Door line, Door frame, Baseboard, Frame, Blinds and other L type standard or non standard wood surface.
5.This wood sander can rough sand or fine sand, grind, and polish the surface for primer doors, cabinet doors with curves on the surface.
Certifications
Detailed Images
Main Features
Brush roller
With both linear and dics bush rollers.Linear brush better for falt board only which work in horizontal direction ,the dics brush roller work in longitudinal
Machine Parts
brush sisal strip
Main Features
Brush unit
Sisal strip ,a kind of hard and rough material with good friction and long using time , the sanding paper with different grain for different hardness material , for mdf,plywood,solid wood,we give different choice,which guarantee good brushing effect and protect board won;t get stretch
Each unit group with separately inverter.save electricity ,accurate working
Electrical parts
Adopts world brand electrical parts.like China CHNT.France Schneider,good stability,high safety,
Feeding roller& convey belt
.fasting feeding ,save human strength ,
Sturdy and durable conveyer belt
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
3000*2150*2300mm
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
