- Product Details
- {{item.text}}
Quick Details
-
Specification:
-
10m, 20m, 50m
-
Length:
-
custom
-
Thickness:
-
custom
-
Standard:
-
ISO9001, ISO9001:2015
-
Color:
-
transparent
-
MOQ:
-
2000 Meters
-
Application:
-
convey water
-
Sample:
-
Availiable
-
Working pressure:
-
4bar 5bar 6bar 7bar 8bar
-
OEM:
-
OEM Service
-
Temperature:
-
-10~65℃
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ean
-
Specification:
-
10m, 20m, 50m
-
Length:
-
custom
-
Thickness:
-
custom
-
Standard:
-
ISO9001, ISO9001:2015
-
Color:
-
transparent
-
MOQ:
-
2000 Meters
-
Application:
-
convey water
-
Sample:
-
Availiable
-
Working pressure:
-
4bar 5bar 6bar 7bar 8bar
-
OEM:
-
OEM Service
-
Temperature:
-
-10~65℃
Product Description
Specification

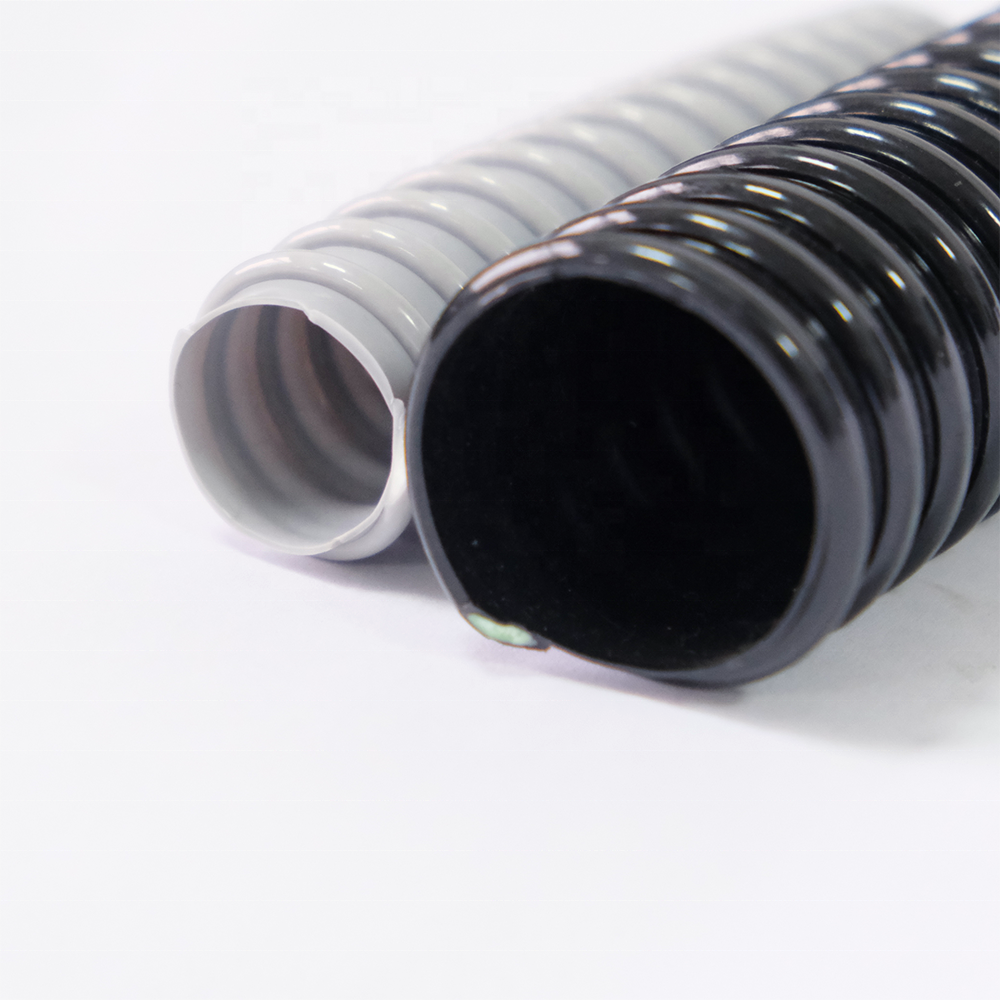

* Structural characteristics: PVC hose reinforced with plastic ribs, smooth inner wall; soft, tear-resistant, twist-resistant,
resistant to most chemicals, with good mechanical behavior.
* Application: Suitable for suction of gas, smoke, dust, sawdust and other fine particles, cable protection, agricultural
irrigation and other industry.
* Temperature range: -5 up to + 60℃
resistant to most chemicals, with good mechanical behavior.
* Application: Suitable for suction of gas, smoke, dust, sawdust and other fine particles, cable protection, agricultural
irrigation and other industry.
* Temperature range: -5 up to + 60℃
|
ID
|
THICKNESS
|
WEIGHT
|
BENDING RSDIUS
|
WP.
|
RESISTANT TO NEGATIVE PRESSURE
|
LENGTH
|
|
mm
|
mm
|
kg/m
|
mm
|
bar
|
bar
|
m/roll
|
|
20
|
0.7
|
0.12
|
30
|
1.5
|
0.5
|
25
|
|
25
|
0.7
|
0.175
|
38
|
1.5
|
0.55
|
25
|
|
32
|
0.8
|
0.22
|
48
|
1.4
|
0.5
|
25
|
|
38
|
0.8
|
0.265
|
57
|
1.3
|
0.5
|
25
|
|
40
|
0.9
|
0.29
|
60
|
1.3
|
0.5
|
25
|
|
45
|
0.9
|
0.355
|
68
|
1.3
|
0.5
|
25
|
|
50
|
0.9
|
0.41
|
75
|
1.3
|
0.5
|
25
|
|
63
|
0.9
|
0.53
|
95
|
1.1
|
0.45
|
25
|
|
75
|
1
|
0.7
|
113
|
1.1
|
0.4
|
25
|
|
90
|
1
|
0.78
|
135
|
1
|
0.4
|
25
|
|
100
|
1
|
0.98
|
150
|
1
|
0.4
|
25
|
|
125
|
1
|
1.3
|
188
|
0.7
|
0.35
|
10
|
|
150
|
1.1
|
1.7
|
225
|
0.5
|
0.35
|
10
|
|
200
|
1.2
|
2.17
|
300
|
0.3
|
0.3
|
10
|
Packing & Delivery
All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.
