Quick Details
-
Voltage:
-
380v
-
Power:
-
2.8-11.2KW
-
Dimension(L*W*H):
-
S M L XL
-
Key Selling Points:
-
Easy to Operate,Energy Saving,Multifunctional
-
Weight (KG):
-
350
-
Product name:
-
Heat Pump Dryer
-
Brand name:
-
Hello River
-
Certification:
-
CE
-
Temperature range:
-
0-75
-
Suitable for drying:
-
Sweat potato,Cassava Starch,Bamboo shoot, Ginger etc.
-
Usage:
-
PLC intelligent control
-
Function:
-
Hot air circulation+Drying+Dehumidity
-
Advantage1:
-
Easy Operation High Efficiency
-
Advantage2:
-
Saving Drying Cost
-
Weight:
-
300-1000kg
Quick Details
-
Type:
-
Hot Air Drying machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HelloRiver
-
Voltage:
-
380v
-
Power:
-
2.8-11.2KW
-
Dimension(L*W*H):
-
S M L XL
-
Key Selling Points:
-
Easy to Operate,Energy Saving,Multifunctional
-
Weight (KG):
-
350
-
Product name:
-
Heat Pump Dryer
-
Brand name:
-
Hello River
-
Certification:
-
CE
-
Temperature range:
-
0-75
-
Suitable for drying:
-
Sweat potato,Cassava Starch,Bamboo shoot, Ginger etc.
-
Usage:
-
PLC intelligent control
-
Function:
-
Hot air circulation+Drying+Dehumidity
-
Advantage1:
-
Easy Operation High Efficiency
-
Advantage2:
-
Saving Drying Cost
-
Weight:
-
300-1000kg

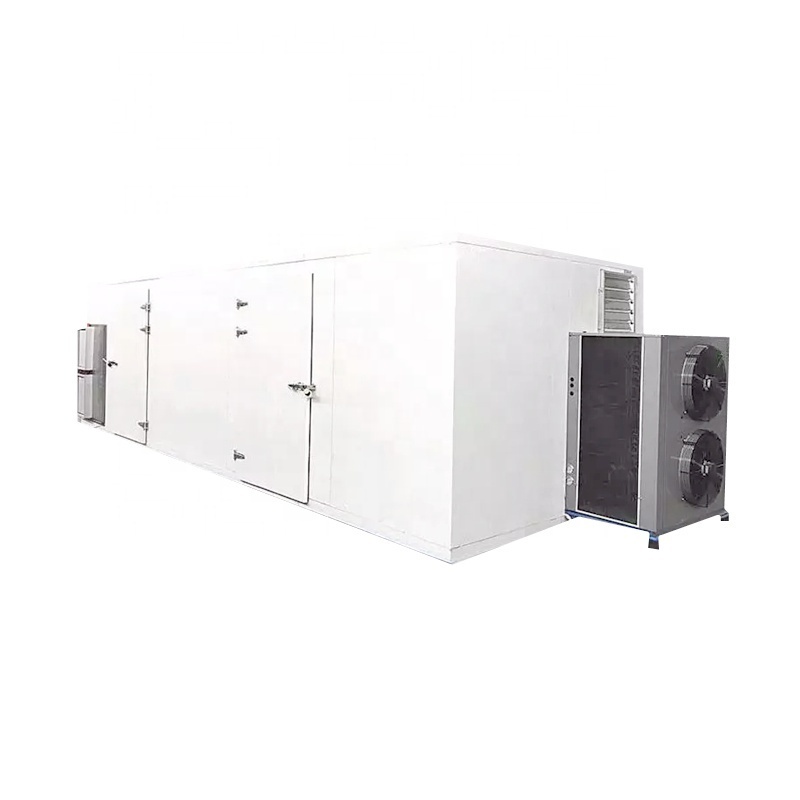

Hello River Brand Dryer Heat Pump Dryer Machine Potato Drying Machine Cassava Yam Drying Oven Commercial Fruit Dryer
Products Description
What are HELLORIVER Heat Pump Drying Machine ?
HELLORIVER Heat Pump Drying Machine
is a kind of heating device. The high temperature heat pump dryer work basic on the inverse Kano principle to absorb heat from the surrounding environment and transfer it to drying chamber or drying area. It is mainly used in the drying and dehydration process of food, medicinal materials, wood, agricultural products, industrial products, etc.
Woking Principle
Hello River Brand Dryer Heat Pump Dryer Machine Potato Drying Machine Cassava Yam Drying Oven Commercial Fruit Dryer
No MOQ and Customized Design
Drying+Dehumidify+Cooling
PLC+Touch Screem Control
10-15Days Delivery Time
Product Parameters
|
MODEL
|
|
HRD-07S-FD
|
HRD-10S-FD
|
HRD-12S-FD
|
HRD-15S-FD
|
|
DRYING CHAMBER SIZE
|
MM
|
3M*6M*2.2M
|
3M*7M*2.2M
|
3M*7M*2.2M
|
3M*8M*2.2M
|
|
POWER INPUT
|
KW
|
8
|
12
|
13
|
16
|
|
POWER SUPPLY
|
V/PH/HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
|
DEHUMIDIFY
|
L/H
|
25
|
36.5
|
42.5
|
45
|
|
MAX.TEMPERATURE
|
℃
|
70
|
70
|
70
|
70
|
|
WORKING CONDITION
|
℃
|
No Limit
|
No Limit
|
No Limit
|
No Limit
|
|
ELECTRIC SHOCK PROTECION GRADE
|
GRADE
|
Class I
|
Class I
|
Class I
|
Class I
|
|
NOISE
|
dB(A)
|
≦60db(A)
|
≦60db(A)
|
≦60db(A)
|
≦60
|
|
BLOWING AIR QUANTITY
|
CBM/H
|
3000-6000
|
600-8500
|
6000-8500
|
8000-10000
|
|
AIR INTAKE
|
mm
|
393*221
|
430*364
|
430*364
|
430*364
|
|
AIR RETURN
|
mm
|
710*505
|
740*733.5
|
1317*615
|
1317*615
|
|
DIMENSION OF DRYER
|
mm
|
1630*984*1685
|
1750*984*1960
|
1870*1680*1785
|
1870*1680*1785
|
|
WEIGHT
|
KG
|
280
|
480
|
480
|
480
|
DRYER SYSTEM DIAGRAM
Hello River Brand Dryer Heat Pump Dryer Machine Potato Drying Machine Cassava Yam Drying Oven Commercial Fruit Dryer
Traditional drying equipment may have a large energy expenditure. HELLORIVER Heat Pump Dryer uses reverse Carnot principle, uses free air to absorb the heat around, and transfers the heat to the material to be dried. The heat pump dryer is controlled by touch screen with adjustable temperature and low power consumption and its heating efficiency is higher than that of similar equipment. This dryer have many advantages such as
energy saving, environmental protection, intelligent 24-hour operation, wide drying range and good effect.
Drying materials are clean, and their appearance and taste can be improved for several grades.
BUYER GUIDELINE
Recommended type matching of drying machine &drying chamber size
|
250MODEL
|
DRYER QUANTITY
|
DRYING CHAMBER SIZE(METER)
|
FAN MODEL
|
FAN QUANTITY
|
|
HRD-07S-FD
|
1
|
3M*6M*2.2M
|
250W
|
12
|
|
HRD-10S-FD
|
1
|
3M*7M*2.2M
|
250W
|
12
|
|
HRD-12S-FD
|
1
|
3M*7M*2.2M
|
550W
|
9
|
|
HRD-15S-FD
|
1
|
3M*8M*2.2M
|
550W
|
9
|
|
HRD12S
|
2
|
4M*11M*2.3M
|
550W
|
18
|
|
HRD15S
|
2
|
4.6M*11M*2.3M
|
750W
|
18
|
Main Features and Projects for
Hello River Brand Dryer Heat Pump Dryer Machine Potato Drying Machine Cassava Yam Drying Oven Commercial Fruit Dryer
1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 10-75°C, Max 75°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise
Application Range
Air-energy heat pump drying equipment has been applied in many fields.
Our Project
Our Company
Production procedure
Trade Show
Packing & Delivery
FAQ
Pre-Sales Service
1, Inquiry and sonsulting support
2, Sample testing support
3, View our factory
After-Sales Service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need
