Quick Details
-
Brand Name:
-
Sealand
-
Model Number:
-
MS-25
-
Product Name:
-
Microbend Coriolis mass flow meter
-
Nominal diameter:
-
25mm (1 inch)
-
Certificates:
-
CE, ISO
-
Max. flow rate:
-
200kg/min
-
MWP:
-
4MPa
-
Zero stability:
-
0.93kg/h
-
Repeatability:
-
0.15%
-
Wetted parts:
-
Stainless steel 316L
Quick Details
-
Type:
-
Mass Flow Meter
-
Warranty:
-
2 years, 2 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sealand
-
Model Number:
-
MS-25
-
Product Name:
-
Microbend Coriolis mass flow meter
-
Nominal diameter:
-
25mm (1 inch)
-
Certificates:
-
CE, ISO
-
Max. flow rate:
-
200kg/min
-
MWP:
-
4MPa
-
Zero stability:
-
0.93kg/h
-
Repeatability:
-
0.15%
-
Wetted parts:
-
Stainless steel 316L

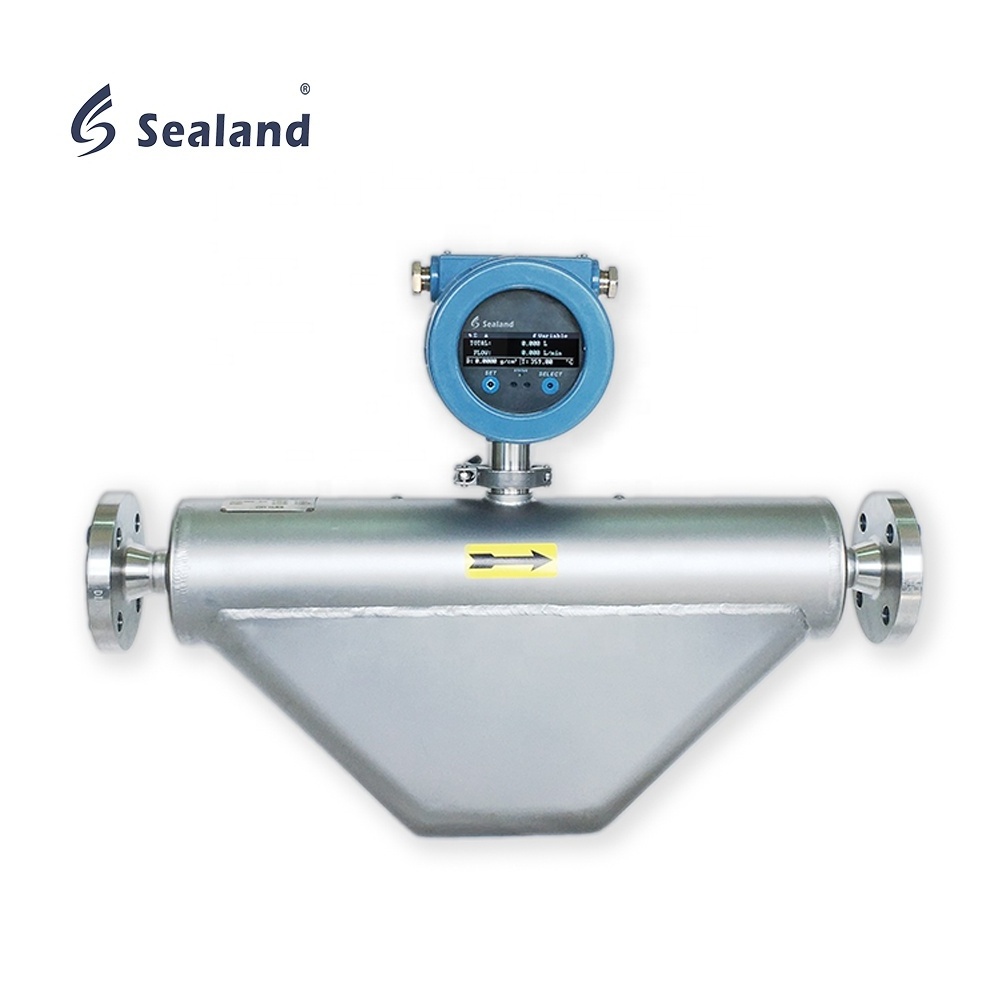

Microbend Coriolis mass flow meter
|
Specification s of Coriolis mass flow meter |
|
|
Model No. |
MS-25 |
|
Max. flow rate |
200 kg/min |
|
Nominal diameter |
25mm ( 1 inch) |
|
Mass accuracy grade |
0.2 |
|
Zero stability |
0.93kg/hr |
|
Repeatability |
0.10% |
|
Warranty |
2 years |
|
Temperature accuracy |
±1°C ± 0.5% of reading |
|
Fluid temperature |
-70~160°C or -200~+60ºC |
|
Wetted parts |
Stainless steel 316L |
|
Sensor housing |
Stainless steel 304 |
|
Packing |
1set/carton |
|
Package size |
640*6415*210mm |
|
G.W. |
19.5kgs |
|
Specifications of Coriolis mass flow sensor |
|
|
Gas accuracy |
±0.5% |
|
Liquid accuracy |
±0.5% |
|
Temp. accuracy |
±1°C |
|
Pressure drop |
≤0.2MPa |
|
MWP |
4MPa |
|
Temp. rating |
-50°C~+200°C |
|
End connection |
Customizable |
|
Ex-mark |
Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb |
|
Specifications of Coriolis mass flow transmitter |
|
|
Temp. rating |
-30°C~+60°C |
|
RH |
≤ 95%, non condensing |
| Atmospheric pressure |
86~106KPa |
|
Operating voltage |
AC85~265V, DC12~24V |
|
Communication & output |
RS485 Modbus RTU, pulse, 4-20mA, HART |
|
Ex-mark |
Ex II 2G Ex db [ib] IIC T6...T1 Gb |
Please click the following pictures for details of each model :)
|
Model No. |
Diameter (mm) |
Max. flow rate (kg/min) |
MWP. (MPa) |
Accuracy grade (%) |
Zero stability (kg/ h ) |
|
CG -03 |
03 |
6 |
4 |
0.1/ 0 . 2/ 0.5 |
0 . 012 |
|
CG-06 |
06 |
18 |
4 |
0.1/ 0.2/ 0.5 |
0.04 |
|
CG-15 |
15 |
5 0 |
25 |
0.1/ 0.2/ 0.5 |
0.12 |
|
CNG-20 |
20 |
120 |
25 |
0.1/ 0.2/ 0.5 |
0.36 |
|
CG-25 |
25 |
200 |
4 |
0.1/ 0.2/ 0.5 |
0.62 |
|
CG-40 |
40 |
500 |
4 |
0.1/ 0.2/ 0.5 |
1.60 |
|
CG-50 |
50 |
1000 |
4 |
0.1/ 0.2/ 0.5 |
2.38 |
|
CG-80 |
80 |
3000 |
4 |
0.1/ 0.2/ 0.5 |
7.05 |
|
CG-100 |
100 |
3600 |
4 |
0.1/ 0.2/ 0.5 |
12.00 |
|
CG -150 |
150 |
8000 |
4 |
0.1/ 0.2/ 0.5 |
50.00 |
Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
- Alternative Energy
- Oil & Gas
- Chemical
- Food & Beverage
- Industrial Energy
- Life Sciences
- Marine
- Metals and Mining
- Power
- Pulp & Paper
- Refining
- Water & Wastewater
- Others
Advantages of Coriolis mass flow meter
1. Maintenance-free
2. HIgh accuracy & reliability
3. Shows many parameters simultaneously, such as mass flow, temperature & desity
4. Compact design with no moving parts, no special mounting and no flow conditioning required.
ATEX, IECEx, CE, SIL and all Chinese certificates approved.
Packed with specific foam, professional & safe.
Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, specialized in development, production & sales of Coriolis mass flow meter, located in Binhai ETDZ, Wenzhou, Zhejiang, China. Read more!
Standardization line
The standardization line is equipped with world famous brand METTLER TOLEDO instrument with accuracy 0.02%, and other devices imported from South Korea, national institute approved.
Mass production of Coriolis mass flow meter
Why Sealand?
1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.
2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.
3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.
4. The warranty is 2 years, but technical support is always available. Read more!
FAQ.
1.Customer: May I release trial order, 1 pc for example?
Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
2.Customer: Could you design according to my requirements?
Sealand: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
