Quick Details
-
Span:
-
5~14m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
1500 kg
-
Product name:
-
Manual drive EOT crane
-
Electrical power source:
-
No need
-
Lifting unit:
-
Chain hoist
-
Power Source:
-
No need
-
Control model:
-
Manual drive
-
Paint:
-
Yellow/red or according to client's demand
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Max. Lifting Height:
-
25M, 7.5m, 15M, 6m, 20M
-
Rated Lifting Moment:
-
10~100KN
-
Max. Lifting Load:
-
1ton~10ton
-
Span:
-
5~14m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
1500 kg
-
Product name:
-
Manual drive EOT crane
-
Electrical power source:
-
No need
-
Lifting unit:
-
Chain hoist
-
Power Source:
-
No need
-
Control model:
-
Manual drive
-
Paint:
-
Yellow/red or according to client's demand
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001

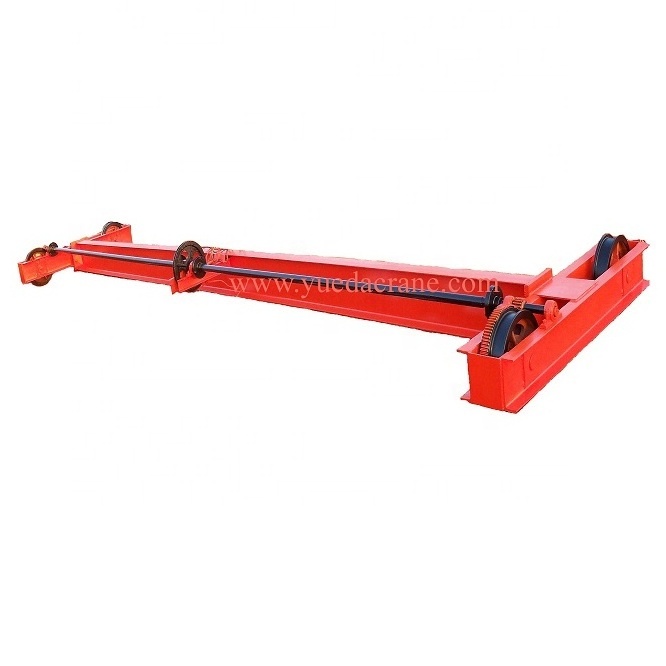

1ton to 10ton SL Model Single Beam Manual Drive EOT Crane:
1. SL model single beam manual drive EOT crane is single beam type overhead crane, the all motions are drived by hand, it is used in the place that no power source.
2. This EOT crane (bridge crane) is characterized by more reasonable structure and higher strength steel as a whole, the main beam is made by I-beam or box frame steel beam, the end carriages are made by C-section beam.
3. This EOT crane (bridge crane) is used together with chain hoist as a complete set.
4. The capacity from 1ton to 10 tons . The span from 5m to 14m, the working grade is A1-A3. Working temperature within -25 to +42 centigrade.
5. This overhead crane (EOT crane) is prohibited to use in the combustible, explosive to corrosives environment.
|
Capacity (t) |
1 |
2 |
3 |
5 |
10 |
|
|
Lifting height (m) |
3~10 |
|||||
|
Duty class |
A1~A3 (Light duty) |
|||||
|
Travelling speed (m/min) |
Crane |
5.2 |
5.2 |
5.2 |
4.3 |
4.3 |
|
Trolley |
5.3 |
5.9 |
4.7 |
4.7 |
4.2 |
|
|
Width of rail top |
37~51mm |
|||||
6. The main bea m of manual drive overhead crane, it is made by I-section beam or box frame steel beam:
7. The end carriages of manual drive overhead crane :
8. The drive pulley for crane movement:
9. The packing & transport of manual drive overhead crane:
