10 litre 70 litre 30L manufacturing medical psa oxygen gas production plant for hospital

10 litre 70 litre 30L manufacturing medical psa oxygen gas production plant for hospital

FOB Reference Price: Get Latest Price

≥1 Sets

US $300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 190 KG

Dimension(L*W*H):: 60*100*125

Outlet pressure:: 0.05-0.5Mpa

Oxygen capacity:: 3L 5L 10L 15L 20L 30L 40L 60L

Oxygen purity:: 90+-3%

Technology:: PSA

Material:: zeolite/alumina

Relative humidity:: ≤85%

Noise:: ≤65 Db

Housing:: Carbon steel sprayed with plastics

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OGP

Voltage:: 110v 220v

Weight:: 190 KG

Dimension(L*W*H):: 60*100*125

Outlet pressure:: 0.05-0.5Mpa

Oxygen capacity:: 3L 5L 10L 15L 20L 30L 40L 60L

Oxygen purity:: 90+-3%

Technology:: PSA

Material:: zeolite/alumina

Relative humidity:: ≤85%

Noise:: ≤65 Db

Housing:: Carbon steel sprayed with plastics

Product Overview

OGP-10~80LPM Aquaculture oxygen generator

1. Use air as raw material, no need any additional material, thus low cost.
2. Oxygen generator has a simple and compact construction, easy to operate and
maintain.
3. Compared with similar products in market, it can work steady at cold temperature or even sudden changes of climate (Great
change of temperature difference).
4. The oxygen concentrator generate oxygen rapidly and continuously.
5. High stable oxygen purity from 93~94%. ( 95% customized).
6. Oxygen outlet pressure from 0.06~0.08Mpa or 0.1~0.5Mpa
7. The machine can work under humidity enviroment.

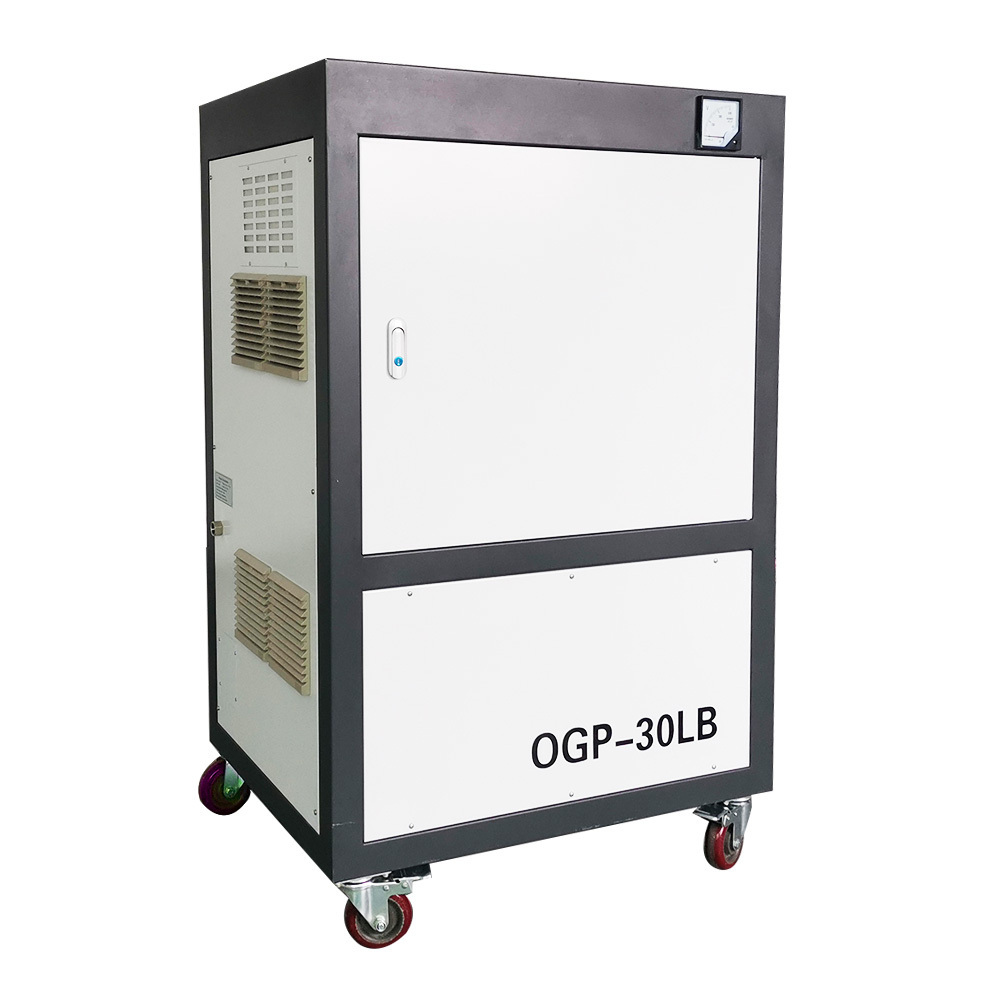

OGP-10~80LB PSA oxygen generator

10LPM

20LPM

30LPM

40LPM

50LPM

60LPM

OGP-LB series it's oxygen output from 10L 15L ~80L , widely used in Widely used in various industries

Application:

1. Fish pond aquaculture oxygenation
2. Glass blowing
3. Metal cutting
4. Hospital clinic, (dog)animal hospital
5. Waste water treatment
6. Ozone generator industry
7. Hyperbaric oxygen chamber

Oxygen Advantages for Aquaculture:
1. Increase stock density by maintaining a higher level of Dissolved Oxygen (DO)
2. Produce larger quantities of high quality fish
3. Increase reproduction rates
4. Ensure the flavor of fish by providing a clean environment
5. Prevent ice from forming during winter months
6. Increase the oxygen content over a typical air-fed aerating system 7. Ensure uniform DO levels throughout tanks and ponds
7. Provide feed gas to an existing ozone generator for disinfection

High configuration durability and long life

1. Built-in oil free compressor
2. Chiller, filters, Refrigerant dryer.
3. High efficient PSA oxygen generator unit

PRODUCT SPECIFICATIONS

No	Item	Unit	OGP-10LB	OGP-15LB	OGP-20LB	OGP-30LB	OGP-40LB
1	Oxygen output	LPM	10	15	20	30	40
2	Oxygen purity	%	93±3%	93±3%	93±3%	93±3%	93±3%
3	Power	KW	1	1.5	1.8	2	3
4	Oxygen pressure	Mpa	0.05~0.08	0.05~0.08	0.05~0.08	0.05~0.08	0.05~0.08
5	Working voltage	Volt	110/220V	110/220V	110/220V	110/220V	110/220V
6	Relative humidity	%	≤70%±10%	≤70%±10%	≤70%±10%	≤70%±10%	≤70%±10%
7	Noise	Db	≤ 65Db	≤ 65Db	≤ 65Db	≤ 65Db	≤ 65Db
8	Size	cm	4080115	5696 115	6080125	60100125	60100125
9	NW	kg	55	80	100	145	190

No	Item	Unit	OGP-50LB	OGP-60LB	OGP-70LB	OGP-80LB	OGP-100LB
1	Oxygen output	LPM	50	60	70	80	100
2	Oxygen purity	%	93±3%	93±3%	93±3%	93±3%	93±3%
3	Power	KW	3.6	4	5.3	6	7.7
4	Oxygen pressure	Mpa	0.05~0.08	0.05~0.08	0.05~0.08	0.05~0.08	0.05~0.08
5	Working voltage	Volt	110/220V	110/220V	110/220V	110/220V	110/220V
6	Relative humidity	%	≤70%±10%	≤70%±10%	≤70%±10%	≤70%±10%	≤70%±10%
7	Noise	Db	≤ 65Db	≤ 65Db	≤ 65Db	≤ 65Db	≤ 65Db
8	Size	cm	60100125	60100125	13666175	13767177	160120170
9	NW	kg	210	230	316	336	370
