Quick Details
-
Brand Name:
-
TJKS
-
Model Number:
-
R-C-007
-
Usage:
-
Pipe Clamp
-
Structure:
-
Swivel Clamp
-
Product name:
-
Abrazadera fuerte de un solo perno de ancho de banda de 22 mm
-
Application:
-
Connection
-
Type:
-
Hardware Tools
-
Size:
-
Customized Sizes Acceptable
-
Surface treatment:
-
Zinc Plating/ Polishing
-
Package:
-
Bag/Carton
-
Band width:
-
18/20/22/24/26MM
-
Thickness:
-
0.6/0.8/10/1.2/1.5MM
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel, Metal, Stainless Steel,Metal
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TJKS
-
Model Number:
-
R-C-007
-
Usage:
-
Pipe Clamp
-
Structure:
-
Swivel Clamp
-
Product name:
-
Abrazadera fuerte de un solo perno de ancho de banda de 22 mm
-
Application:
-
Connection
-
Type:
-
Hardware Tools
-
Size:
-
Customized Sizes Acceptable
-
Surface treatment:
-
Zinc Plating/ Polishing
-
Package:
-
Bag/Carton
-
Band width:
-
18/20/22/24/26MM
-
Thickness:
-
0.6/0.8/10/1.2/1.5MM

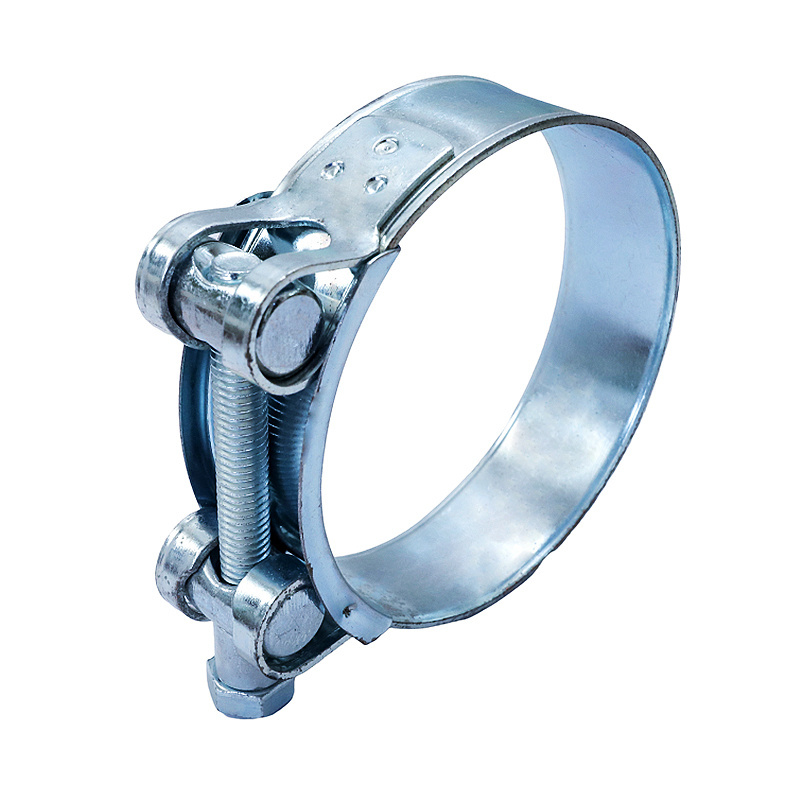

Abrazadera fuerte de un solo perno de ancho de banda de 22 mm
|
P roduct N ame |
Abrazadera fuerte de un solo perno de ancho de banda de 22 mm |
|
Material |
Galvanized iron, Stainless steel 201 Stainless steel 304 |
|
Bandwidth |
18mm, 20mm, 22mm, 24mm, 26mm |
|
Thickness |
0.6mm, 0.8mm, 1.0mm, 1.2mm |
|
S pecification |
Various sizes, customized |
|
Surface T reatment |
Polishing |
|
Use |
Connector fixed |
,
|
Size (mm) |
Screw (mm) |
Thickness*Bandwidth (mm) |
100pcs weight (kg) |
|
17-19 |
M5*40 |
0.6*18 |
4.4 |
|
20-22 |
4.5 |
||
|
23-25 |
4.6 |
||
|
26-28 |
4.7 |
||
|
29-31 |
M6*50 |
0.6*20 |
5.5 |
|
32-35 |
5.6 |
||
|
36-39 |
5.7 |
||
|
40-43 |
5.9 |
||
|
44-47 |
M6*60 |
0.8*22 |
7.5 |
|
48-51 |
7.8 |
||
|
52-55 |
8.0 |
||
|
56-59 |
8.3 |
||
|
60-63 |
8.4 |
||
|
64-67 |
8.5 |
||
|
68-73 |
M8*70 |
0.8*24 |
12.1 |
|
74-79 |
12.3 |
||
|
80-85 |
12.6 |
||
|
86-91 |
13.1 |
||
|
92-97 |
13.6 |
||
|
98-103 |
M8*80 |
13.8 |
|
|
104-112 |
14.1 |
||
|
113-121 |
14.5 |
||
|
122-130 |
14.9 |
||
|
131-139 |
M10*90 |
1.0*26 |
20.9 |
|
140-148 |
21.2 |
||
|
149-161 |
21.5 |
||
|
162-174 |
22.5 |
||
|
175-187 |
M10*100 |
25.2 |
|
|
188-200 |
26.2 |
||
|
201-213 |
27.2 |
||
|
214-226 |
28.2 |
||
|
227-239 |
28.8 |
||
|
240-252 |
29.2 |
