High power 2channel 433mhz wireless remote control switch motor forward and reverse water pump controller switch motor

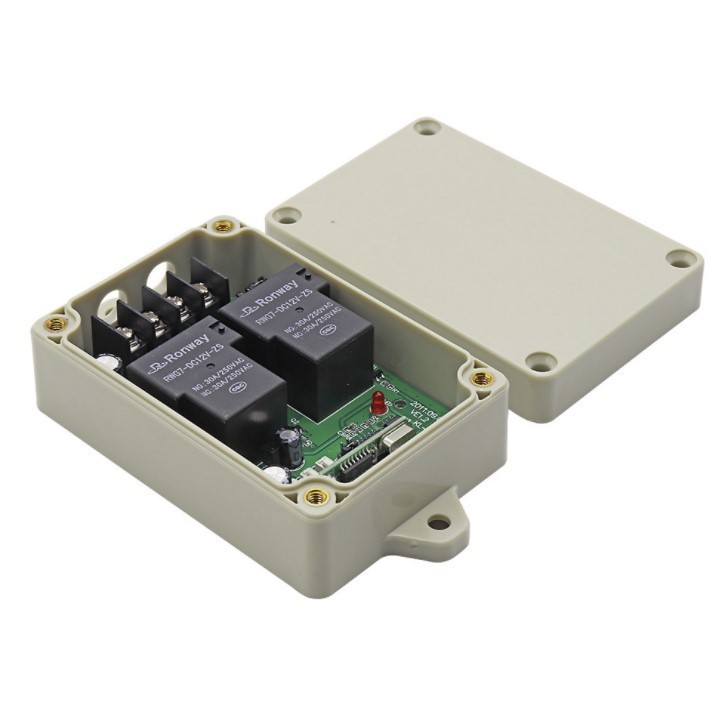

This product is a wireless remote control controller of DC motor. The forward rotation, stop and reverse rotation of the motor are controlled by the remote controller. After the motor runs, it can stop automatically by touching the travel switch to open. The product is widely used in garage door, electric door, gate and other aspects of remote control.

1, Technical parameters

Working voltage: DC12V or 24V

Quiescent current: 3-5ma

Single rated load: 30A

Receiving frequency: 315-433mhz

Remote control distance: 50-500m (optional)

Coding method: code matching

Overall dimension: 67 * 39 * 100 mm

2, Remote control code matching method:

After power on, press the learning button K1. When the indicator light flashes, press the "forward rotation" button of the remote control until the indicator light is off and the "forward rotation" code matching is completed.

In the same way, code the "stop" pair K2 and the "reverse" pair K3 in turn. Note that the code sequence must be forward → stop → reverse.

To delete a remote control:

Long press the learning key on this machine, when the indicator light flashes, it will go out, indicating that the deletion is successful.

3, Note:

The correct operation sequence is forward rotation → stop → reverse rotation or reverse rotation → stop → forward rotation. It is not suitable to switch directly from forward rotation to reverse rotation or from reverse rotation to forward rotation.

This product can learn the following coding chip remote controller, PT2262, pt2260, pt2240, EV1527

Packing list:

1 * Wireless controller (Remote control not included)
