Quick Details
-
Brand Name:
-
Yogel/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1
-
keywords:
-
FWDM splitter
-
Certification:
-
ISO9001:2008
-
Lead length:
-
1m,others on request
-
Application:
-
FTTH FTTB FTTX Network
-
Fiber Type:
-
1*2 1*4 1*8 1*16
-
Return loss:
-
>50dB
-
Operating Temperature:
-
-20℃ TO +70℃
-

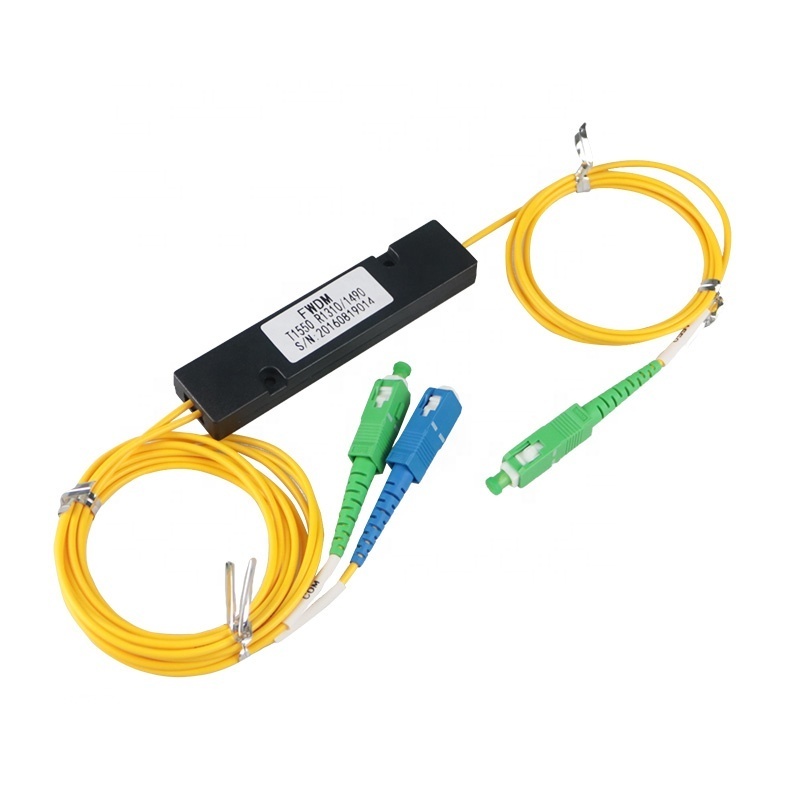

Product name:
-
FWDM splitter
-
Wavelength:
-
1310nm/1550nm
-
Material:
-
ABS
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
FWDM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yogel/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1
-
keywords:
-
FWDM splitter
-
Certification:
-
ISO9001:2008
-
Lead length:
-
1m,others on request
-
Application:
-
FTTH FTTB FTTX Network
-
Fiber Type:
-
1*2 1*4 1*8 1*16
-
Return loss:
-
>50dB
-
Operating Temperature:
-
-20℃ TO +70℃
-
Product name:
-
FWDM splitter
-
Wavelength:
-
1310nm/1550nm
-
Material:
-
ABS
F
i
ber optical splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features:
*
Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications:
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)
|
Name
|
FWDM
|
|
|
|
Parameter
|
5/34 4/35 34/5
|
Unit
|
|
|
Pass band wavelength
|
1550+-10 1490+-10 1310+-10
1490+-10
|
nm
|
|
|
Reflection band 1 wavelength
|
1310+-40 1310+-40 1550+-10
|
nm
|
|
|
Reflection band 2 wavelength
|
1490+-10 1550+-10 1550+-10
|
nm
|
|
|
Insertion loss
|
Pass channel <0.6
Reflection channel <0.6
|
dB
|
|
|
Pass band rippler
|
Pass channel ≤0.3
Reflection channel ≤0.3 |
dB
|
|
|
Isolation
|
Pass channel <0.6 ≥40
Reflection channel <0.6 ≥40 |
dB
|
|
|
Return loss
|
>50
|
dB
|
|
|
Temperature dependent
|
<0.005
|
dB/℃
|
|
|
Polarization dependent loss
|
<0.10
|
dB
|
|
|
Polarization mode dispersion
|
<0.10
|
PS
|
|
|
Directivity
|
≥50
|
dB
|
|
|
Maximum optical powder
|
500
|
dB
|
|
|
Operating temperature
|
-20 - +70
|
℃
|
|
|
Storage temperature
|
-40 - +85
|
℃
|
|
Packing Details: soft packing in side, with inside protecting foam,1/ plastic bag, 10/ carton box.
Delivery Details:
3-7 days after receipt the payment
Shanghai Yogel Communication Equipment Co,Ltd
is a manufacturer who specialized in research, development and production of optical fiber coupler, PLC splitter, WDM. We are located in Shanghai, with convenient transportation access. All of our productions company with international quality standards and are greatly appreciated in a variety of different markets throughout the world. If you are interested in any of our products or would like to discussa customer order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Pre-sale service
24 hours online,There are professional technicians to solve problems with the products
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After-sales service
If you receive the goods damaged, less, can't be use and so on, please contact us, we will solve at the first time.
1.Can you provide free samples?
A: yes, we can supply some samples in free , the buyer just need to pay shipping cost.
2. Are you manufacturer or trading company?
A: We are manufacturer, our factory located in ShangHai , welcome to visit our factory.
3.What is your delivery time?
A: It depending on the order quantity, normally the bulk order delivery time 5-10days.
4, Can you supply OEM products with our brand?
A: Yes, .we can accept OEM service , you just need to send your detailed requirements to us.
5, How to proceed an order?
A: First let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.
Fourthly we arrange the production.
