Quick Details
-
Drilling Speed:
-
50-675r/min
-
Place of Origin:
-
China
-
Brand Name:
-
DELYNN
-
Model Number:
-
ZS4132*2/ZS4150*2
-
Voltage:
-
220V/380V, 380V
-
Dimension(L*W*H):
-
1390*1110*1750mm
-
Power (kW):
-
1
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Vertical Drilling Machine
-
Application:
-
Metal Processing
-
Precision:
-
0.1mm
-
Function:
-
Drilling Milling Machining
-
Worktable stroke length:
-
240 mm
-
Machine type:
-
Drilling Equipment
-
Advantage 1:
-
Easy Operation
-
MOQ:
-
1set
Quick Details
-
type:
-
EDM Drilling Machine
-
Max. Drilling Dia. (mm):
-
50
-
Range of Spindle Speed(r.p.m):
-
675 - 1000 r.p.m
-
Drilling Speed:
-
50-675r/min
-
Place of Origin:
-
China
-
Brand Name:
-
DELYNN
-
Model Number:
-
ZS4132*2/ZS4150*2
-
Voltage:
-
220V/380V, 380V
-
Dimension(L*W*H):
-
1390*1110*1750mm
-
Power (kW):
-
1
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Vertical Drilling Machine
-
Application:
-
Metal Processing
-
Precision:
-
0.1mm
-
Function:
-
Drilling Milling Machining
-
Worktable stroke length:
-
240 mm
-
Machine type:
-
Drilling Equipment
-
Advantage 1:
-
Easy Operation
-
MOQ:
-
1set

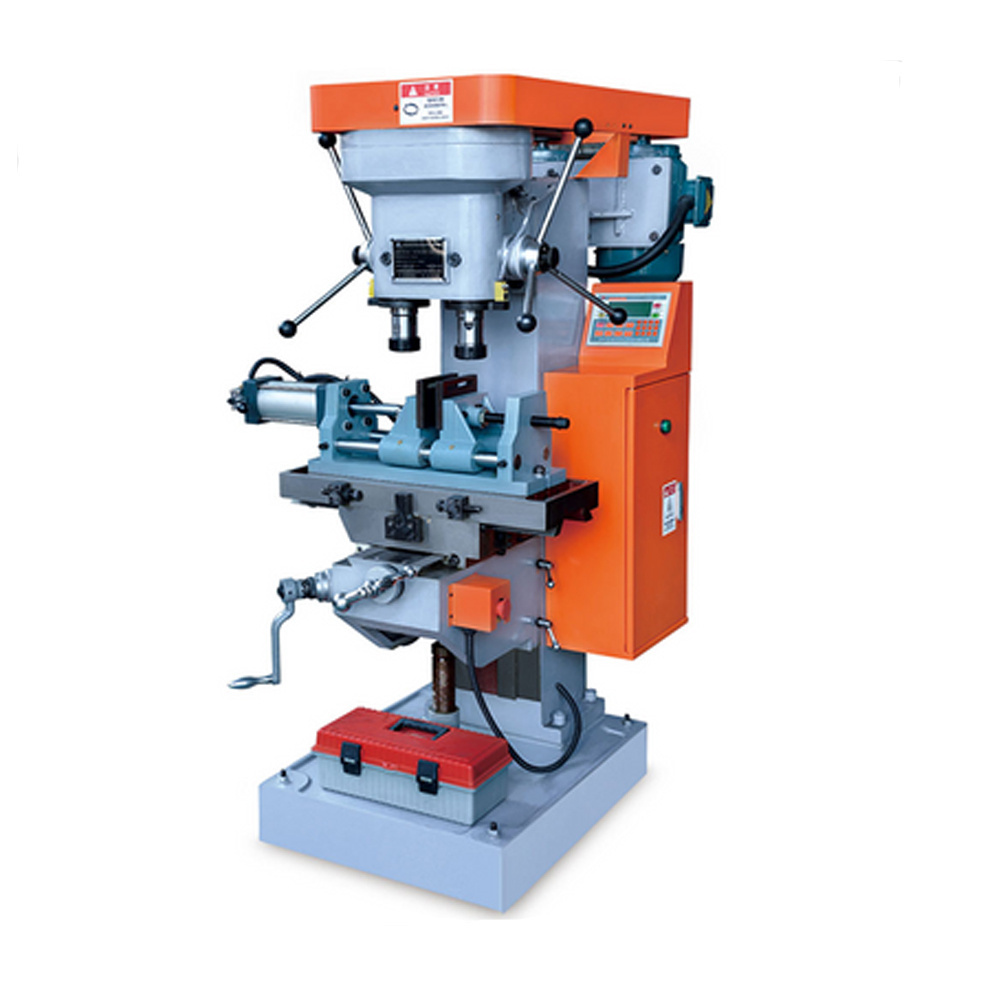

Double Spindle Compound Machine
Technical high Lights:
Applicable to batch part processing,drilling,tapping at one time with hight efficiency.
The slide base of working table uses air cylinder with buffer and pneumatic clamping,less vibration and clamp faster.
The slide base uses high-frequency quenching with lubrication,making the better perfomance.
It can achieve the function of double-drilling and double-tapping by choosing the AC-KT126*2 processor.
The total quantities of processing products can be displayed on the LCD Control panel.
|
|
Parameter Items | Unit | Parameter |
| Number of spindle | Spindles number | Unit | 2 |
| Drilling | / | Servo /power 1.5KW | |
| Tapping | / | Cylinder | |
| Workbench | Workbench movement | / | Cylinder |
| Working size | mm | 800*230 | |
| Workbench stroke | mm | 240 | |
| Spindle | Spindle wheelbase | mm | 240 |
| Spindle forms | / | MT4 | |
| Spindle power | kw | 4KW/4P | |
| Rotating rotating speed | r/min |
(L)50-675
(R)1000 / 675 |
|
| Spindle diameter | mm | Φ90 | |
| Machine specifications | Machine weight | kg | 1200 |
| Machine dimensions | mm | 1250*970*1900 | |
| Control System | PLC | ||
