Aluminum Foil Fin Heat Exchanger Flat fins with open windows have good heat exchange effect and good drainage effect during
defrosting;The golden anti-corrosion hydrophilic coating ensures that it is not easy to form frost during heating operation in
winter, and greatly improves the salt spray and oxidation resistance of the equipment.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Power World
-
Model Number:
-
PW010-KZXYC-C
-
heat exchanger:
-
Titanium heat exchanger
-
function:
-
pool heating & Cooling
-
compressor:
-
Pana-sonic
-
expansion valve:
-
Sanhua EEV
-
refrigerant:
-
R32
-
COP:
-
>5.8
-
freezing protection:
-
auto-defrosting
-
certificate:
-
CE RoHS TUV EN14511
-
low noise:
-
<45dBa
-
Keyword:
-
swimmig pool heat pump
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Power World
-
Model Number:
-
PW010-KZXYC-C
-
heat exchanger:
-
Titanium heat exchanger
-
function:
-
pool heating & Cooling
-
compressor:
-
Pana-sonic
-
expansion valve:
-
Sanhua EEV
-
refrigerant:
-
R32
-
COP:
-
>5.8
-
freezing protection:
-
auto-defrosting
-
certificate:
-
CE RoHS TUV EN14511
-
low noise:
-
<45dBa
-
Keyword:
-
swimmig pool heat pump
Products Description
PATENT DESIGN

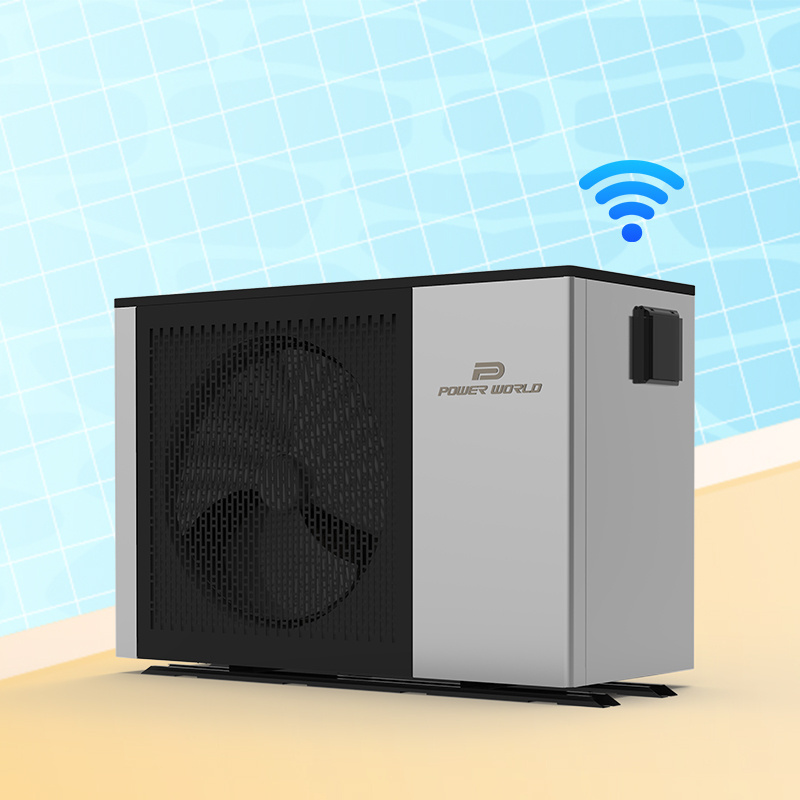

Smart series inverter pool heat pump adopt Non-screw design,Tuyere adopts black and white family creative mold shape of Power World,and carry 3D structural software simulation to create a strong and reliable body.With Unique air flow technology,it leads to most silent ventilation.
Intelligent Full Inverter Control System
Smart series inverter pool heat pump adopt intelligent full inverter control system with three modes: Smart Mode,Powerful Mode,Silent Mode.
High-efficiency Hydrophilic Coating Golden Aluminum Foil Fin Heat Exchanger
Multiple Noise Reduction Technology
Design Appropriate wind field flow channel design,noise reduction treatment for compressors,cabinets,etc.in a variety of ways such as elimination,isolation,and suction. There is a damping block on the copper pipe to reduce vibration and improve the reliability of the unit.
Save Energy And Speed Up Heating Time
With short heating time,users don't need to wait for a long time to enjoy swimming. In the meanwhile,it saves more energy than ON/OFF heat pump and non Full inverter heat pump.
|
Model
|
PW010-KZXYC-C
|
PW015-KZXYC-C
|
PW020-KZXYC-C
|
PW030-KZXYC-C
|
PW040-KZXYC-C
|
PW050-KZXYC-C
|
||||||
|
Advised pool volume (m3)
|
15~30
|
20~40
|
25~50
|
30~60
|
40~75
|
55~100
|
||||||
|
Operating air temperature (℃)
|
-7 ~43
|
|
|
|
|
|
||||||
|
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
|
|
|
|
|
|
|
||||||
|
Heating capacity (kW)
|
7.50~1.92
|
9.50~2.10
|
11.00~2.50
|
14.00~3.15
|
17.00~3.75
|
20.00~4.00
|
||||||
|
Heating Capacity(Btu)
|
25500~6528
|
32300~7140
|
37400~8500
|
47600~10710
|
57800~13090
|
68000~13600
|
||||||
|
Consumed power (kW)
|
1.36~0.15
|
1.73~0.16
|
2.00~0.19
|
2.54~0.24
|
3.1~0.28
|
3.64~0.31
|
||||||
|
COP
|
5.5~12.8
|
5.5~13.1
|
5.5~13.2
|
5.5~13.0
|
5.5~13.4
|
5.5~12.9
|
||||||
|
COP at 50% capacity
|
9.00
|
9.50
|
9.50
|
9.00
|
9.50
|
9.50
|
||||||
|
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
|
|
|
|
|
|
|
||||||
|
Heating capacity (kW)
|
5.80~1.42
|
7.2~1.50
|
8.5~1.65
|
10.7~2.40
|
13.0~2.65
|
15.6~2.85
|
||||||
|
Heating Capacity(Btu)
|
19720~4828
|
24480~5100
|
28900~5610
|
36380~8160
|
44200~9010
|
53040~9690
|
||||||
|
Consumed power (kW)
|
1.28~0.22
|
1.60~0.23
|
1.89~0.25
|
2.38~0.37
|
2.89~0.41
|
3.47~0.44
|
||||||
|
COP
|
4.5~6.5
|
4.5~6.5
|
4.5~6.5
|
4.5~6.5
|
4.5~6.5
|
4.5~6.5
|
||||||
|
COP at 50% capacity
|
5.20
|
5.50
|
5.50
|
5.20
|
5.50
|
5.50
|
||||||
|
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
|
|
|
|
|
|
|
||||||
|
Cooling capacity (kW)
|
4.0
|
5.2
|
6.0
|
7.2
|
8.6
|
10.1
|
||||||
|
Sound pressure at 1m dB(A)
|
38~48
|
38~48
|
40~50
|
42~51
|
43~52
|
43~53
|
||||||
|
Sound pressure of 50% capacity at 1m dB(A)
|
40
|
40
|
41
|
43
|
44
|
44
|
||||||
|
Sound pressure at 10m dB(A)
|
18~25
|
18~25
|
19~26
|
22~27
|
23~30
|
24~31
|
||||||
|
Heat exchanger
|
Spiral titanium tube in PVC
|
|
|
|
|
|
||||||
|
Casing
|
Metal Casing
|
|
|
|
|
|
||||||
|
Power supply
|
230V/1 Ph/50Hz
|
|
|
|
|
|
||||||
|
Water Connection (mm)
|
Φ50
|
|
|
|
|
|
||||||
|
Rated input current at air 15℃（A）
|
5.6~1.0
|
7.0~1.0
|
8.3~1.1
|
10.5~1.6
|
12.6~1.8
|
15.2~1.9
|
||||||
|
Advised water flux (m³/h)
|
2~4
|
2~4
|
3~5
|
4~6
|
6~9
|
8~10
|
||||||
|
Water Pressure Drop (max) kPa
|
2
|
3
|
4
|
5
|
5
|
6
|
||||||
|
Net weight/Gross weight（kg)
|
48/53
|
50/55
|
53/58
|
62/67
|
67/72
|
67/72
|
||||||
|
Carton size（mm）
|
912*360*610
|
|
|
980*370*760
|
|
|
||||||
|
Refrigerant consumption（g）
|
370g
|
470g
|
450g
|
570g
|
750g
|
800g
|
||||||
