Quick Details
-
Dimension(L*W*H):
-
350*300*100MM (can be customize)
-
Weight (KG):
-
50 kg
-
Product name:
-
28Khz 40Khz Immersible Ultrasonic Transducer Pack
-
Key words:
-
Immersion Ultrasonic Cleaning System
-
products series:
-
JYD-1012P
-
Voltage:
-
110V/220V/240V
-
Brand:
-
JYD/OEM
-
Frequency:
-
17/20/25/28/40/53/68/80/100/132/170/200Khz
-
Ultrasonic power:
-
600W
-
Application Area:
-
Electroplating Factory
-
professional techno support:
-
100%
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYD/OEM
-
Power:
-
600W
-
Dimension(L*W*H):
-
350*300*100MM (can be customize)
-
Weight (KG):
-
50 kg
-
Product name:
-
28Khz 40Khz Immersible Ultrasonic Transducer Pack
-
Key words:
-
Immersion Ultrasonic Cleaning System
-
products series:
-
JYD-1012P
-
Voltage:
-
110V/220V/240V
-
Brand:
-
JYD/OEM
-
Frequency:
-
17/20/25/28/40/53/68/80/100/132/170/200Khz
-
Ultrasonic power:
-
600W
-
Application Area:
-
Electroplating Factory
-
professional techno support:
-
100%
Products Description
Submersible Ultrasonic Transducer Underwater Ultrasonic Vibrating Plate for Cleaning and Degreasing

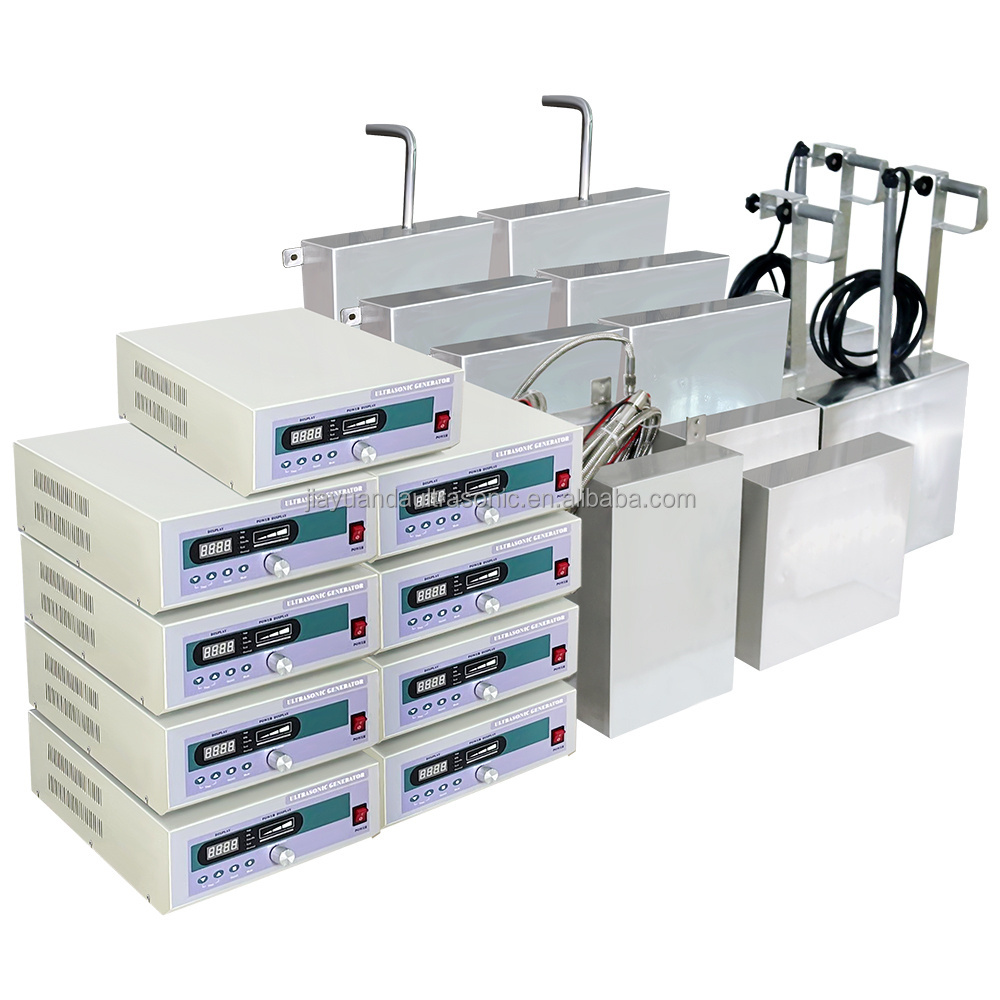

Immersion ultrasonic vibration plate
Submersible ultrasonic cleaning transducers unit can be installed in the tank by three ways as below: side, top and bottom.
|
Model
|
Ultrasonic power
|
Ultrasonic frequency
|
Max temperature
|
Vibration plate size
|
|
JYD-1012P
|
600W
|
25/28/40/68/80/100/132/170/200KHz
Material:316L/304 stainless steel
Thickness:2.0-3.0mm
Cable length:5m(custom)
|
90℃
|
350*300*100mm
|
|
JYD-1018P
|
900W
|
|
90℃
|
450*300*100mm
|
|
JYD-1024P
|
1200W
|
|
90℃
|
550*400*100mm
|
|
JYD-1030P
|
1500W
|
|
90℃
|
580*400*100mm
|
|
JYD-1036P
|
1800W
|
|
90℃
|
600*500*100mm
|
|
JYD-1042P
|
2100W
|
|
90℃
|
650*550*100mm
|
|
JYD-1048P
|
2400W
|
|
90℃
|
700*600*100mm
|
Our Advantages
Ultrasonic transducer vibratinng plate
The submersible ultrasonic cleaner is the customized and easy install ultrasonic cleaning system, the ultrasonic power is 1000w,
frequency can be 28khz, 40khz, 68khz, 80khz, 100khz or 130khz, 170khz , 200khz customized.
frequency can be 28khz, 40khz, 68khz, 80khz, 100khz or 130khz, 170khz , 200khz customized.
Waterproof high quality ultrasonic transducer
Immersion Ultrasonic Vibration Plate Features:
1) Immersible ultrasonic transducer unit can be installed in the tank by three ways: side, top and bottom. The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects.
2) It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong
acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding.
3) It is welded with high quality SUS304 or 316L stainless steel, which has a long working life.
4) It uses high Q value ultrasonic transducers, which has high ultrasonic power.
5) The ultrasonic generator and immersible transducer are connected with separated high-frequency wires, which is convenient for repair and maintenance.
6) It can work continuously for 24 hours, which is suitable for mass production.
2) It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong
acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding.
3) It is welded with high quality SUS304 or 316L stainless steel, which has a long working life.
4) It uses high Q value ultrasonic transducers, which has high ultrasonic power.
5) The ultrasonic generator and immersible transducer are connected with separated high-frequency wires, which is convenient for repair and maintenance.
6) It can work continuously for 24 hours, which is suitable for mass production.
