Quick Details
-
Dimension(L*W*H):
-
According to customer needs
-
Weight:
-
15000 KG
-
Key Selling Points:
-
Competitive price
-
Product name:
-
Hopper Bottom 100-300 Ton Small Grain Silo Feed Silo for Sale
-
Discount:
-
5% or more commission
-
After sale:
-
24 o'clock online, feel free to answer at any time
-
Quality:
-
ISO9001 BV CE
-
Price:
-
Ex-factory price but high quality
-
Delivery date:
-
On-time delivery rate of 100%
-
Capacity:
-
10-10,000 tons can provide
-
Bottom Type:
-
Hopper bottom
-
WhatsApp:
-
+86 13598071775
Quick Details
-
Core Components:
-
All
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HKB
-
Dimension(L*W*H):
-
According to customer needs
-
Weight:
-
15000 KG
-
Key Selling Points:
-
Competitive price
-
Product name:
-
Hopper Bottom 100-300 Ton Small Grain Silo Feed Silo for Sale
-
Discount:
-
5% or more commission
-
After sale:
-
24 o'clock online, feel free to answer at any time
-
Quality:
-
ISO9001 BV CE
-
Price:
-
Ex-factory price but high quality
-
Delivery date:
-
On-time delivery rate of 100%
-
Capacity:
-
10-10,000 tons can provide
-
Bottom Type:
-
Hopper bottom
-
WhatsApp:
-
+86 13598071775
Products Description
HKB Grain Silos are widely used in various industrial lines such as grain depot, farm, wooden pellets, sawdust, plastic pellet, seed, sand, flour, starch, oil, feed, water storage, alcohol, wine, port, chemistry and so on, which are the very equipments for storage of granular and powder materials. Complete grain storage, aeration, temperature monitoring, the level indicating, cleaning, drying, other handling and processing systems available.

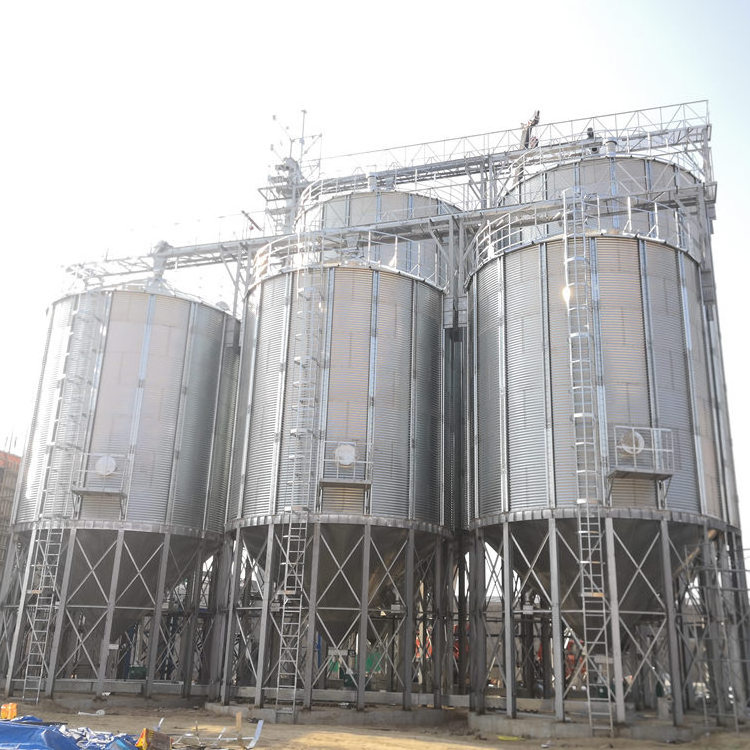

Below photo shows some silos for grain storage projects we have done recently!
Below photo shows some silos for grain storage projects we have done recently!
Specification
|
Model
|
Layer
|
V(m3)
|
C(t)
|
Dia(m)
|
H(m)
|
|
TCZK04506
|
6
|
131
|
98
|
4.584
|
11.41
|
|
TCZK05510
|
10
|
301
|
226
|
5.500
|
16.61
|
|
TCZK06410
|
10
|
418
|
313
|
6.417
|
17.33
|
|
TCZK07307
|
7
|
415
|
311
|
7.334
|
14.70
|
Details Images
Structure of silo top
The roof beam is made of C-shaped steel, the upper part is connected with the tio ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.
Structure of silo
The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thicjened from top to bottom according to the stress of each layer.
Accessory Equipment
Ventulation System
Including fan and out ring air suxt, inner air duct, silo top induced draft fan and natural ventulation window auciliary ventilation, which can take the maximum amount of indoor heat and ensure the quality of grain.
Clean up the system
Cylinder promary cleaning screen
Long screen body, goog cleaning effect. Fully enclosed frame, good sealing and dust proof performance. Small power, high output,
stable and reliable operation.
Self balancing vibrating screen
Adiopt cibration motor, vibration damping rubber sprong and other preferred parts, with low noise and stable operation.
Long screen body, goog cleaning effect. Fully enclosed frame, good sealing and dust proof performance. Small power, high output,
stable and reliable operation.
Self balancing vibrating screen
Adiopt cibration motor, vibration damping rubber sprong and other preferred parts, with low noise and stable operation.
Temperature measurement system
Temperature measurement system
The temperature measuring cable is suspended on the temperature measuring beam of the silo top framework, and the temperature
sensors are distributed on the electricityon the cable.
The temperature measuring cable is suspended on the temperature measuring beam of the silo top framework, and the temperature
sensors are distributed on the electricityon the cable.
Dedusting system
In the process of grain circulation and cleaning, there will be a lot of dust, which is not conducive to the quality of grain, further processing and encironmental sanitation. Dust remocal equipment can effectivel quppress dust.
