Quick Details
-
Range of Spindle Speed(r.p.m):
-
6.3 - 2000 r.p.m
-
Max. Turned Length (mm):
-
1010 mm
-
Spindle Motor Power(kW):
-
22 kw
-
Place of Origin:
-
China
-
Brand Name:
-
TIMAC
-
Model Number:
-
VL1250E
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2360x2300x3580 mm
-
Weight (KG):
-
8300 KG
-

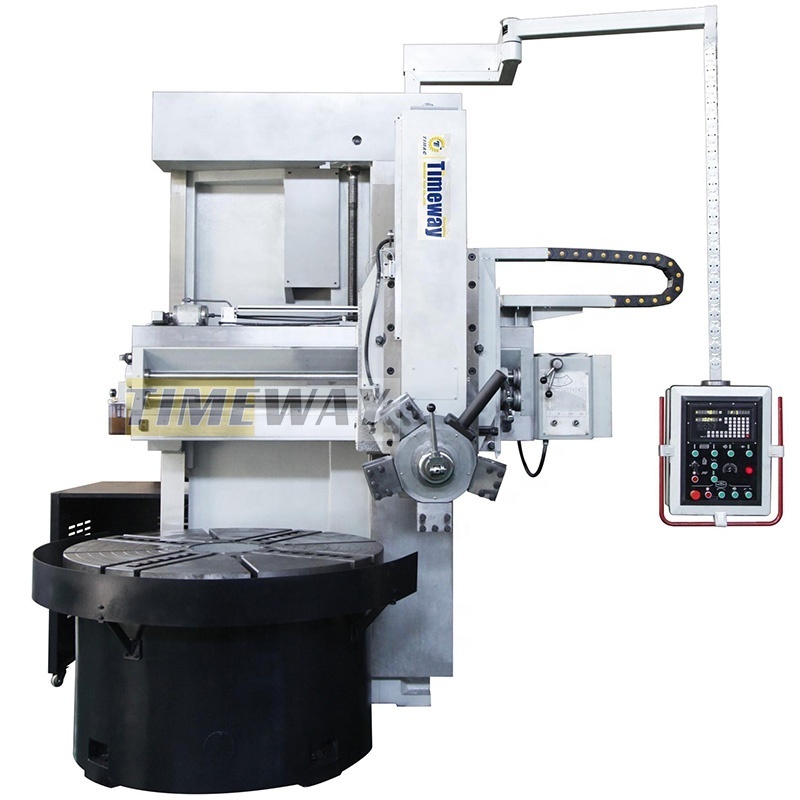

Machine Type:
-
Vertical Lathe
-
Keyword:
-
Vertical
-
Model:
-
VL1250
-
CNC or Not:
-
Normal
-
Max. turning diameter:
-
1250 mm
-
Max. weight of workpiece:
-
5000 kg
-
Worktable diameterv:
-
1010 mm
-
Worktable speed range/steps:
-
6.3-200 rpm(16steps)
-
Max. cutting force of vertical tool-post:
-
20 KN
-
Tool-post rapid feed speed:
-
1800 mm/min
Quick Details
-
Max. Length of Workpiece (mm):
-
1250 mm
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
105
-
Range of Spindle Speed(r.p.m):
-
6.3 - 2000 r.p.m
-
Max. Turned Length (mm):
-
1010 mm
-
Spindle Motor Power(kW):
-
22 kw
-
Place of Origin:
-
China
-
Brand Name:
-
TIMAC
-
Model Number:
-
VL1250E
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2360x2300x3580 mm
-
Weight (KG):
-
8300 KG
-
Machine Type:
-
Vertical Lathe
-
Keyword:
-
Vertical
-
Model:
-
VL1250
-
CNC or Not:
-
Normal
-
Max. turning diameter:
-
1250 mm
-
Max. weight of workpiece:
-
5000 kg
-
Worktable diameterv:
-
1010 mm
-
Worktable speed range/steps:
-
6.3-200 rpm(16steps)
-
Max. cutting force of vertical tool-post:
-
20 KN
-
Tool-post rapid feed speed:
-
1800 mm/min
Products Description
|
Specifications
|
Units
|
VL1250E
|
VL1600E
|
VL2000E
|
VL2300E
|
|
Max. turning diameter
|
mm
|
1250
|
1600
|
2000
|
2300
|
|
Max. height of workpiece
|
mm
|
1000/1250
/1400
|
1000/1250/
1400/1600
|
1250/1600
|
1250/1600
|
|
Max. weight of workpiece
|
kg
|
5000
|
8000
|
12000
|
12000
|
|
Worktable diameter
|
mm
|
1010
|
1400
|
1800
|
2000
|
|
Max. cutting force of vertical tool-post
|
KN
|
20
|
25
|
25
|
25
|
|
Max. cutting force of side tool-post
|
KN
|
20
|
20
|
20
|
20
|
|
Max. torque of worktable
|
KN.m
|
17.5
|
25
|
32
|
32
|
|
Worktable speed range/steps
|
rpm
|
6.3-200 (16)
|
5-160 (16)
|
4-125 (16)
|
3.2-100 (16)
|
|
Vertical tool-post feed speed
|
mm/min
|
0.8-86 (12)
|
0.8-86 (12)
|
0.8-86 (12)
|
0.8-86 (12)
|
|
Tool-post rapid feed speed
|
mm/min
|
1800
|
1800
|
1800
|
1800
|
|
Vertical tool-post swivel angle
|
°
|
±30°
|
±30°
|
±30°
|
±30°
|
|
Vertical tool-post cross travel
|
mm
|
-28-733
|
-15-930
|
-65-1150
|
-86-1300
|
|
Vertical tool post vertical travel
|
mm
|
650/800
|
800/1000
|
800/1000
|
800/1000
|
|
Side tool-post cross travel
|
mm
|
630
|
630
|
630
|
630
|
|
Side tool-post vertical travel
|
mm
|
900
|
900
|
900
|
900
|
|
Main motor power
|
kw
|
22
|
30
|
37
|
37
|
|
Machine dimensions (LxWxH)
|
cm
|
236x230x358
|
283x287x387
|
321x297x420
|
370x339x424
|
|
Machine weight
|
t
|
8.3/8.6/8.9
|
12.6/13.8/14.1
|
17.5/17.8
|
18.8/19.5
|
|
▪
Operating panel
▪ Manual pentagon tool post
▪ Tool holder (1pc) ▪ Boring tool holder (1pc) ▪ Chuck jaws (4pcs) ▪ Hydraulic system
▪ Work lamp
▪ Lubrication system ▪ General tools ▪ Foundation bolts & leveling pads ▪ operation manual (English) |
▪ Side tool post
▪ 2-axes DRO |
