1. Its measure level can be 40 meters.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HONDETEC
-
Model Number:
-
RD-600S-02
-
Product name:
-

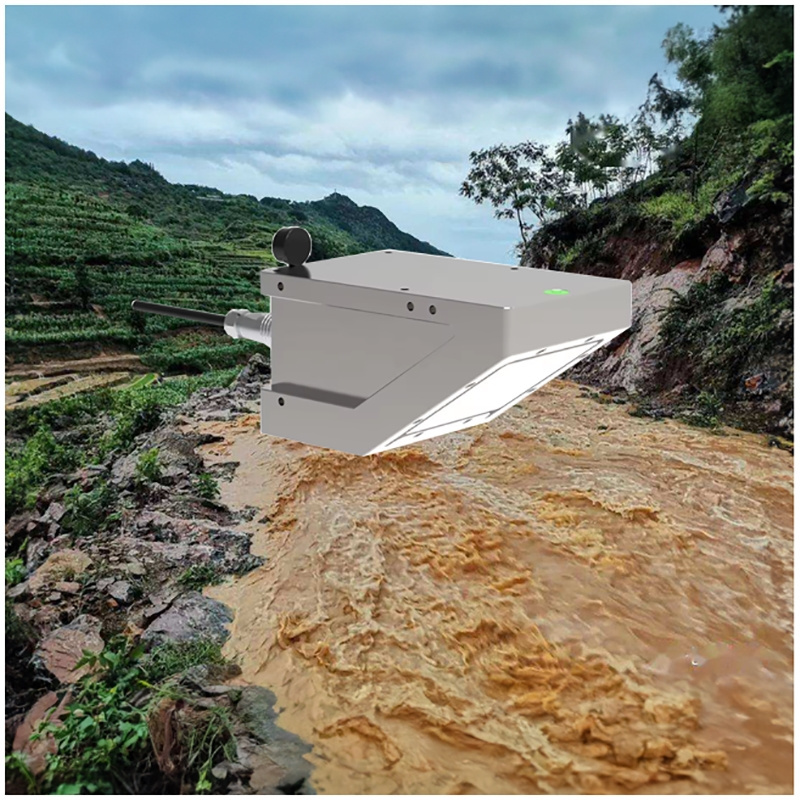

Radar water flowrate water level water flow 3 in 1 sensor
-
Keywords:
-
Radar type
-
Measuring range:
-
0.03~20m/s
-
Measure Principle:
-
Planar microstrip array antenna CW + PCR
-
Maximum range:
-
7m
-
Speed measurement accuracy:
-
±0.01m/s ;±1%FS
-
MOQ:
-
1pc
-
Application:
-
water flowrate measure
-
Wireless output:
-
GPRS/4G/WIFI/LORA/LORAWAN
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
1 year, 1 Year Under Normal
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
HONDETEC
-
Model Number:
-
RD-600S-02
-
Product name:
-
Radar water flowrate water level water flow 3 in 1 sensor
-
Keywords:
-
Radar type
-
Measuring range:
-
0.03~20m/s
-
Measure Principle:
-
Planar microstrip array antenna CW + PCR
-
Maximum range:
-
7m
-
Speed measurement accuracy:
-
±0.01m/s ;±1%FS
-
MOQ:
-
1pc
-
Application:
-
water flowrate measure
-
Wireless output:
-
GPRS/4G/WIFI/LORA/LORAWAN
Handheld Radar River Water Flow Rate Sensor
Radar Water Level Meter 0-40 Meters
Radar Water Level Meter 0-7 meters
|
Measurement parameters
|
|
|
|
|||
|
Product Name
|
Radar Water Flowrate Water level water flow 3 in 1 meter
|
|
|
|||
|
Flow measurement system
|
|
|
|
|||
|
Measuring principle
|
Radar Planar microstrip array antenna CW + PCR
|
|
|
|||
|
Operating mode
|
Manual, automatic, telemetry
|
|
|
|||
|
Applicable environment
|
24 hours, rainy day
|
|
|
|||
|
Operating temperature range
|
-30℃~+80℃
|
|
|
|||
|
Operating Voltage
|
7-32V / 5.5-32V (optional) DC power supply
|
|
|
|||
|
Relative humidity range
|
20%~80%
|
|
|
|||
|
Storage temperature range
|
-30℃~80℃
|
|
|
|||
|
Working current
|
4VDC input, working mode: ≤300mA standby mode:
|
|
|
|||
|
Lightning protection level
|
6KV
|
|
|
|||
|
Physical dimension
|
160*100*80（mm）
|
|
|
|||
|
Weight
|
1KG
|
|
|
|||
|
Protection level
|
IP68
|
|
|
|||
|
Radar Flowrate sensor
|
|
|
|
|||
|
Flowrate Measuring range
|
0.03~20m/s
|
|
|
|||
|
Flowrate Measurement accuracy
|
±0.01m/s ;±1%FS
|
|
|
|||
|
Flowrate Radar frequency
|
24GHz
|
|
|
|||
|
Radio wave emission angle
|
12°
|
|
|
|||
|
Radio wave emission standard power
|
100mW
|
|
|
|||
|
Measuring direction
|
Automatic recognition of water flow direction, built-in vertical angle correction
|
|
|
|||
|
Radar Water level gauge
|
|
|
|
|||
|
Water level Measuring range
|
0.2~7.0m
|
|
|
|||
|
Water level Measuring accurancy
|
±2mm
|
|
|
|||
|
Water level Radar frequency
|
60GHz
|
|
|
|||
|
Radar power
|
10mW
|
|
|
|||
|
Antenna angle
|
8°
|
|
|
|||
|
Data transmission system
|
|
|
|
|||
|
Data transmission type
|
RS485/ RS232，4~20mA
|
|
|
|||
|
4G RTU
|
Integrated (optional)
|
|
|
|||
3 in 1 radar sensor
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
1. Its measure water speed in
0.03~20m/s
.
2. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
2. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
2. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
1. Its measure water level in 0-7 meters.
2. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
2. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
3. We can send the free server and software to see the real time data in the PC or Mobile.
4. It can set alarm in the software when the value is overrun.
Ultrasonic water level sensor
1. Its MAX measure range is 15 meters.
2. It has low price with stable data.
3. It can be 4-20mA output or RS485 output
4. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
5. We can send the free server and software to see the real time data in the PC or Mobile.
6. It can set alarm in the software when the value is overrun.
5. We can send the free server and software to see the real time data in the PC or Mobile.
6. It can set alarm in the software when the value is overrun.
1.It based on the s
tatic pressure principle and the MAX measure range can be 200 meters.
2.Its has very cheap price and stable performance.
3. It can be 4-20mA output or RS485 output
4. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
5. We can send the free server and software to see the real time data in the PC or Mobile.
6. It can set alarm in the software when the value is overrun.
4. It can integrate all kinds wireless modules including GPRS/4G/WIFI/LORA/LORAWAN.
5. We can send the free server and software to see the real time data in the PC or Mobile.
6. It can set alarm in the software when the value is overrun.
1. Send free configuration software which you can make the configuration in your PC.
Circular channel
Trapezoidal channel
All of the parameters can be set in the software.
Oval channel
We can also supply the remote set by the modbus protocol.
2. We can integrate the all kinds of wireless modules including the GPRS/4G/WIFI/LORA /LORAWAN modules for you and can send the data to your server by MODBUS protocol or Json format.
3.We can also supply the free server and the software if you use our wireless modules and you can see the real time data in the software in the PC or mobile end.
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this Radar Flowrate sensor?
A: It is
easy for using and can measure the water flowrate, water level, water level for the river o
pen channel and
Urban underground drainage pipe network
so on.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
It is regular power or solar power and the signal output including
RS485/ RS232，4~20mA.
Q: How can I collect data?
A: It can intergrated with our 4G RTU and it is o
ptional.
Q: Do you have the matched parameters set software?
A:Yes, we can supply the matahced software to set all kinds of measure parameters.
Q: Do you have the matched cloud server and software?
A:Yes, we can supply the matahced software and it is totally free , you can check the data in realtime and download the data from the software, but it need use our data collector and host.
A:Yes, we can supply the matahced software and it is totally free , you can check the data in realtime and download the data from the software, but it need use our data collector and host.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
