Quick Details
-
Brand Name:
-
worldsunlight
-
Model Number:
-
XL-AG
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Junction Box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
worldsunlight
-
Model Number:
-
XL-AG

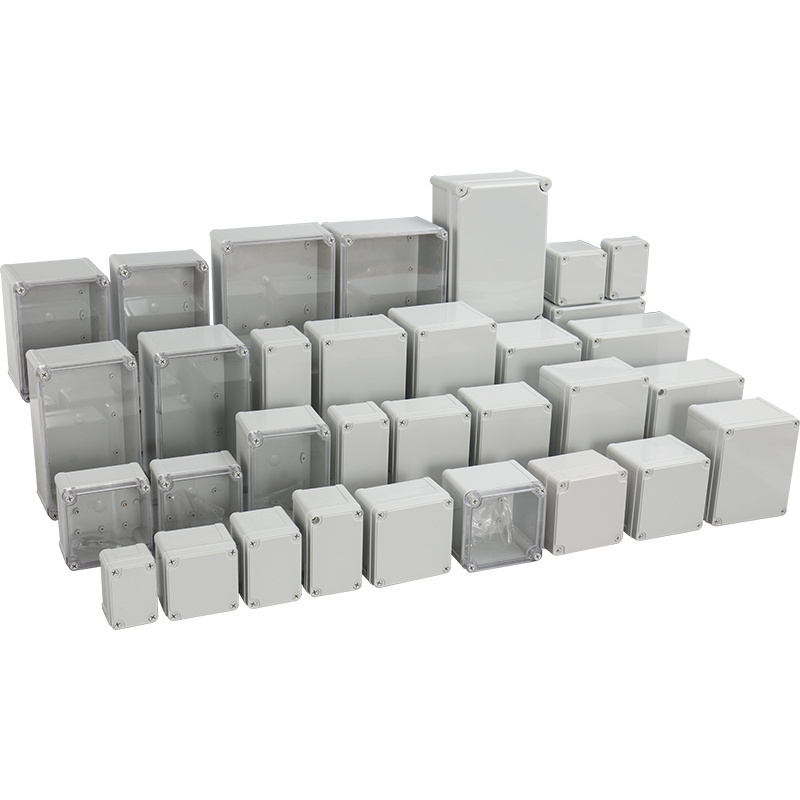

Product Description
Application
material
: ABS body PC cover
Material characteristics
: lmpact, heat, low temperature and chemical resistance,excellent electrical performance and surface gloss, etc.
Certificates
: CE
Protection grade
: IP65
Application
: Suitable for indoor and outdoor electric, communication, fire fightingapparatus, iron and steel smelting, petrochemical industry, electron, power system,railway, building, mine, air and sea port, hotel, ship, works, waste water treatmentequipment, environmental equipment and so on.
lnstallation
: 1,Inside: There are the installation holes in the base for circuit board ordin rail(More than 2 pcs of M4 brass nuts have been in each box).
2,Outside: The products can be directly fixed on the wall or other flatboards with screws or nails via the screw holes in the base.
Outlet hole
: Holes can be opened on the box as customers' requirements, andinstalling cable gland can bring with better waterproof performance.
Specification
|
Model Code(L×W×H)
|
G.W./N.W.
|
Qty/Carton
|
arton Dimenstion
|
Model Code (LxW×H)
|
G.W./N.W.
|
Qty/Carton
|
arton Dimenstion
|
|
XL-AG 65×50×55
|
21.5/20.0
|
300
|
51.5×40×31
|
XL-AG 200×150×100
|
17.5/16
|
32
|
61.5×46×42
|
|
XL-AG 80×80x70
|
|
100
|
56.5×41x29.5
|
XL-AG 200×150×130
|
13.6/12.1
|
24
|
61.5×46×42
|
|
XL-AG 95×65×55
|
16.3/14.8
|
150
|
49.5×41.5×31
|
XL-AG 200×200×95
|
15.1/13.6
|
24
|
61.5×46×42
|
|
XL-AG 100×100×75
|
18.6/17.1
|
90
|
61.5×39×32.5
|
XL-AG 200×200×130
|
13.3/11.8
|
18
|
61.5×46×42
|
|
XL-AG 110×80×45
|
18.6/17.1
|
150
|
56.5x41×29.5
|
XL-AG 250×80×70
|
15.7/14.2
|
50
|
51.5×41×37
|
|
XL-AG 110×80×70
|
16.6/15.1
|
100
|
56.5×41×29.5
|
XL-AG 250×80×85
|
15.4/13.9
|
40
|
51.5×41×37
|
|
XL-AG 110×80×85
|
19.7/18.2
|
100
|
57×33.5×45
|
XL-AG 250×150×100
|
17.5/16
|
32
|
61.5×51×42
|
|
XL-AG 125×125×75
|
19.7/18.2
|
72
|
61.5×39x40
|
XL-AG 250×150×130
|
14/12.5
|
24
|
61.5×51×42
|
|
XL-AG 125×125×100
|
17.6/16.1
|
54
|
61.5×39x40
|
XL-AG 280×190×130
|
8.8/7.3
|
16
|
58.5×55×41
|
|
XL-AG 130×80x70
|
13.5/12
|
72
|
49.5×41.5×31
|
XL-AG 280×190×180
|
14.5/13.0
|
12
|
58.5×55×41
|
|
XL-AG 130×80×85
|
22.5/21
|
105
|
61.5×46×42
|
XL-AG 280×280×130
|
11.1/9.6
|
8
|
57.5×55×30
|
|
XL-AG 160×80×55
|
14.5/13
|
75
|
49.5×41.5×31
|
XL-AG 280×280×180
|
9.6/8.1
|
6
|
57.5×55×30
|
|
XL-AG 160×80x95
|
12/10.5
|
45
|
49.5×41.5×31
|
XL-AG 340×280×130
|
12.3/10.8
|
8
|
57.5×55×36
|
|
XL-AG 170×140×95
|
17.2/15.7
|
48
|
58.5×55×41
|
XL-AG 340×280×180
|
11.1/9.6
|
6
|
57.5×55×36
|
|
XL-AG 175×125×75
|
19.1/17.6
|
56
|
54×51×36.5
|
XL-AG 380×190×130
|
15.6/14.1
|
12
|
58.5×55×41
|
|
XL-AG 175×125×100
|
12.6/11.1
|
32
|
51.5×41×37
|
XL-AG 380×190×180
|
18/16.5
|
9
|
58.5×55×41
|
|
XL-AG 175×175×100
|
14.4/12.9
|
30
|
54 ×51×36.5
|
XL-AG 380×280×130
|
12.6/11.1
|
8
|
58.5×55×41
|
|
XL-AG 180×80×70
|
14.1/12.6
|
60
|
56.5×41×29.5
|
XL-AG 380×280×180
|
11.3/9.8
|
6
|
58.5×55×41
|
|
XL-AG 200×150×75
|
|
30
|
61.5×39×32.5
|
|
|
|
|
